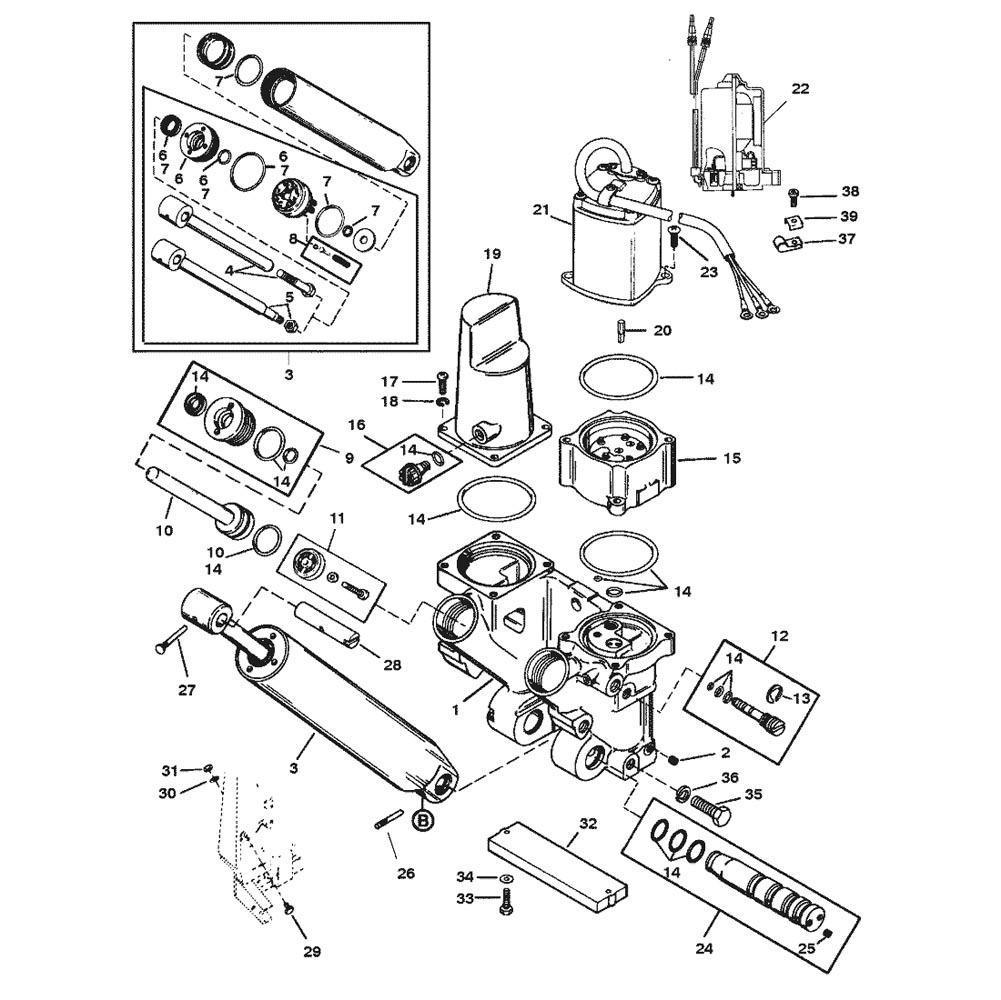

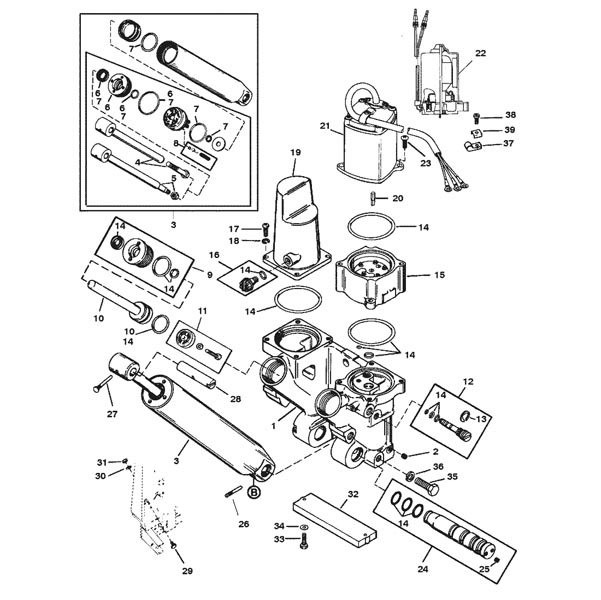

| Note: Bolt Type Piston Rod is Stamped with a "B" as Shown on Illustration. |
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
826729A10 |
|
|
|
|
POWER TRIM ASSEMBLY |
1 |
818186A6 |
|
| - |
855998A11 |
|
|
|
|
POWER TRIM ASSEMBLY |
1 |
826729A2 |
|
| 1 |
811604F |
|
|
|
|
MANIFOLD ASSEMBLY |
1 |
|
No Longer Available |
| 2 |
22-56800 |
|
|
|
|
PIPE PLUG |
9 |
|
|
| 3 |
8M0078330 |
|
|
|
|
TILT CYLINDER ASSEMBLY |
1 |
823552F |
|
| 4 |
811608 |
|
|
|
|
PISTON ROD |
1 |
|
No Longer Available |
| 5 |
823553T |
|
|
|
|
PISTON ROD (NUT TYPE) |
1 |
823553 |
No Longer Available |
| 6 |
878239A02 |
|
|
|
|
GUIDE KIT |
1 |
811606 |
No Longer Available |
| 7 |
811607A1 |
|
|
|
|
REPAIR KIT |
1 |
|
|
| 8 |
811610A1 |
|
|
|
|
CHECK VALVE KIT |
1 |
|
No Longer Available |
| 9 |
8M0021648 |
|
|
|
|
GUIDE ASSEMBLY |
2 |
99638A1 |
|
| 10 |
878413A1 |
|
|
|
|
PISTON AND ROD ASSEMBLY (PORT) |
1 |
43397A6 |
|
| 10 |
878414T01 |
|
|
|
|
PISTON AND ROD ASSEMBLY (STARBOARD) |
1 |
43398A3 |
|
| 11 |
35-12184A1 |
|
|
|
|
TRIM FILTER ASSEMBLY |
1 |
|
No Longer Available |
| 12 |
893929A01 |
|
|
|
|
VALVE ASSEMBLY |
1 |
813442A2 |
|
| 13 |
53-815949001 |
|
|
|
|
E-RING |
1 |
812844 |
|
| 14 |
811612A3 |
|
|
|
|
O-RING KIT |
1 |
811612A2 |
|
| 15 |
811617T1 |
|
|
|
|
PUMP |
1 |
811617F |
|
| 16 |
19-811613 |
|
|
|
|
PLUG ASSEMBLY |
1 |
|
|
| 17 |
10-4000327 |
|
|
|
|
SCREW |
4 |
|
|
| 18 |
12-4002315 |
|
|
|
|
WASHER |
4 |
43450 |
|
| 19 |
811611 |
|
|
|
|
COVER |
1 |
|
No Longer Available |
| 20 |
811619 |
|
|
|
|
DRIVE SHAFT |
1 |
|
No Longer Available |
| 21 |
878265A6 |
|
|
|
|
TRIM MOTOR (SEE B/D ON PAGE 72) |
1 |
811628 |
No Longer Available |
| 20 |
828710 |
|
|
|
|
DRIVE SHAFT |
1 |
|
No Longer Available |
| 22 |
878265A4 |
|
|
|
|
TRIM MOTOR (SEE B/D ON PAGE 72) |
1 |
828708 |
No Longer Available |
| 23 |
10-811615 |
|
|
|
|
SCREW (LONG) |
2 |
|
No Longer Available |
| 23 |
10-881768A1 |
|
|
|
|
SCREW (LONG) |
2 |
828709 |
|
| 23 |
10-811616 |
|
|
|
|
SCREW (SHORT) |
2 |
|
No Longer Available |
| 24 |
878241A03 |
|
|
|
|
SHAFT ASSEMBLY |
1 |
811614 |
|
| 25 |
22-56800 |
|
|
|
|
PLUG PIPE |
2 |
|
|
| 26 |
17-878267 |
|
|
|
|
GROOVE PIN |
1 |
44431 |
|
| 27 |
17-821539 |
|
|
|
|
GROOVE PIN |
1 |
|
|
| 28 |
99625002 |
|
|
|
|
SHAFT |
1 |
996251 |
|
| 29 |
8M0045383 |
|
|
|
|
STRIKER PLATE |
2 |
996301 |
|
| 30 |
13-58643 |
|
|
|
|
LOCKWASHER |
2 |
|
|
| 31 |
11-46335 |
|
|
|
|
NUT |
2 |
|
|
| 32 |
818298Q1 |
|
|
|
|
ANODE ASSEMBLY |
1 |
818298A1 |
|
| 33 |
10-4000330 |
|
|
|
|
SCREW |
2 |
|
|
| 34 |
12-29245 |
|
|
|
|
WASHER |
2 |
|
|
| 35 |
10-4000377 |
|
|
|
|
SCREW-MANIFOLD |
6 |
|
|
| 36 |
12-4002319 |
|
|
|
|
WASHER-MANIFOLD SCREW |
6 |
|
|
| 37 |
54-22875 |
|
|
|
|
CLIP-PUMP WIRE |
2 |
|
|
| 37 |
54-26550 |
|
|
|
|
CLIP-PUMP WIRE |
2 |
|
|
| 38 |
10-878607 |
|
|
|
|
SCREW |
2 |
817626 |
|
| 39 |
8M0084613 |
|
|
|
|
C-WASHER |
2 |
69205 |
|
