5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Cylinder Block And Camshaft (5.7L Alpha

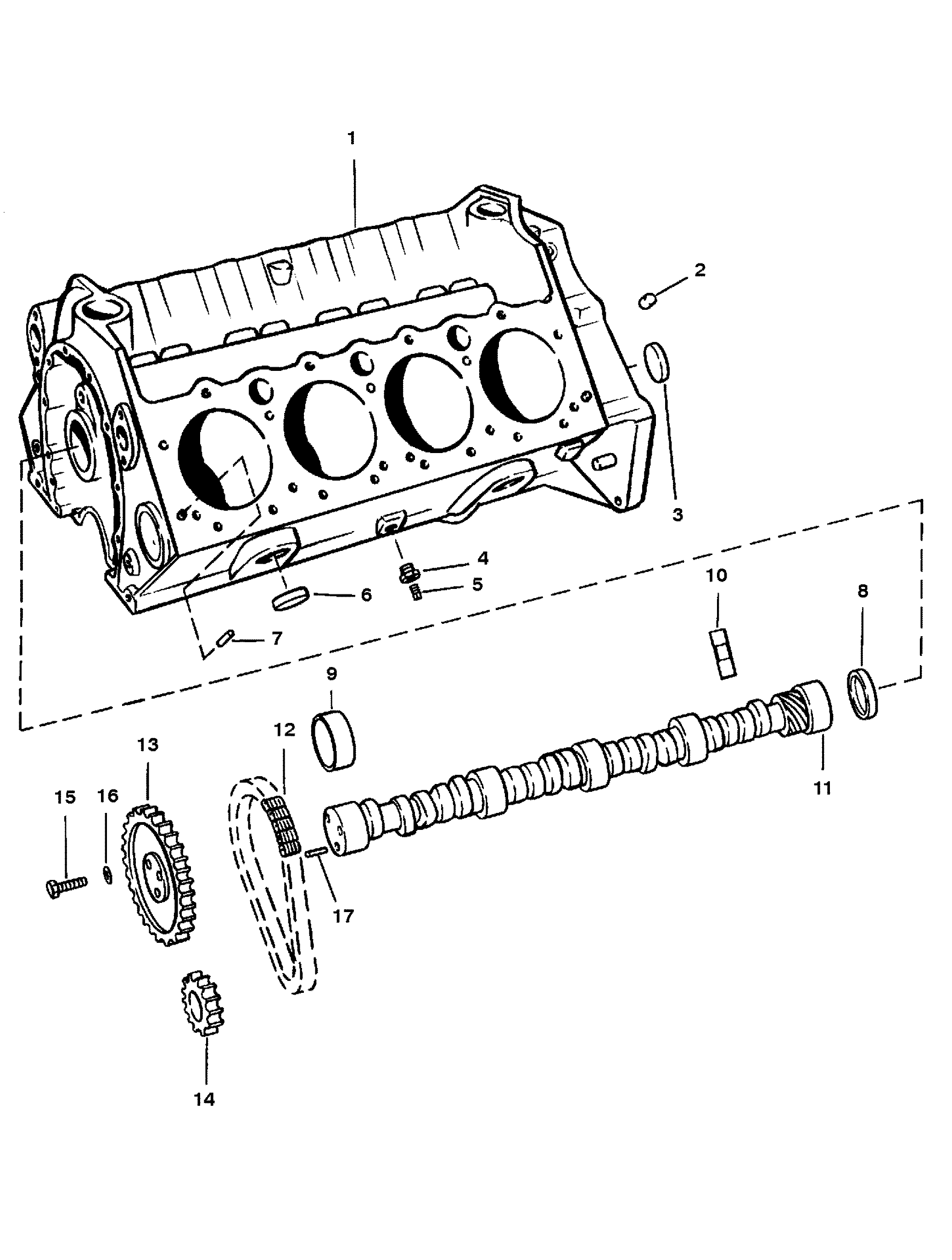

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | NSS | NOT SOLD SEPARATE, CYLINDER BLOCK | 1 | This Part is not sold separately (ORDER LONG BLOCK 807315A1) 1,2,3,4 | |||||
| 2 | 22-48340 | PIPE PLUG (1/4") | 3 | ||||||
| 3 | 19-816565 | EXPANSION PLUG (15/32") | 5 | ||||||
| 4 | 22-48556 | BUSHING | 2 | ||||||
| 5 | 22-328022 | PIPE PLUG | 2 | 22-328021 | |||||
| 6 | 19-34270 | EXPANSION PLUG (1-5/8" DIA.) | 8 | ||||||
| 7 | 17-35465 | DOWEL PIN (5/16" DIA.) | 4 | ||||||
| 8 | 22-72640 | PLUG | 1 | ||||||
| 9 | 23-85674 | BEARING UNIT (SET) | 1 | ||||||
| 10 | 72638 | LIFTER | 16 | ||||||
| 11 | 431-5943 | CAMSHAFT | 1 | ||||||
| 12 | 17161T | CHAIN | 1 | 17161 | |||||
| 13 | 43-17159 | SPROCKET | 1 | This Part is No Longer Available | |||||
| 14 | 43-17160 | SPROCKET | 1 | ||||||
| 15 | 10-845942 | BOLT (3/4") | 3 | 10-35339 | |||||
| 16 | 12-848136 | WASHER | 3 | ||||||
| 17 | 17-843378 | PIN | 1 | 17-35312 | |||||
| - | 883944R5 | MARINE LONG BLOCK ENGINE (2 BBL TBI) | 1 | 807315A1 | |||||
| - | 92-809825 | SEALER-RED RTV (WHERE APPLICABLE) | 1 | ||||||
| - | 34227Q02 | PERFECT SEAL (WHERE APPLICABLE) | 1 | 92-342271 |
