5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Mercathode Components

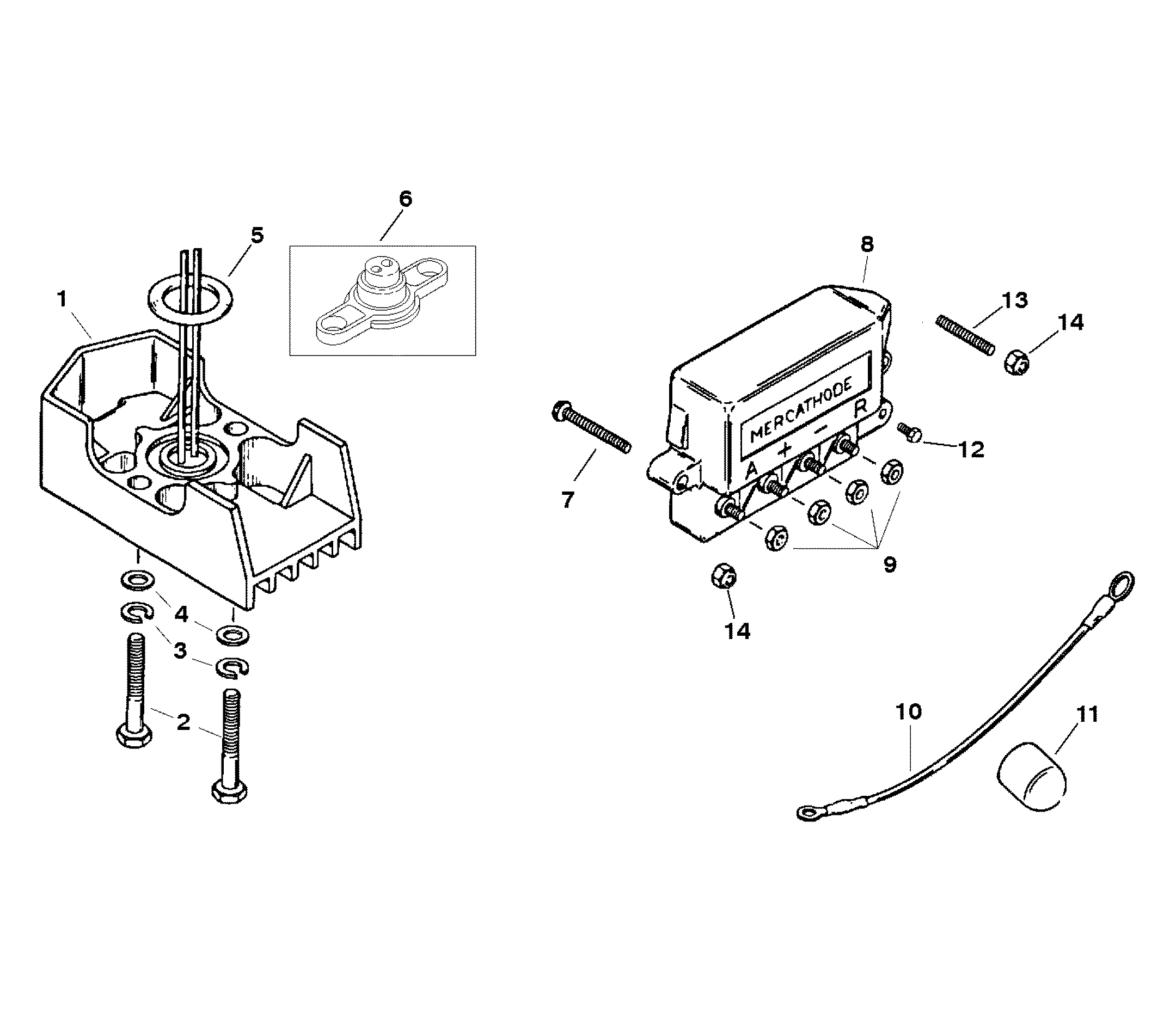

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A11 | |||||
| 2 | 10-69067 | SCREW | 2 | ||||||
| 3 | 13-26992 | LOCKWASHER | 2 | ||||||
| 4 | 12-29245 | WASHER | 2 | ||||||
| 5 | 25-88388 | O-RING | 1 | (DESIGN I) | |||||
| 6 | 25-805294 | GROMMET | 1 | (DESIGN II) | |||||
| 7 | 10-72202 | 700-22312 | SCREW (1-1/4 IN.) | 1 | |||||
| 7 | 10-805565 | SCREW (3/4 IN.) | 1 | ||||||
| 8 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 9 | 11-68219 | NUT | 4 | ||||||
| 10 | 84-88543A3 | WIRE ASSEMBLY | 1 | ||||||
| 11 | 44574T | PLASTIC CAP | 2 | 44574 | |||||
| 12 | 10-62568 | SCREW | 1 | ||||||
| 13 | 16-805459 | STUD | 1 | ||||||
| 14 | 11-46438 | NUT | 2 |
