5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Intake Manifold And Front Cover

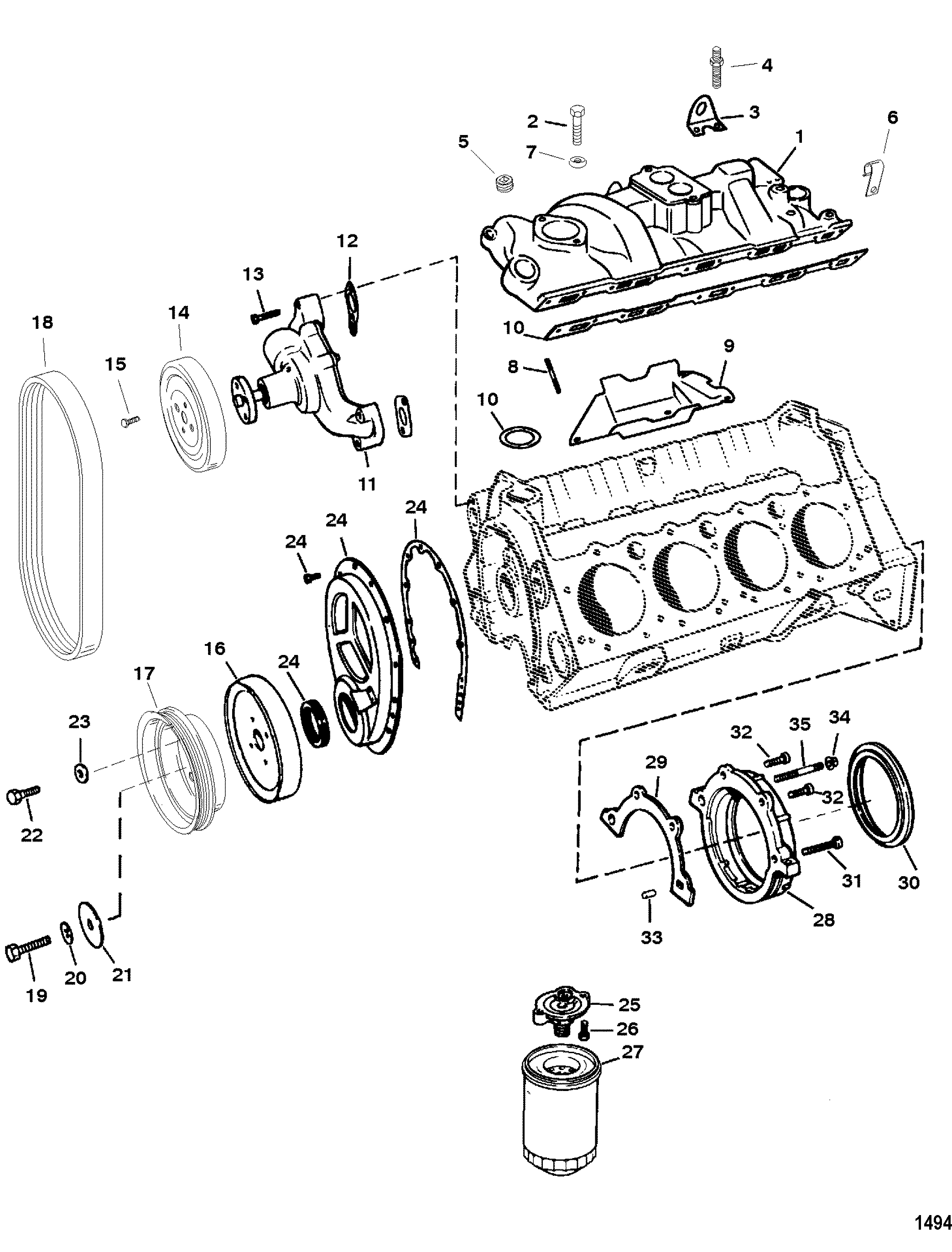

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17619         INTAKE MANIFOLD 1   This Part is No Longer Available (2 BARREL)
1 17620         INTAKE MANIFOLD 1   This Part is No Longer Available (4 BARREL - HI-RISE)
2 10-11976         BOLT 9

2 10-802655         BOLT 3 10-11975
3 54-47512         LIFTING EYE 1

4 NSS         STUD (GM#3959544) 4
This Part is not sold separately 1
5 22-48358T         PLUG-INTAKE (3/8 IN.) 1 22-48358
6 54-73668         J-CLIP 1

7 12-46132         WASHER 1

8 NSS         STUD (GM #10229247) 4
This Part is not sold separately
9 72647         GUARD 1   This Part is No Longer Available
10 27-17145   676-9-61200 700-30860   GASKET SET 1
(Use RTV Silicone Sealant for end gasket - See Service Manual) 5
11 8503991         WATER PUMP ASSEMBLY 1 811841
12 27-34897   676-9-60065 700-31380   GASKET 2
5
13 10-32132         SCREW (1-3/4") 2

13 10-47688         SCREW (2-3/4") 1

13 10-52200         SCREW (1-1/2") 1
No longer made, limited availability
14 19692T01         PULLEY (7" DIA.) 1 19692T
15 10-47277         SCREW 4

16 809892T         HARMONIC BALANCER 1 809892
17 90081A1         PULLEY 1

18 57-48120Q1         V-BELT 1 57-48120A1
19 10-32515         BOLT 1

20 13-39131         LOCKWASHER 1

21 35332001         WASHER 1 12-35332
22 10-53833         BOLT 3

23         WASHER 3

24 835005         TIMING COVER 1
(SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY)
25 71920         FILTER VALVE 1 53338 W/O REMOTE OIL FILTER
26 10-54786         SCREW 2
W/O REMOTE OIL FILTER
27 35-866340Q03   676-9-57825     OIL FILTER 1 14957 W/O REMOTE OIL FILTER
28 14239         RETAINER (REAR) 1

29 27-881715   676-9-61511     GASKET 1 27-14241 5
30 26-14240     700-85790   OIL SEAL (REAR) 1
5
31 10-8M0064241         BOLT 1 10-14243
32 10-14242         BOLT 2

33 17-14263         DOWEL PIN 1

34 11-8167301         NUT 1 11-816730
35 16-14827         STUD 1

- 27-806871A96     700-39018   GASKET SET-OVERHAUL 1
