5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Fuel Pump And Fuel Filter

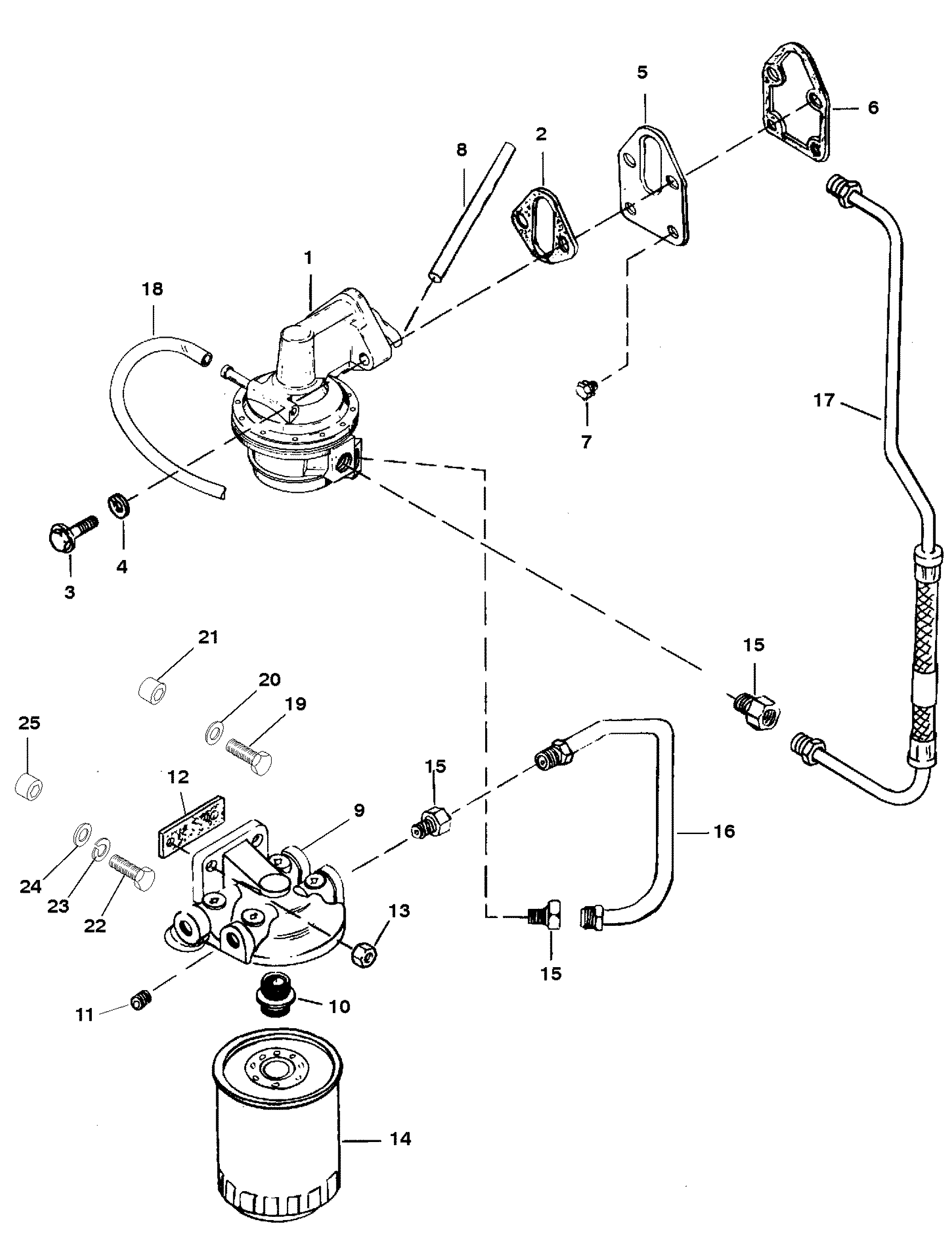

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0058164 | FUEL PUMP | 1 | 97401A8 | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET | 1 | 5 | |||
| 3 | 10-34354 | SCREW (1-1/2") | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER | 2 | ||||||
| 5 | 35373 | MOUNTING PLATE | 1 | ||||||
| 6 | 27-34898 | 676-9-61042 | 700-32750 | GASKET | 1 | 5 | |||
| 7 | 10-35366 | SCREW | 2 | ||||||
| 8 | 35377 | PUSH ROD | 1 | 5.7L ALPHA/BRAVO | |||||
| 8 | 821150 | PUSH ROD | 1 | This Part is No Longer Available 5.7LX ALPHA/BRAVO No longer made, limited availability | |||||
| 9 | 89876A3 | BASE ASSEMBLY | 1 | ||||||
| 10 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 11 | 22-32561 | PIPE PLUG | 3 | ||||||
| 12 | 88641 | MOUNTING BRACKET | 1 | ||||||
| 13 | 11-82670911 | NUT | 2 | 11-35814 | |||||
| 14 | 35-802893Q01 | FUEL FILTER/WATER SEPARATOR | 1 | 35-807172 | |||||
| 15 | 22-33821 | CONNECTOR | 3 | ||||||
| 16 | 32-97326T | FUEL LINE | 1 | ||||||
| 17 | 32-806641T | FUEL LINE | 1 | This Part is No Longer Available | |||||
| 18 | 32-7381567 | HOSE | 1 | ||||||
| 19 | 10-37612 | SCREW | 1 | ||||||
| 20 | 13-35048 | LOCKWASHER | 1 | ||||||
| 21 | 23-91034 | SPACER | 1 | No longer made, limited availability | |||||
| 22 | 10-26486 | SCREW | 1 | ||||||
| 23 | 13-35048 | LOCKWASHER | 1 | ||||||
| 24 | 12-20553 | WASHER | 1 | ||||||
| 25 | 23-15895 | SPACER | 1 | No longer made, limited availability | |||||
| - | 27-806871A96 | GASKET SET-OVERHAUL | 1 |
