5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)

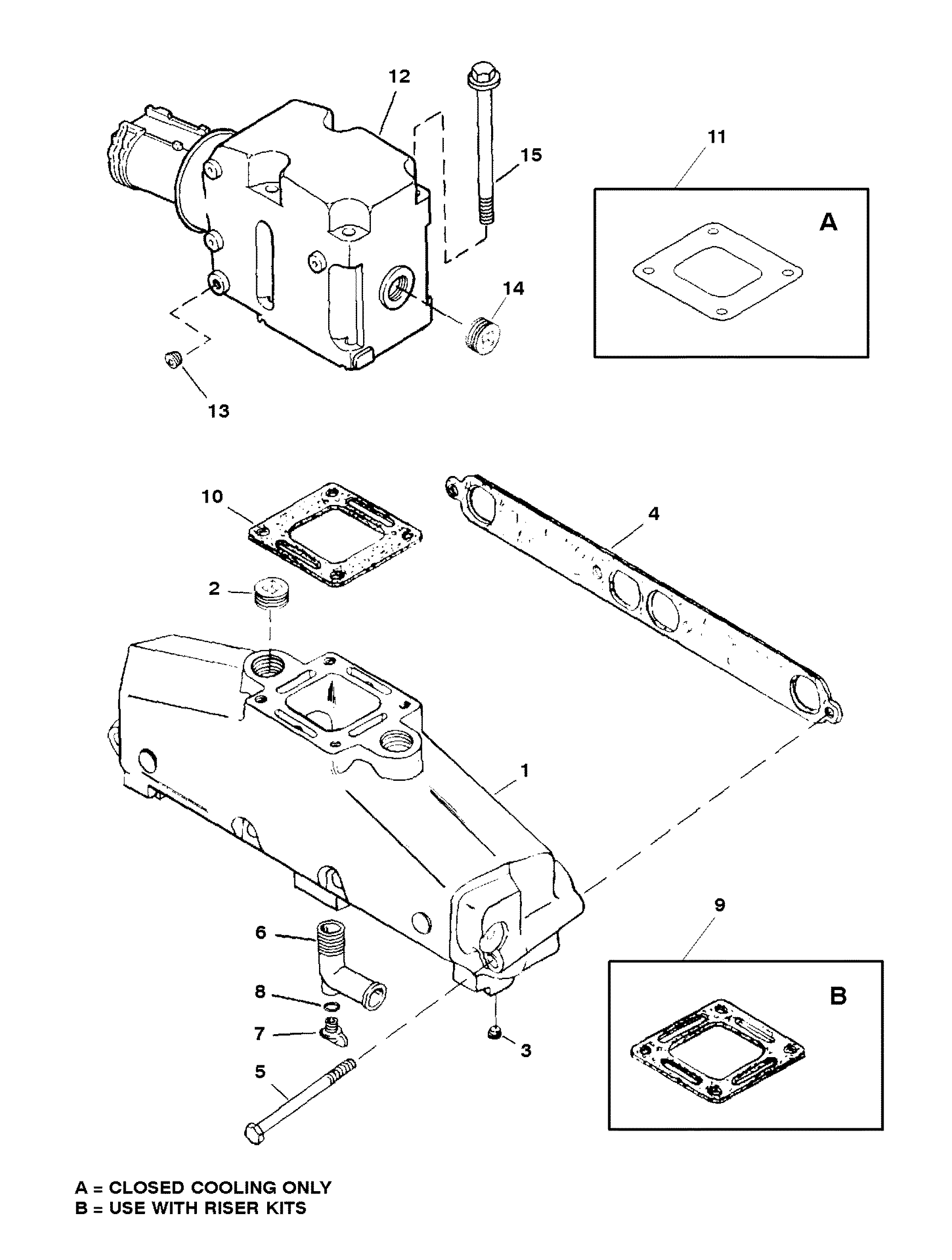

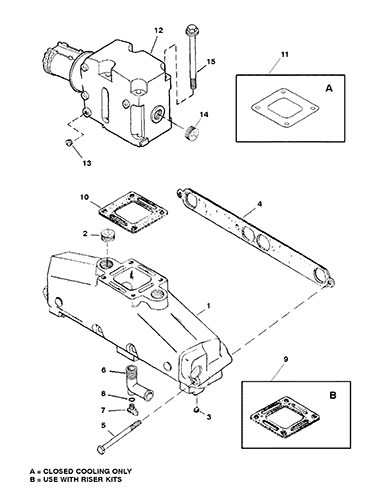

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15



EXHAUST MANIFOLD ASSEMBLY 2 87114A19
2 22-41622
676-9-41205 700-21892
PLUG AR 22-33198A1 6
3 22-36382

700-21887
PIPE PLUG 4

4 27-33395



GASKET 2
5
5 10-53728



SCREW (4-5/8") 8

6 22-862210A01
676-9-41206 700-13991
DRAIN ELBOW 2 22-806926A1
7 22-806608A02



DRAIN PLUG 2 22-806608A1
8 25-32509



QUAD RING 2 25-806609
9 27-863726



GASKET 2 27-818832 (USE WITH RISER KITS)
10 27-863724



GASKET 2 27-41813 (STANDARD COOLING) 5
11 27-8637251



GASKET 2 27-41811 (CLOSED COOLING) 5
12 807988A03



EXHAUST ELBOW ASSEMBLY (7 DEG.) 2 807914A1
13 22-36382

700-21887
PIPE PLUG 2

14 22-41622
676-9-41205 700-21892
PLUG 2 22-33198A1
15 10-43749



SCREW (5-3/4") 8

- 807476A7



RISER EXTENSION KIT (3") 1 93320A7 EACH KIT CONTAINS 2 RISERS.
- 807477A5



RISER EXTENSION KIT (6") 1 93322A5 EACH KIT CONTAINS 2 RISERS.
- 27-806871A96



GASKET SET-OVERHAUL 1
