5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Vapor Separator Tank And Fuel Lines

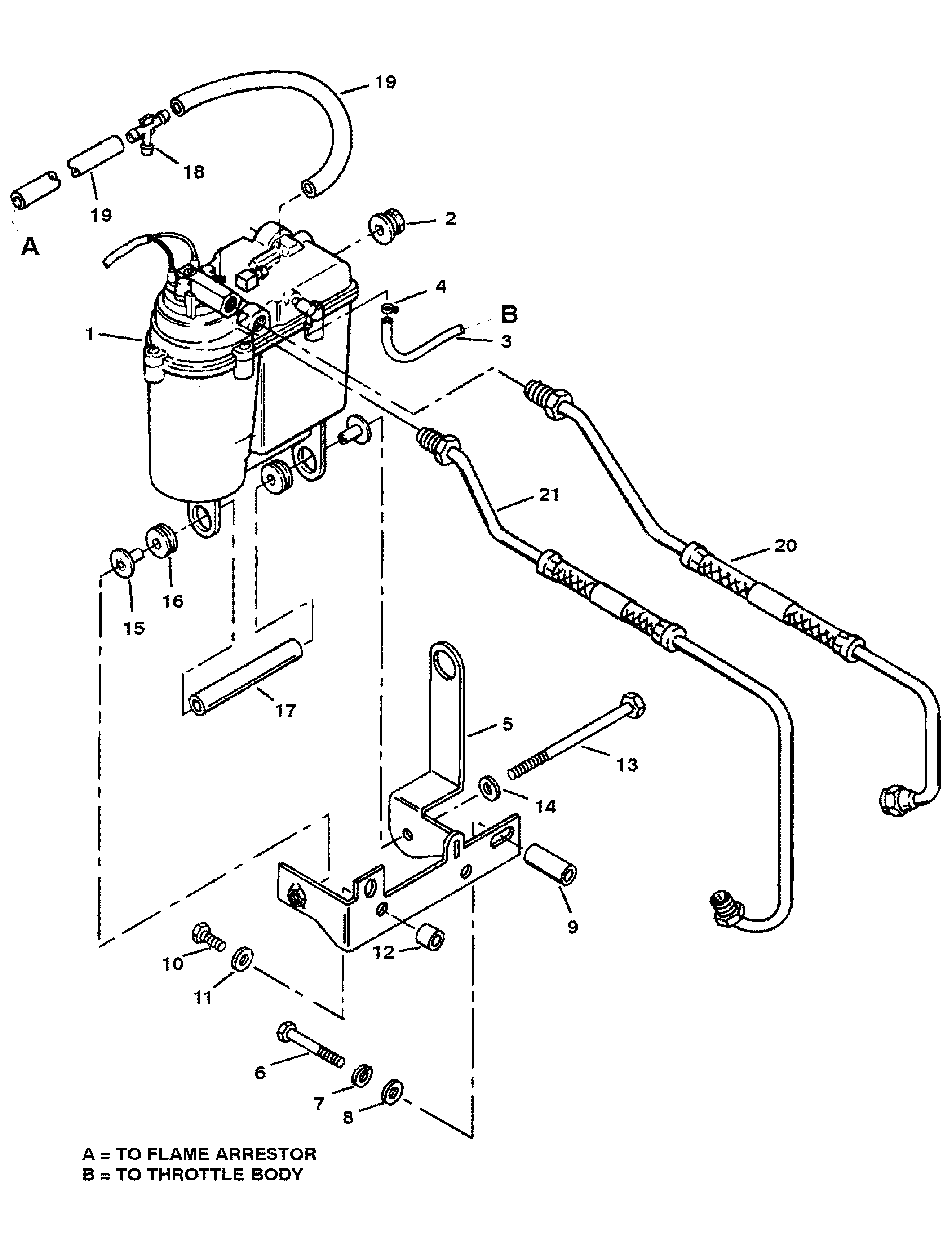

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806643A5 | VAPOR SEPARATOR TANK | 1 | This Part is No Longer Available | |||||
| 2 | 25-880331 | GROMMET | 1 | This Part is No Longer Available | |||||
| 3 | 32-80568932 | VENT HOSE | 1 | This Part is No Longer Available | |||||
| 4 | 54-815504105 | CLAMP | 2 | ||||||
| 5 | 806645T | BRACKET | 1 | This Part is No Longer Available | |||||
| 6 | 10-26486 | SCREW | 1 | ||||||
| 7 | 13-35048 | LOCKWASHER | 1 | ||||||
| 8 | 12-20553 | WASHER | 1 | ||||||
| 9 | 23-15895 | SPACER (1-7/16") | 1 | No longer made, limited availability | |||||
| 10 | 10-37612 | SCREW | 1 | ||||||
| 11 | 13-35048 | LOCKWASHER | 1 | ||||||
| 12 | 23-91034 | SPACER (1/2") | 1 | No longer made, limited availability | |||||
| 13 | 10-807056 | SCREW | 1 | This Part is No Longer Available | |||||
| 14 | 12-26825 | WASHER | 1 | ||||||
| 15 | 23-19064 | BUSHING | 2 | ||||||
| 16 | 25-88033 | GROMMET | 2 | ||||||
| 17 | 23-806648 | SPACER | 1 | This Part is No Longer Available | |||||
| 18 | 22-806689 | T-FITTING | 1 | ||||||
| 19 | 32-7381567 | TUBING | 2 | ||||||
| 20 | 32-807649T | FUEL LINE | 1 | This Part is No Longer Available (OUTLET) 5.7L ALPHA/BRAVO | |||||
| 21 | 32-807648T | FUEL LINE | 1 | This Part is No Longer Available (INLET) 5.7L ALPHA/BRAVO | |||||
| 20 | 32-806630T | FUEL LINE | 1 | This Part is No Longer Available (OUTLET) 5.7LX ALPHA/BRAVO | |||||
| 21 | 32-806700T | FUEL LINE | 1 | This Part is No Longer Available (INLET) 5.7LX ALPHA/BRAVO |
