5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Exhaust System

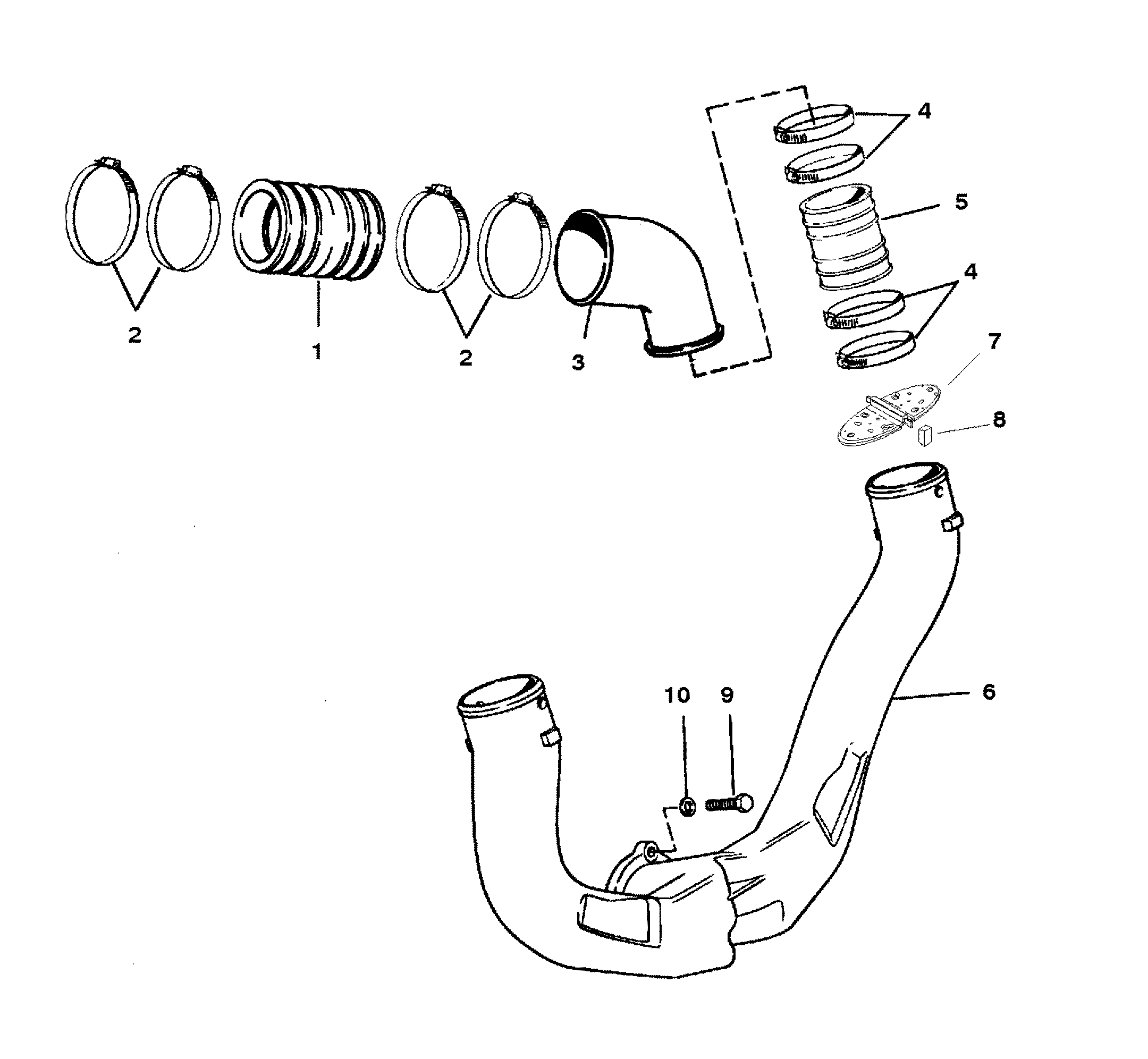

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-44348001 | TUBE | 2 | 32-44348T | |||||
| 2 | 54-815504372 | 700-01100 | CLAMP | 8 | |||||
| 3 | 11086T | EXHAUST ELBOW | 1 | (PORT) | |||||
| 3 | 14343T | EXHAUST ELBOW | 1 | (STANDARD) | |||||
| 4 | 54-815504372 | 700-01100 | CLAMP | 8 | |||||
| 5 | 32-14358001 | EXHAUST TUBE | 2 | 32-14358T | |||||
| 6 | 807130A4 | EXHAUST PIPE | 1 | ||||||
| 7 | 807166A1 | WATER SHUTTER | 2 | ||||||
| 8 | 25-807167 | GROMMET | 4 | ||||||
| 9 | 10-58640 | SCREW | 4 | ||||||
| 10 | 13-41471 | LOCKWASHER | 4 |
