5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Distributor And Ignition Components

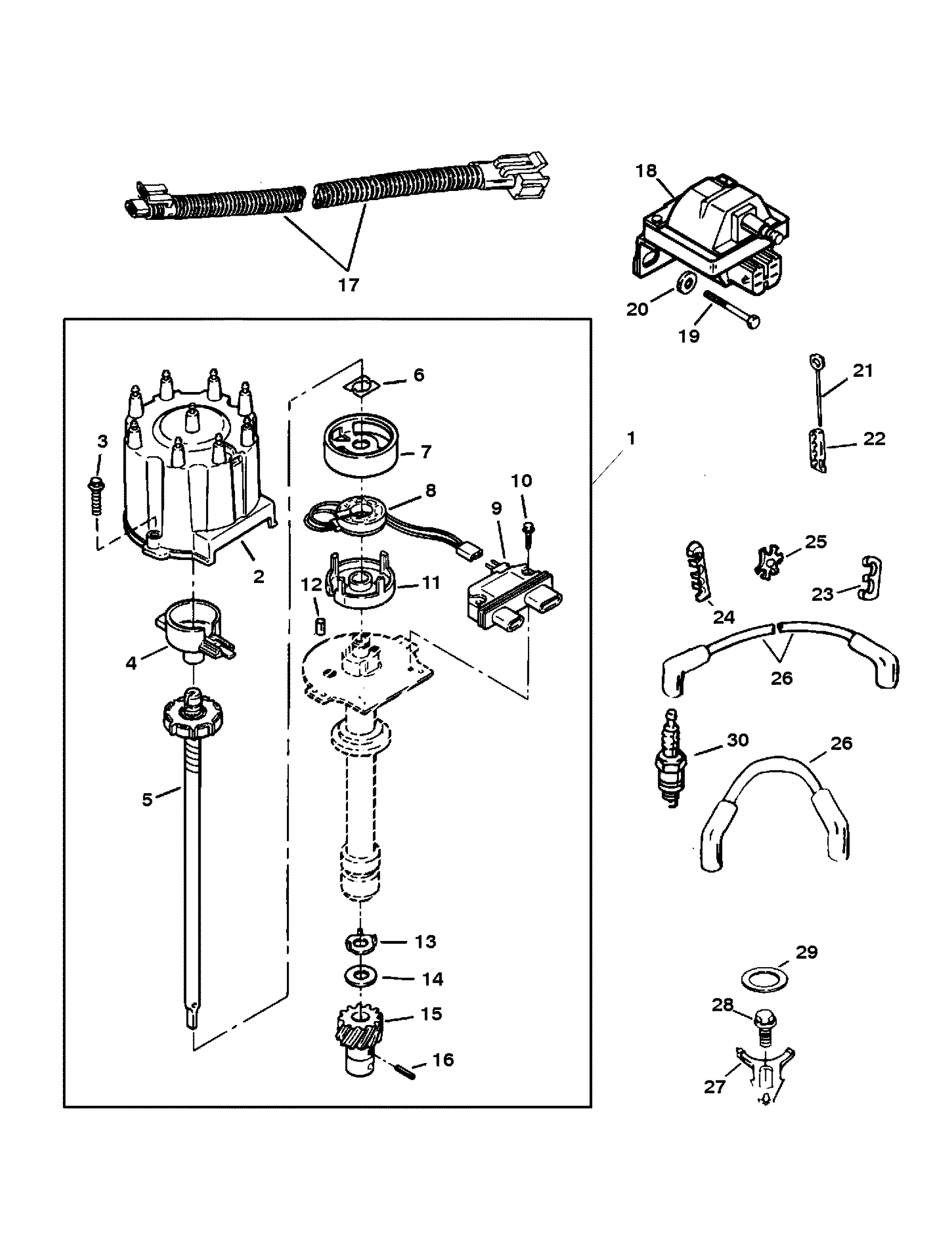

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805222A1         DISTRIBUTOR ASSEMBLY 1

2 808483T3         CAP 1 808483
3 10-808491         SCREW 2   This Part is No Longer Available
4 8M6001253         ROTOR 1 808484
5 808485T         SHAFT AND MAGNET 1 808485 This Part is No Longer Available
6 808487         RETAINER 1   This Part is No Longer Available
7 808486         SHIELD 1   This Part is No Longer Available
8 811639T         COIL 1 811639
9 811637001         MODULE 1 811637
10 10-811638         SCREW 2   This Part is No Longer Available
11 811641         POLE PIECE 1

12 17-808488         PIN 1   This Part is No Longer Available
13 12-46350         WASHER 1   This Part is No Longer Available
14 12-808489         WASHER 1

15 43-808490         DRIVE GEAR 1

16 17-34109         PIN 1   This Part is No Longer Available
17 84-817376T01         HARNESS 1 84-817376T
18 806673T1         IGNITION COIL 1 806673T
19 10-86750         SCREW 2

20 12-20084         WASHER 2

21 16-90096A1         STUD ASSEMBLY 2

22 54-72821         RETAINER 2

23 54676         RETAINER (2 WIRE) 2

24 32783         RETAINER (3 WIRE) 2

25 32784         RETAINER (4 WIRE) 2

26 84-816608Q70         SPARK PLUG WIRE KIT 1 84-816608A70
27 52185         CLAMP 1

28 10-805559         SCREW 1

29 27-344863         GASKET 1
5
30 33-898264001         SPARK PLUG 8 33-59571
- 27-806871A96         GASKET SET-OVERHAUL 1
