5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Engine Mounting
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)

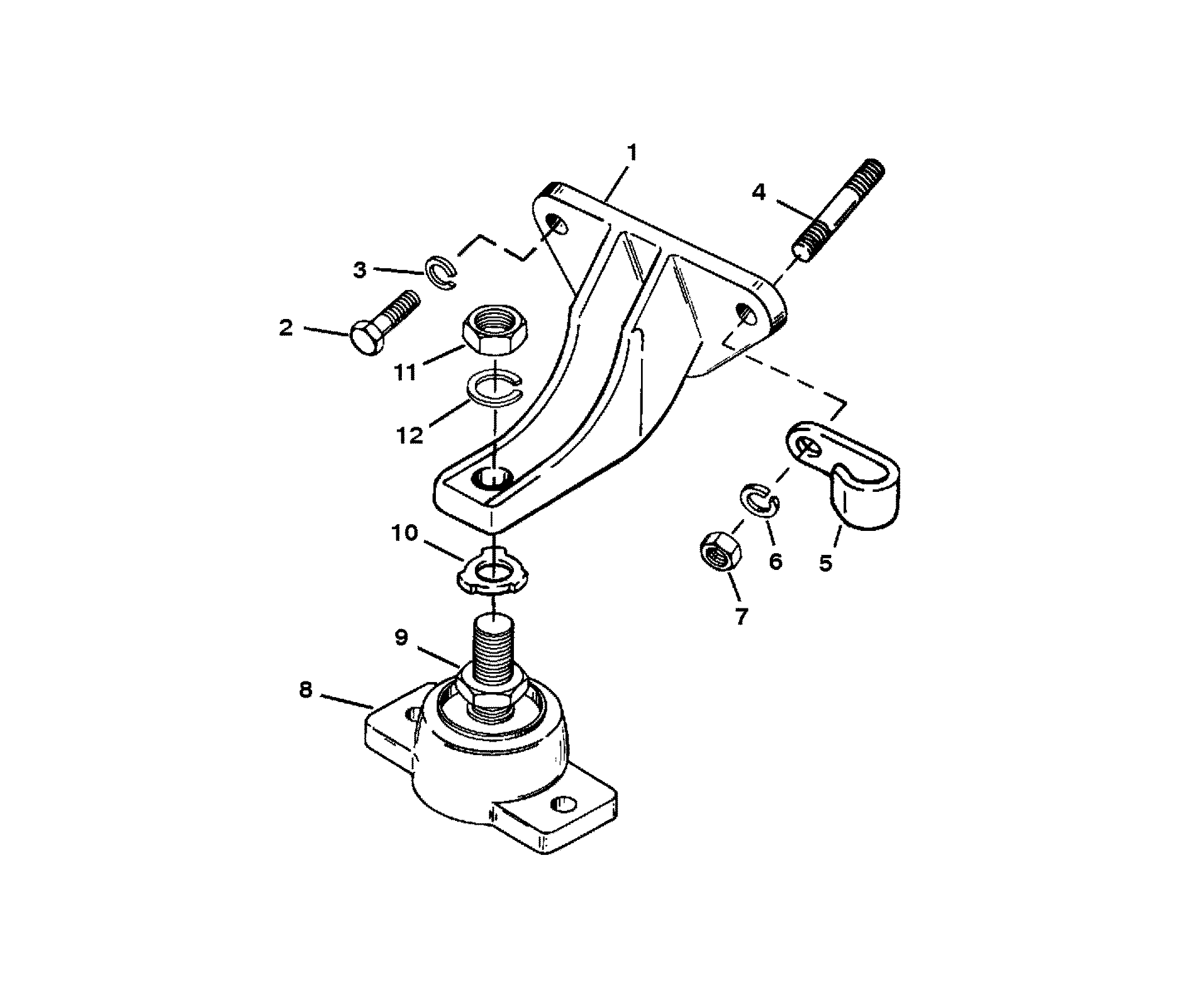

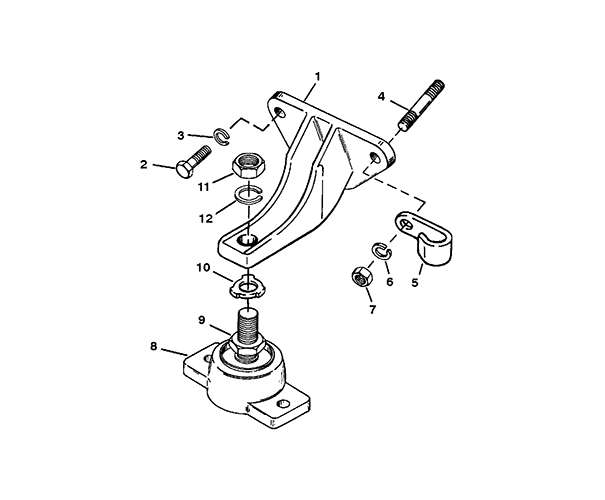

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 79550A1 | MOUNTING BRACKET | 2 | FRONT | |||||
2 | 10-68101 | SCREW | 3 | PORT | |||||
3 | 13-35048 | LOCKWASHER | 3 | PORT | |||||
2 | 10-68101 | SCREW | 2 | STARBOARD | |||||
3 | 13-35048 | LOCKWASHER | 2 | STARBOARD | |||||
4 | 16-64066 | STUD | 1 | STARBOARD | |||||
5 | 54-78945 | CLIP | 1 | STARBOARD | |||||
6 | 13-35048 | LOCKWASHER | 1 | STARBOARD | |||||
7 | 11-32219 | NUT | 1 | STARBOARD | |||||
8 | 66284A2 | BASE ASSEMBLY | 2 | ||||||
9 | 11-20739 | JAM NUT | 2 | ||||||
10 | 14-12657 | TAB WASHER | 2 | ||||||
11 | 11-20739 | NUT | 2 | ||||||
12 | 13-68102 | LOCKWASHER | 2 |
