5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Oil Pan And Oil Pump

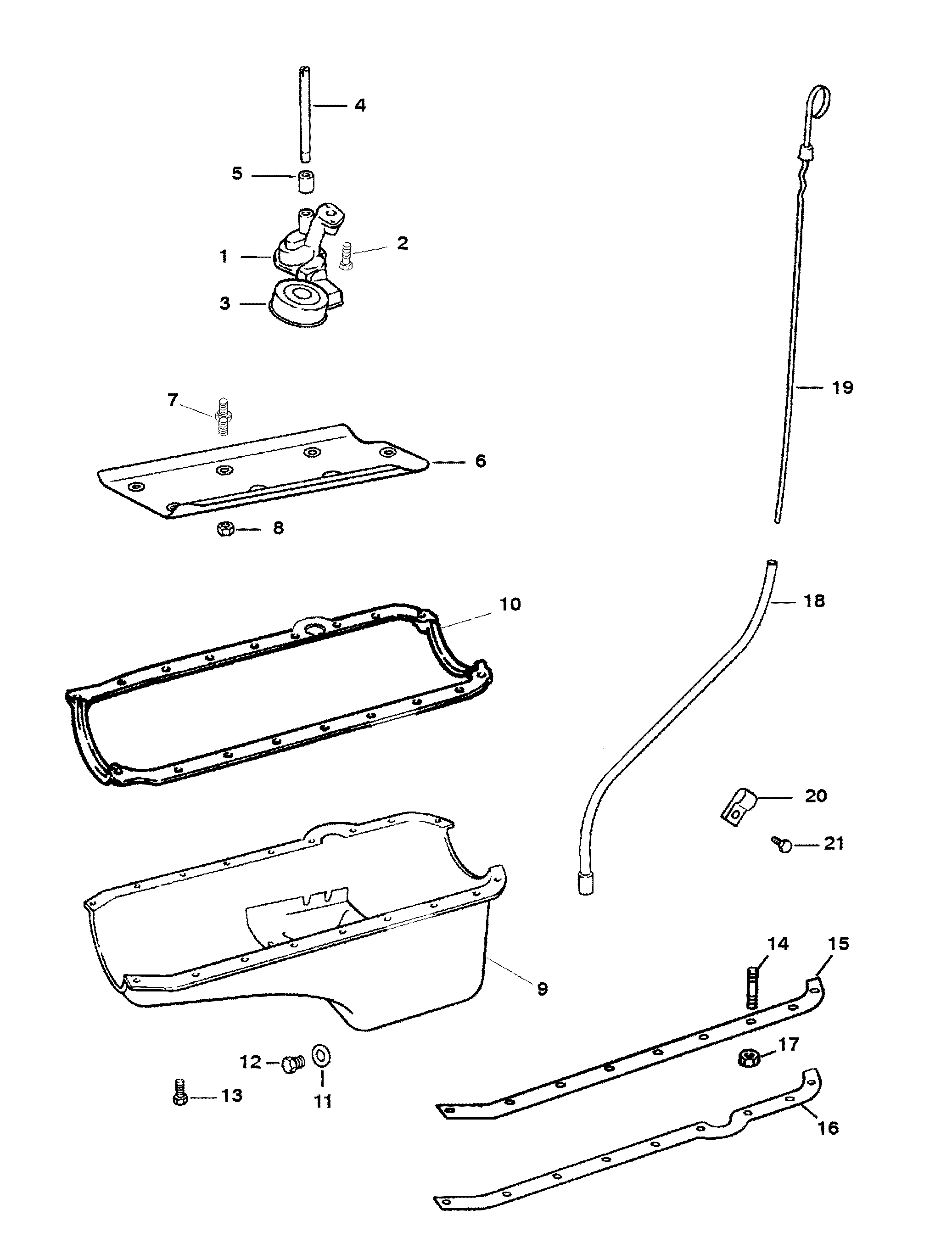

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809907002



OIL PUMP 1 809907
2 10-17346



BOLT 1

3 809909



SCREEN 1

4 36184



SHAFT 1

5 23-36183



RETAINER 1

6 986021



BAFFLE-CYLINDER BLOCK 1 98602
7 16-850090



STUD 5

8 11-845602



NUT 5 11-850091
9 809910



OIL PAN 1

10 27-138651
676-9-61504

GASKET 1
5
11 27-8M0077608



GASKET 1 27-49955 5
12 10-809911001



DRAIN SCREW 1 10-809911
13 10-14070



SCREW 14

14 16-11989



STUD 4

15 14257



REINFORCEMENT 1
(PORT)
16 14256



REINFORCEMENT 1
(STARBOARD)
17 11-11971



NUT 4

18 15296A2



TUBE 1

19 861942T7



DIPSTICK GAUGE 1 15297T
20 54-805625



CLIP 1
21 10-35366



SCREW 1
- 27-806871A96



GASKET SET-OVERHAUL 1
