500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Alternator Assembly (Mando AC-155603)

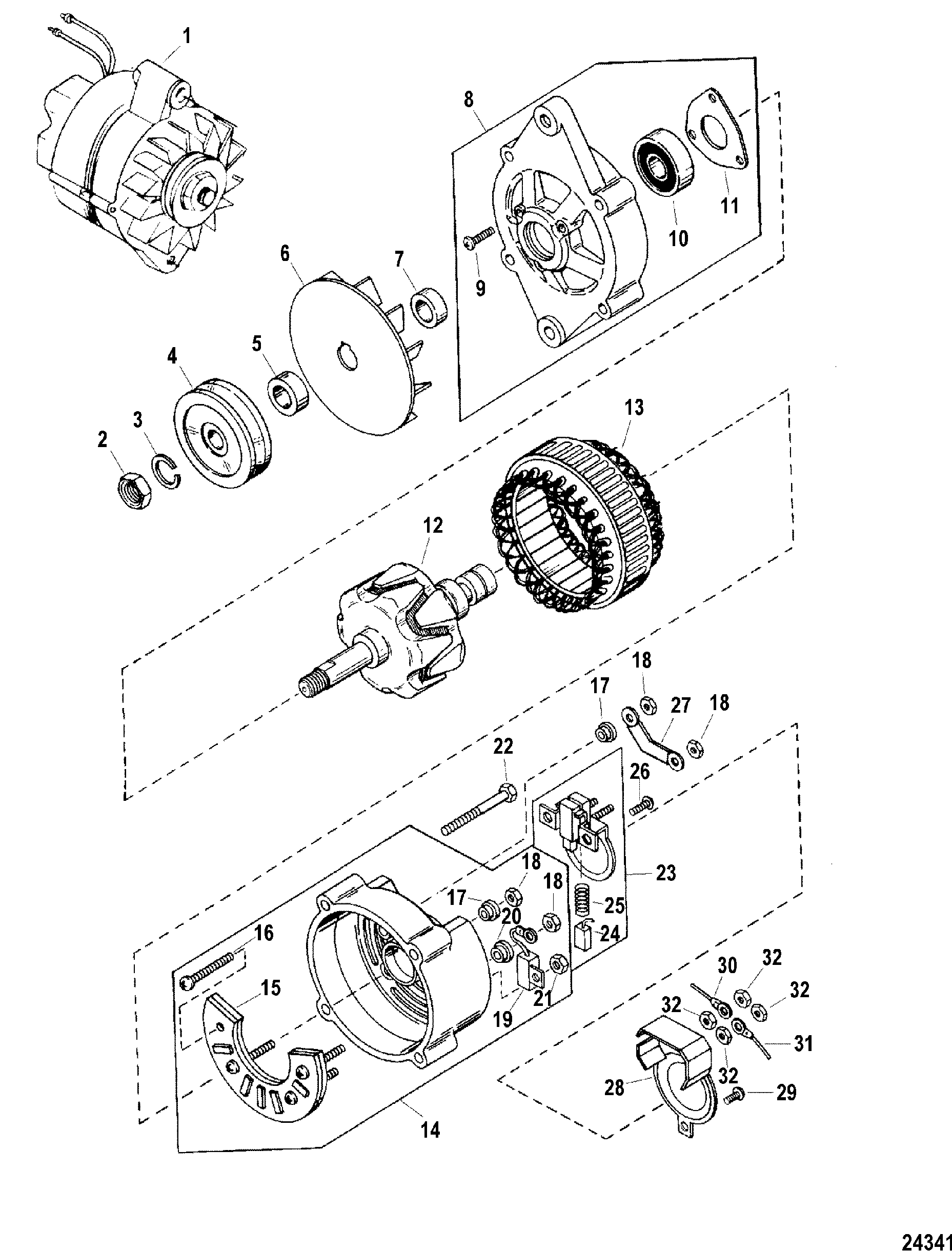

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8171191         ALTERNATOR ASSEMBLY, Blue 1

2 11-809136         NUT 1 11-42768
3 13-42769         LOCKWASHER 1

4 809134         PULLEY 1 42770
5 23-811865         SPACER 1

6 811866         FAN 1   This Part is No Longer Available
7 23-811867         SPACER 1   This Part is No Longer Available
8 811868         BRACKET ASSEMBLY, Front 1

9 10-811869         SCREW 3   This Part is No Longer Available
10 30-811870         BEARING, Ball 1

11 811871         RETAINER 1   This Part is No Longer Available
12 811872         ROTOR ASSEMBLY 1   This Part is No Longer Available
13 811873T         STATOR ASSEMBLY 1   This Part is No Longer Available
14 811874T         BRACKET ASSEMBLY, Rear 1

15 811875T         RECTIFIER ASSEMBLY 1

16 10-811876         SCREW 1   This Part is No Longer Available
17 811877         HOLD 2   This Part is No Longer Available
18 11-811878         NUT 4

19 811879         CONDENSER ASSEMBLY 1

20 811880         HOLD 1

21 11-811881         NUT 1

22 10-42773         THRU BOLT 4   This Part is No Longer Available
23 811883T         REGULATOR ASSEMBLY 1

24 811884         BRUSH 2

25 24-811885         SPRING, Brush 2   This Part is No Longer Available
26 10-811886         SET SCREW 2
No longer made, limited availability
27 811887         TERMINAL 1   This Part is No Longer Available
28 811888         COVER 1   This Part is No Longer Available
29 10-811889         SET SCREW 1   This Part is No Longer Available
30 84-811890         WIRE, Red, Lead 1   This Part is No Longer Available
31 84-811891         WIRE, Purple, Lead 1   This Part is No Longer Available
32 11-811878         NUT 4
