| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

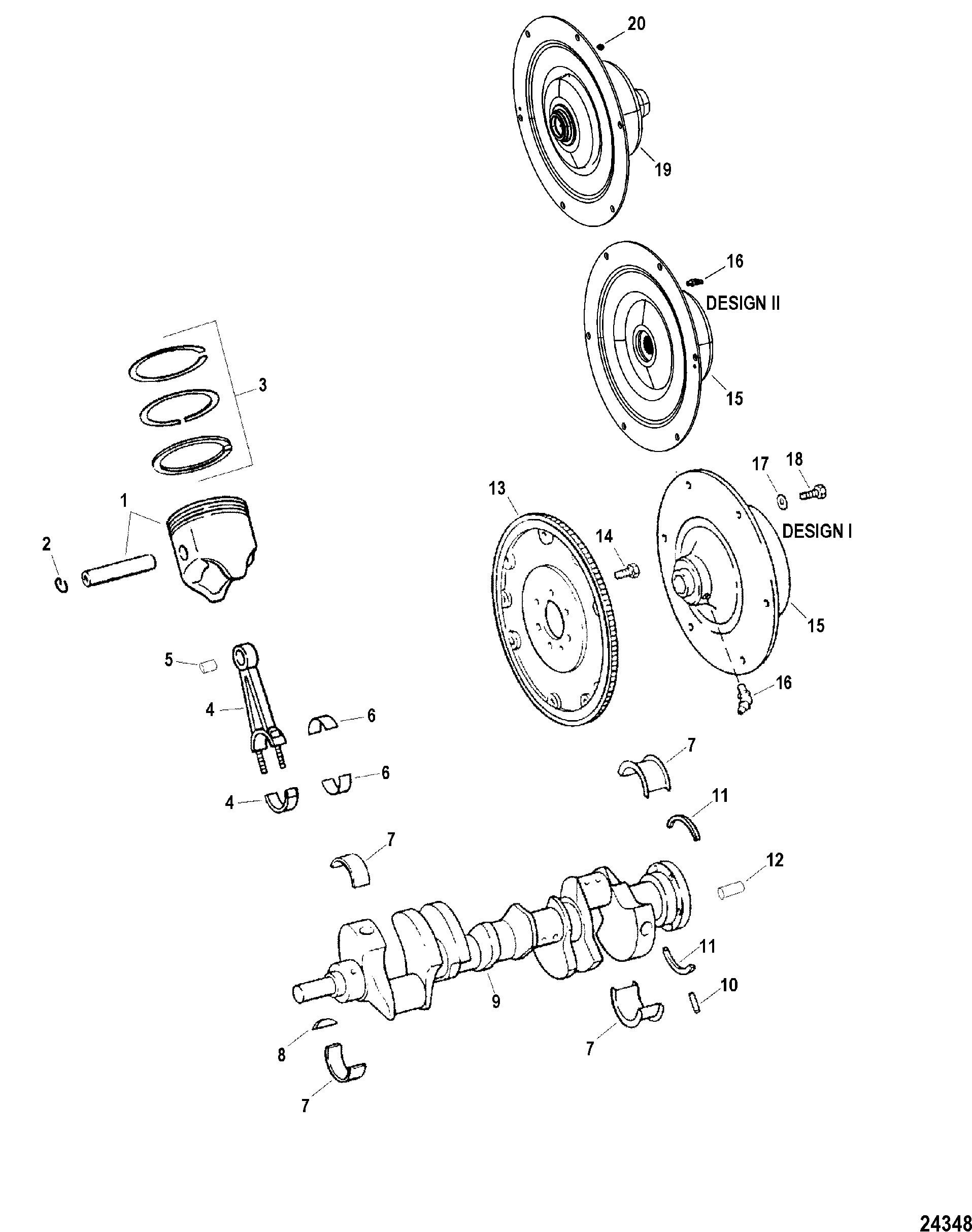

| 1 |
789-813058T1 |
|
|
|
|
PISTON ASSEMBLY |
8 |
|
Standard 5 |
| 1 |
789-813059A1 |
|
|
|
|
PISTON ASSEMBLY |
8 |
|
.030 Oversize - NOTE: When ordering oversize pistons for this engine, it is recommended that the crankshaft, rod and piston assembly be rebalanced before engine is rebuilt. |
| 2 |
17799 |
|
|
|
|
RETAINER, Piston Pin |
16 |
|
This Part is No Longer Available |
| 3 |
39-818629 |
|
|
|
|
RING SET, Piston |
1 |
|
Standard 5 |
| 3 |
39-4273335 |
|
|
|
|
RING SET, Piston |
1 |
|
0.035 Oversize |
| 4 |
645-845612T5 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
|
5 |
| 5 |
42839 |
|
|
|
|
BUSHING, Conn Rod |
8 |
|
|
| 6 |
23-841447A1 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
1 |
|
This Part is No Longer Available (8 Sets Of 2 Each) 5 |
| 6 |
23-841448A1 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
|
This Part is No Longer Available (8 Sets Of 2 Each) 5 |
| 6 |
23-841449A1 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
|
This Part is No Longer Available (8 Sets Of 2 Each) 5 |
| 6 |
23-8M0030982 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
23-841450 |
(1 Set Of 2 Each) 5 |
| 7 |
8M0051198 |
|
|
|
|
BEARING SET, Main - Standard |
1 |
23-842400 |
5 |
| 7 |
8M0053743 |
|
|
|
|
BEARING SET, Main - .001 Oversize |
AR |
23-842401 |
5 |
| 7 |
23-842402 |
|
|
|
|
BEARING SET, Main - .001 Undersize |
AR |
|
5 |
| 7 |
23-8M0053549 |
|
|
|
|
BEARING SET, Main - .010 Undersize |
AR |
23-842403 |
5 |
| 8 |
28-34466 |
|
|
|
|
KEY, Crankshaft |
2 |
|
5 |
| 9 |
2408-845867 |
|
|
|
|
CRANKSHAFT |
1 |
2408-845867T |
This Part is No Longer Available - Internal Balanced 5 |
| 10 |
17-843378 |
|
|
|
|
PIN, Dowel (.250 Diameter) Rear Main Cap |
2 |
17-35312 |
5 |
| 11 |
26-14756 |
|
|
|
|
SEAL, Oil |
1 |
|
2,5 |
| 12 |
17-816986 |
|
|
|
|
PIN, Dowel - Crankshaft |
1 |
|
This Part is No Longer Available 5 |
| 13 |
230-94251 |
|
|
|
|
FLYWHEEL, Internal Balanced |
1 |
|
5 |
| 14 |
10-845757 |
|
|
|
|
SCREW, (.437-20 x 1.00) |
6 |
10-49845 |
5 |
| 15 |
861523A9 |
|
|
|
|
COUPLER ASSEMBLY, Engine |
1 |
18311A17 |
Design I - Driveline Models |
| 15 |
861523A9 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Short Aluminum Hub |
1 |
|
Design II - Driveline Models |
| 15 |
861523A18 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Short Steel Hub |
1 |
|
Design II - Driveline Models |
| 16 |
22-49099 |
|
|
|
|
FITTING, Grease |
2 |
|
|
| 17 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
6 |
|
|
| 18 |
10-35091 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
6 |
|
|
| 19 |
861523A7 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Long Steel Hub |
1 |
|
Plug In Models |
| 20 |
22-74036 |
|
|
|
|
FITTING, Grease |
2 |
|
|
| - |
27-99386A96 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
