500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Cylinder Head And Rocker Cover

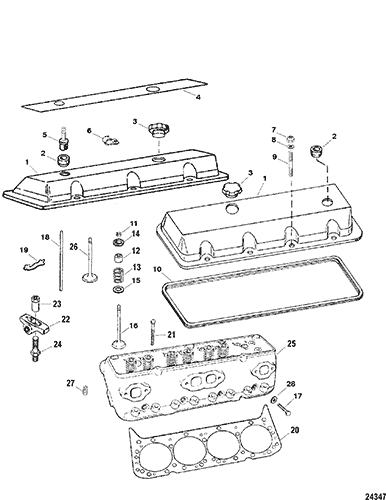

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 811587A4         COVER ASSEMBLY, Rocker Valve - Blue 2   This Part is No Longer Available 5
2 25-811553         GROMMET, Rocker Cover 2

3 36-811569         CAP, Oil Tank 2

4 37-848590         DECAL 2   This Part is No Longer Available
5 22-8485571         FITTING 2
5
6 54-642352         J CLIP 1
5
7 11-35888   676-9-72001 700-21180   NUT, (.250-28) 14
5
8 12-846673         WASHER, (.265 x .500 x .060) 14
5
9 16-56766         STUD, (.250-20/.250-28 x 1.380) 14
5
10 27-14765   676-9-61311     GASKET, Rocker Cover 2
2,5
11 8M0042989         KEY, Valve Stem 32 960281 5
12 26-69285         SEAL, Valve 8
Intake 2,5
12 26-842755         SEAL, Valve 8 26-843334 Exhaust 2,5
13 24-845617A2         SPRING/RETAINER KIT 16
5
14 843465         RETAINER 16
5
15 15-845669         SHIM, Valve Spring (.015) AR 15-54531 5
15 15-77624         SHIM, Valve Spring (.030) AR
5
16 843080         VALVE, Exhaust 8 13024 5
17 10-8M0000463         BOLT (2.00 Inches) Cylinder Head 8 10-491061 5
18 848509         PUSHROD, Valve 8
(8.650) Intake 5
18 848508         PUSHROD, Valve 8
(9.600) Exhaust 5
19 49132         GUIDE, Push Rod 8
5
20 27-42591         GASKET, Cylinder Head 2
2,5
21 10-8M0000482         BOLT, (4.125 Inch), Cylinder Head 24 10-49105 5
22 845618T         ROCKER ARM ASSEMBLY 16
5
23 11-848610         NUT, Valve Rocker Arm 16
5
24 95820         STUD, Rocker Arm Valve 16
5
25 938-816778T3         HEAD ASSEMBLY, Cylinder 2
5
26 821024T         VALVE, Intake (2.250 Diameter) Standard 8

27 22-845174         PLUG (.500-14) 1 22-61162 2,5
28 12-45176         WASHER, (.453 x .812 x .105) 8
5
- 27-99386A96         GASKET SET, Engine Overhaul 1
