500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Carburetor And Linkage

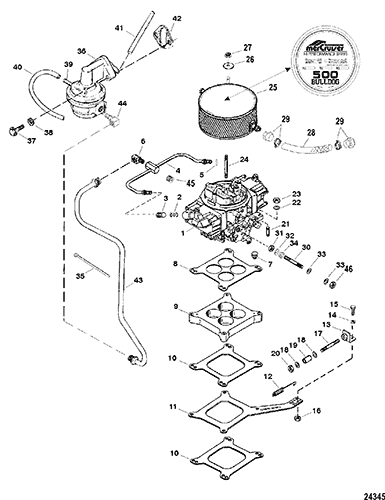

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 13549A23         CARBURETOR ASSEMBLY, Blue 1   This Part is No Longer Available
2 24-48143         SPRING 2

3 35-93568         FILTER 2

4 32-8485911         LINE ASSEMBLY, Fuel - Blue 1

5 27-848438         GASKET, Flare - Copper 2
2
- 1399-650877         JET, Main 2
(.086) Primary
- 1399-650888         JET, Main 2
(.104) Seconary
- 22-47945         PLUG, Pipe (.125-27) 2

- 17-35973         PIN, Dowel 1

- 22-36382     700-21887   FITTING, (.250-18 x .62) Brass 1

- 42268         CHOKE KIT, Electric 1   This Part is No Longer Available
- 816827         PUMP KIT, Accelerator 1   This Part is No Longer Available
- 848750         VALVE, Umbrella 2

- 848751         BAFFLE, Vent 2

- 25-848752         O-RING 2

- 848755         DIAPHRAM, Accelerator Pump - Body Of The Needle And Seat 2

- 27-848742A1         GASKET SET, Float Adjust 2   This Part is No Longer Available
- 27-42270A1         GASKET SET, Carburetor AR

- 822519         POWER VALVE, 4.5 AR   This Part is No Longer Available
- 13220         REBUILD KIT, Carburetor AR

6 22-93385         FITTING, (90 Degree) 1

7 22-36373         PLUG, Hex Steel (.375-18) 1

8 27-41609   676-9-61002 700-30361   GASKET, Carburetor Spacer 1
2
9 41548         SPACER 1   This Part is No Longer Available
10 27-41610         GASKET, Carburetor Spacer 2
2
11 940701         BRACKET, Throttle 1

12 24-897454         SPRING, Throttle Return 1 24-32817
13 15017         BRACKET, Throttle 1

14 13-26996         LOCKWASHER, (#10) 2

15 10-78291         SCREW, (.190-24 x .500) 2

16 11-79989         NUT, (#10-24) 2

17 16-728091         STUD, (.250-20/.250-28 x 1.620) 1 16-72809
18 12-69056         WASHER, (.255 x .625 x .0312) 2 12-21631
19 23-31866         SPACER, (.256 x .313 x .625) 1

20 11-826709109         NUT, (.250-28) 1 11-35045
21 16-26776         STUD (.312-24 x 2.812) 4   This Part is No Longer Available
22 12-848136         WASHER, (.328 x .680 x .190) 4

23 11-82670911         NUT, (.312-24) 4 11-35814
24 16-848176         STUD, (.250-20 x 4.310) 1

25 848914         ARRESTOR, Flame 1   This Part is No Longer Available
26 12-86400         WASHER 1

27 11-35888   676-9-72001 700-21180   NUT, (.250-28) 1

28 32-821284A14         HOSE ASSEMBLY (10.50 Inches) 2   This Part is No Longer Available
29 54-84763012         COVER, Clamp End, Red 4   This Part is No Longer Available
30 16-96112         STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

31 11-826709109         NUT, (.250-28) 1 11-35045
32 12-28426         WASHER 1

33 12-846673         WASHER, (.265 x .500 x .060) 2

34 23-818894         BUSHING, Throttle Linkage 1

35 56762         TIE STRAP, (4.00 Inches) 5

36 92864         PUMP ASSEMBLY, Fuel 1
5
37 10-35047         SCREW, (.375-16 x 1.250) Stainless Steel 2
5
38 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 2
5
39 22-85822         CONNECTOR, (Straight) 1
5
40 32-8M8023638         TUBING (48.00 Inches) 1 32-84862870
41 35377         ROD, Fuel Pump 1
5
42 27-34213         GASKET 1
2,5
43 32-848593         LINE, Fuel Pump To Carburetor 1

44 22-93385         FITTING, (90 Degree) 1

45 22-47945         PLUG, Pipe (.125-27) Dual Feed Rail 1

46 11-35888   676-9-72001 700-21180   NUT, (.250-28) 1

- 27-99386A96         GASKET SET, Engine Overhaul 1
