500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Oil Filter And Oil Adaptor

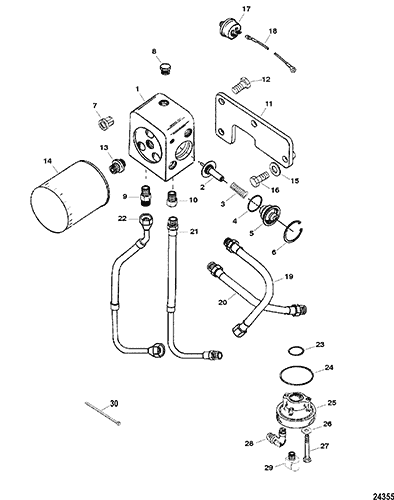

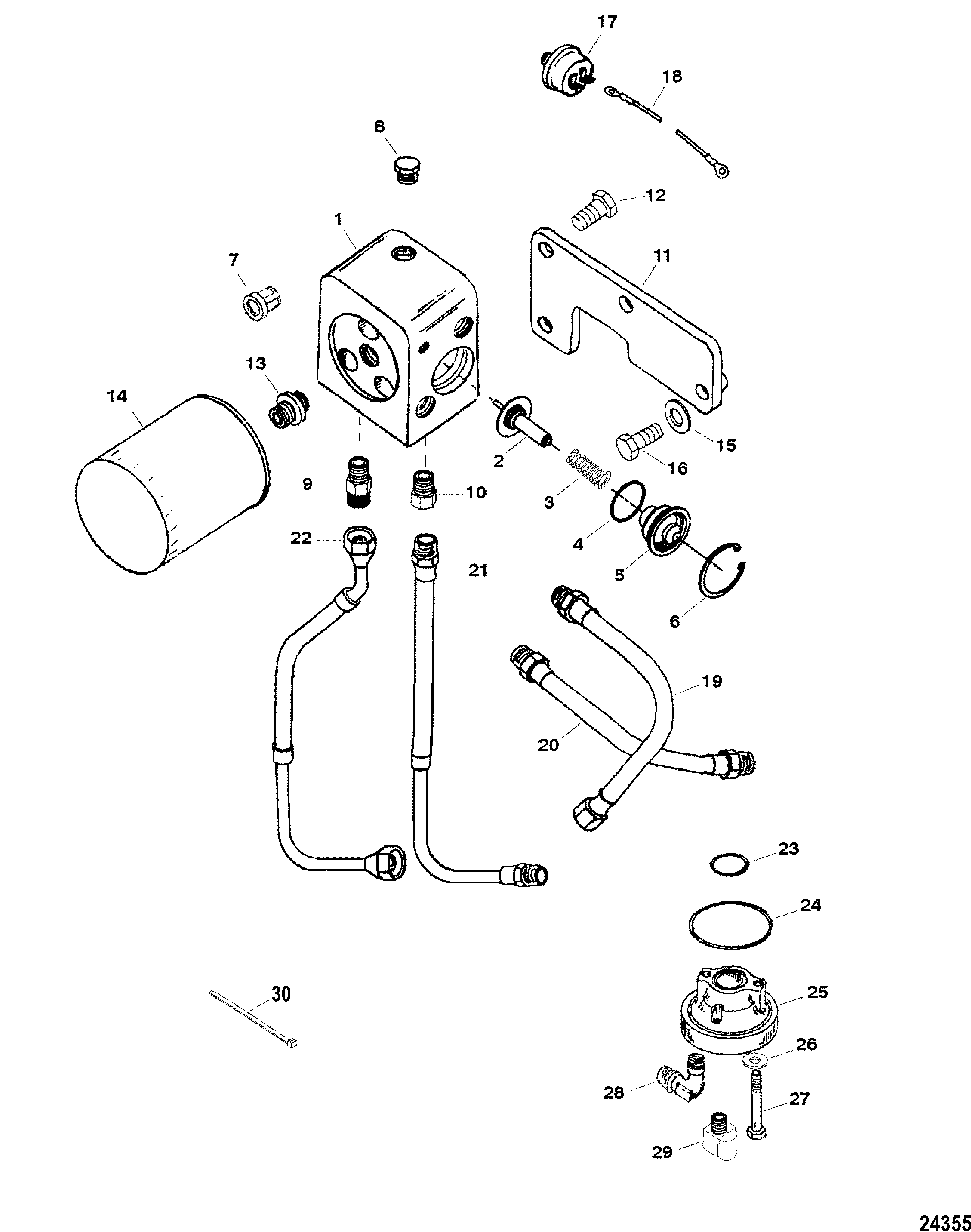

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 848555T         ADAPTOR, Remote Oil Filter 1

2 816163         THERMOSTAT, Oil 1

3 24-816162         SPRING 1

4 25-864701         O-RING, (1.112 x .103) 1 25-47632
5 8161651         COVER, Oil Thermostat 1

6 53-848571         RING, Retaining, Snap 1

7 99889         VALVE, By Pass 1

8 22-32804         PLUG, (.500-14) 1

9 22-806186         FITTING 1

10 22-805563         CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 1

11 8485562         BRACKET, Oil Adaptor 1

12 10-99204         SCREW, (.437-14 x 1.00) 2

13 22-805632         CONNECTOR, Oil Filter 1
5
14 35-16595Q         FILTER, Oil 1 35-16595T 5
15 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 1
.375 Inside Diameter
15 12-45176         WASHER, (.453 x .812 x .105) 1
.437 Inside Diameter
16 10-35047         SCREW, (.375-16 x 1.250) Stainless Steel 1

16 10-825427         SCREW, (.437-14 x 1.250) 1

17 87-94009         SWITCH, Choke 1

18 84-848879A1         CABLE ASSEMBLY, Sender To Choke 1

19 32-8485742         HOSE ASSEMBLY (14.50 Inches) 1

20 32-848577         HOSE ASSEMBLY (19.00 Inches) 1

21 32-848575         HOSE ASSEMBLY, Remote Oil To Adaptor 1

22 32-848576         HOSE ASSEMBLY, Remote Oil To Adaptor 1

23 25-26855   676-9-76541     O-RING, (1.609 x .139) 1
2,5
24 25-32507         O-RING, (3.359 x .139) 1
2,5
25 8141531         ADAPTOR, Oil Filter 1
5
26 12-36533         WASHER, (.328 x .562 x .0312) Copper 2
2,5
27 10-67450         SCREW, (.312-18 x 2.250) 2
5
28 22-706811         ELBOW, 90 Degree 1
5
29 22-47630         ELBOW, 90 Degree 1
5
30 54-816311T     700-21465   TIE STRAP, (8.00 Inches), Oil Lines 3

- 27-99386A96         GASKET SET, Engine Overhaul 1
