| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

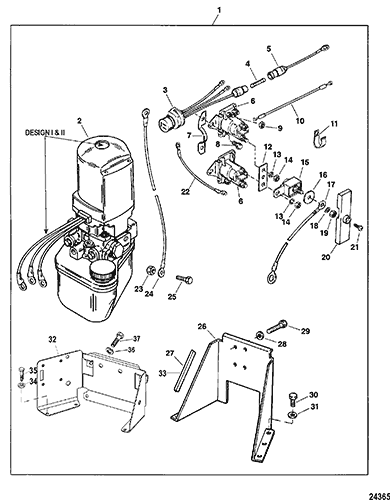

| 1 |
865380A25 |
|
|
|
|
PUMP ASSEMBLY, Trim, Complete |
1 |
14336A9 |
NOTE: Bottom Mounted Reservoir - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line |
| 1 |
865380A25 |
|
|
|
|
PUMP ASSEMBLY, Trim, Complete |
1 |
14336A15 |
NOTE: Bottom Mounted Reservoir - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line |
| 1 |
865380A25 |
|
|
|
|
PUMP ASSEMBLY, Trim, Complete |
1 |
14336A17 |
NOTE: Top Mounted Reservoir - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line |
| 1 |
865380A25 |
|
|
|
|
PUMP ASSEMBLY, Trim - Complete |
1 |
14336A22 |
NOTE: Top Mounted Reservoir - Design II - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line |
| 2 |
865380A13 |
|
|
|
|
PUMP/MOTOR ASSEMBLY |
1 |
14336A8 |
NOTE: See Pump/Motor Assembly - Design I Section For Parts Breakdown |
| 2 |
865380A13 |
|
|
|
|
PUMP/MOTOR ASSEMBLY |
1 |
14336A20 |
NOTE: See Pump/Motor Assembly - Design I Section For Parts Breakdown |
| 2 |
865380A13 |
|
|
|
|
PUMP/MOTOR ASSEMBLY |
1 |
14336A25 |
NOTE: See Pump/Motor Assembly - Design II Section For Parts Breakdown |
| 3 |
84-79147A3 |
|
|
|
|
HARNESS ASSEMBLY |
1 |
|
|
| 4 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
|
| 5 |
84-95084A2 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
|
| 6 |
89-96158T |
|
|
|
|
SOLENOID |
2 |
|
|
| 7 |
88075 |
|
|
|
|
RETAINER |
1 |
|
|
| 8 |
10-41508 |
|
|
|
|
SCREW, (.250-20 x .500) |
4 |
|
|
| 9 |
11-26419 |
|
|
|
|
NUT, (#8-32) Brass |
4 |
|
|
| 10 |
84-86322A24 |
|
|
|
|
CABLE ASSEMBLY, (4.00 Inches), Black |
1 |
|
|
| 11 |
54-55098 |
|
|
|
|
J CLIP |
1 |
|
|
| 12 |
94275 |
|
|
|
|
LINK, Connector |
1 |
|
|
| 13 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
4 |
|
|
| 14 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
4 |
|
|
| 15 |
79023T10 |
|
|
|
|
FUSE ASSEMBLY, 110 Ampere |
1 |
88-79023A10 |
|
| 16 |
12-25908 |
|
|
|
|
WASHER, (.265 x .812 x .0625) |
1 |
|
|
| 17 |
84-79139A12 |
|
|
|
|
CABLE ASSEMBLY, Red, Battery - Positive |
1 |
|
|
| 18 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
1 |
|
|
| 19 |
11-21825 |
|
|
|
|
NUT, (.250-28) |
1 |
|
|
| 20 |
85-861680 |
|
|
|
|
INSULATOR |
1 |
|
|
| 21 |
10-48409 |
|
|
|
|
SCREW, (#10-16 x .625) |
1 |
|
|
| 22 |
84-86322A15 |
|
|
|
|
CABLE ASSEMBLY, (5.50 Inches) Black |
1 |
|
|
| 23 |
11-68292 |
|
|
|
|
NUT, (.312-18) |
1 |
|
|
| 24 |
84-79138A9 |
|
|
|
|
CABLE ASSEMBLY, (6.00 Feet) Black, Battery - Negative |
1 |
|
|
| 25 |
10-90285 |
|
|
|
|
SCREW, (.312-18 x .625) |
1 |
|
|
| 26 |
862548A1 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
42419A1 |
NOTE: 14336A9 - Floor Mounted Only |
| 27 |
58491 |
|
|
|
|
CHANNEL, Rubber (4.00 Inches) |
2 |
|
|
| 28 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312) |
4 |
|
|
| 29 |
10-35386 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
4 |
|
|
| 30 |
10-59784 |
|
|
|
|
SCREW, (.250-10 x 1.00) |
6 |
|
|
| 31 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) |
6 |
|
|
| 32 |
862548A1 |
|
|
|
|
BRACKET KIT |
1 |
|
NOTE: 14336A15/A17/A22 - Floor/Transom Mounted |
| 33 |
58491 |
|
|
|
|
CHANNEL, Rubber (4.00 Inches) |
2 |
|
|
| 34 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) |
4 |
|
|
| 35 |
10-59784 |
|
|
|
|
SCREW, (.250-10 x 1.00) |
4 |
|
|
