500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Intake Manifold And Front Cover

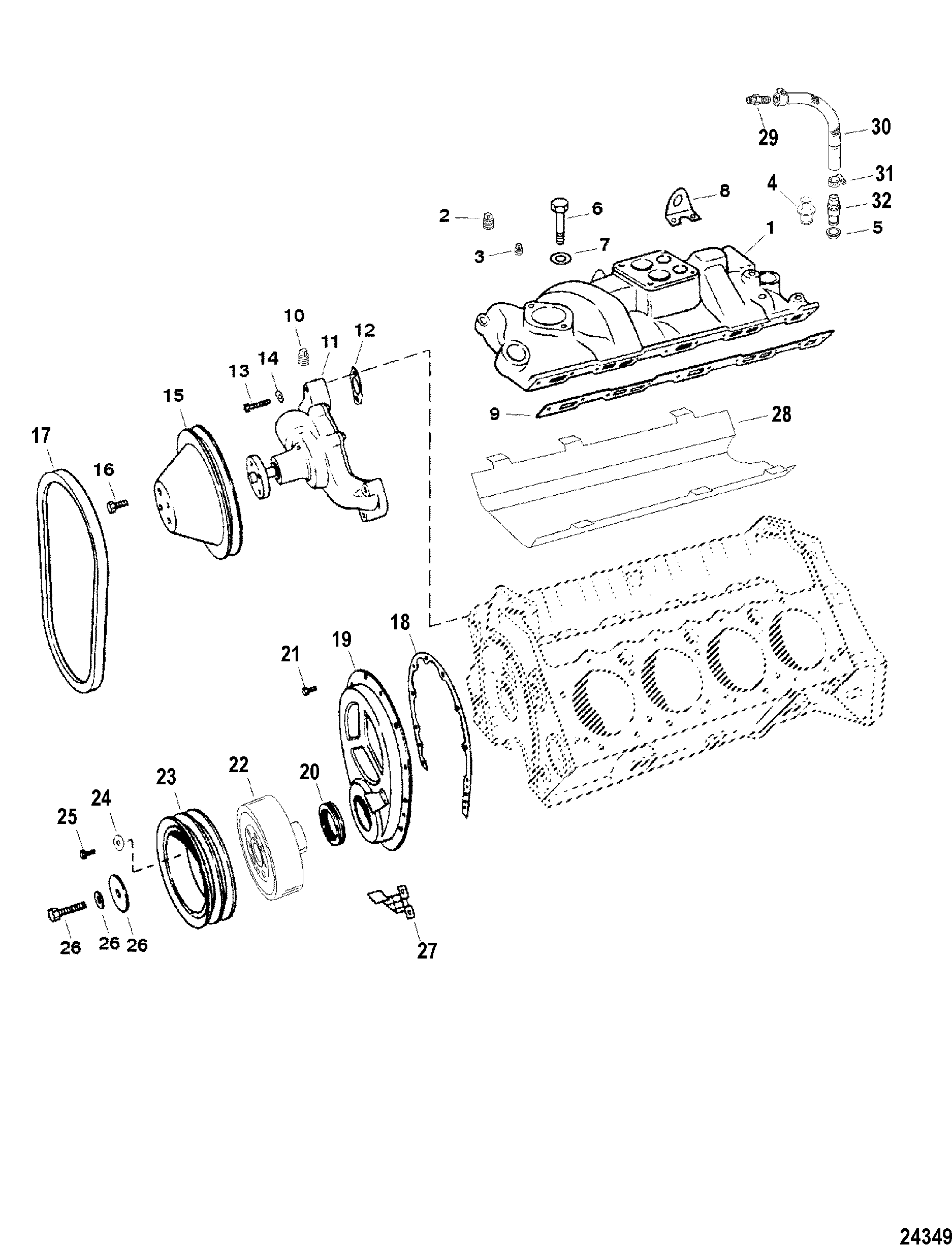

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 848587T2         MANIFOLD ASSEMBLY, Intake 1
5
2 22-32804         PLUG, (.500-14), Brass 1

3 22-36382     700-21887   FITTING, (.250-18 x .62) Brass 2

4 22-848646         FITTING OPT

5 25-811553         GROMMET 1
2
6 10-822168         SCREW, (.375-16 x 1.750) 8
5
6 10-842787         SCREW, (.375-16 x 2.00) 4 10-47432 5
7 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 12
5
8 54-64628         LIFTING EYE 2 54-64628T1 5
9 27-8181881         GASKET, Intake Manifold 2
2,5
10 22-845174         PLUG (.500-14) 2 22-61162 5
11 811573A04         PUMP ASSEMBLY, Circulating Water 1 811573A03 5
12 27-49110         GASKET, Circulating Water Pump Mount 2
2,5
13 10-842787         SCREW, (.375-16 x 2.00) 3
5
14 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 4
5
15 523491         PULLEY, Blue - (.375 Groove) Water Pump 1   This Part is No Longer Available
16 10-849198         SCREW, (.312-24 x .750) 4

17 57-816034Q         V BELT (.375 Wide) 1 57-816034
18 27-54529   676-9-61601 700-30440   GASKET, Timing Cover 1
2,5
19 66215         COVER ASSEMBLY 1   This Part is No Longer Available 5
20 26-8219471         SEAL, Oil 1

21 10-817505         SCREW, (.250-20 x .620) 10
5
22 497831         DAMPER, Internal Balanced 1   This Part is No Longer Available 5
23 845524A1         PULLEY KIT, Blue (.375 Groove) 1
5
24 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 3

25 10-37612         SCREW, (.375-16 x 1.250) 3

26 814441         BOLT KIT, Damper 1   This Part is No Longer Available 5
27 59966         POINTER, Timing 1
5
28 845756T         SHIELD, Heat 1 816073 5
29 22-8604901         FITTING 1

30 32-823229A4         HOSE ASSEMBLY (6.750 Inches) 1

31 54-815504104         CLAMP, Worm Gear 1

32 848578         VALVE ASSEMBLY, Crankcase Vent 1

- 27-99386A96         GASKET SET, Engine Overhaul 1
