500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Mount Plates - Engine

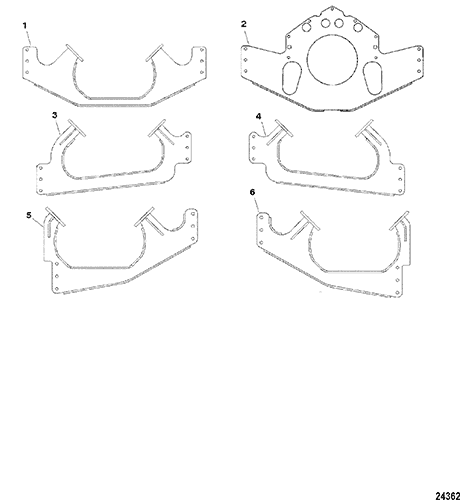

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849143T | MOUNT, Engine | AR | Front Single | |||||
| 2 | 844346T | MOUNT, Engine | AR | 844843T | Rear Single | ||||
| 3 | 849299T | MOUNT, Engine | AR | Front Starboard Side By Side | |||||
| 4 | 849339T | MOUNT, Engine | AR | Front Port Side By Side | |||||
| 5 | 849310T | MOUNT, Engine | AR | Front Starboard Staggered | |||||
| 6 | 849335T | MOUNT, Engine | AR | Front Port Staggered | |||||
| - | 10-86518 | SCREW, (.375-16 x 1.00) | 6 | ||||||
| - | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 |
