| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

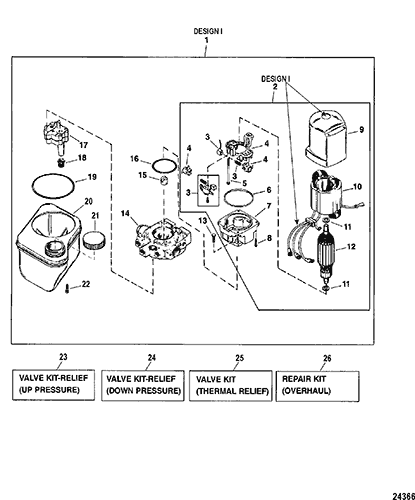

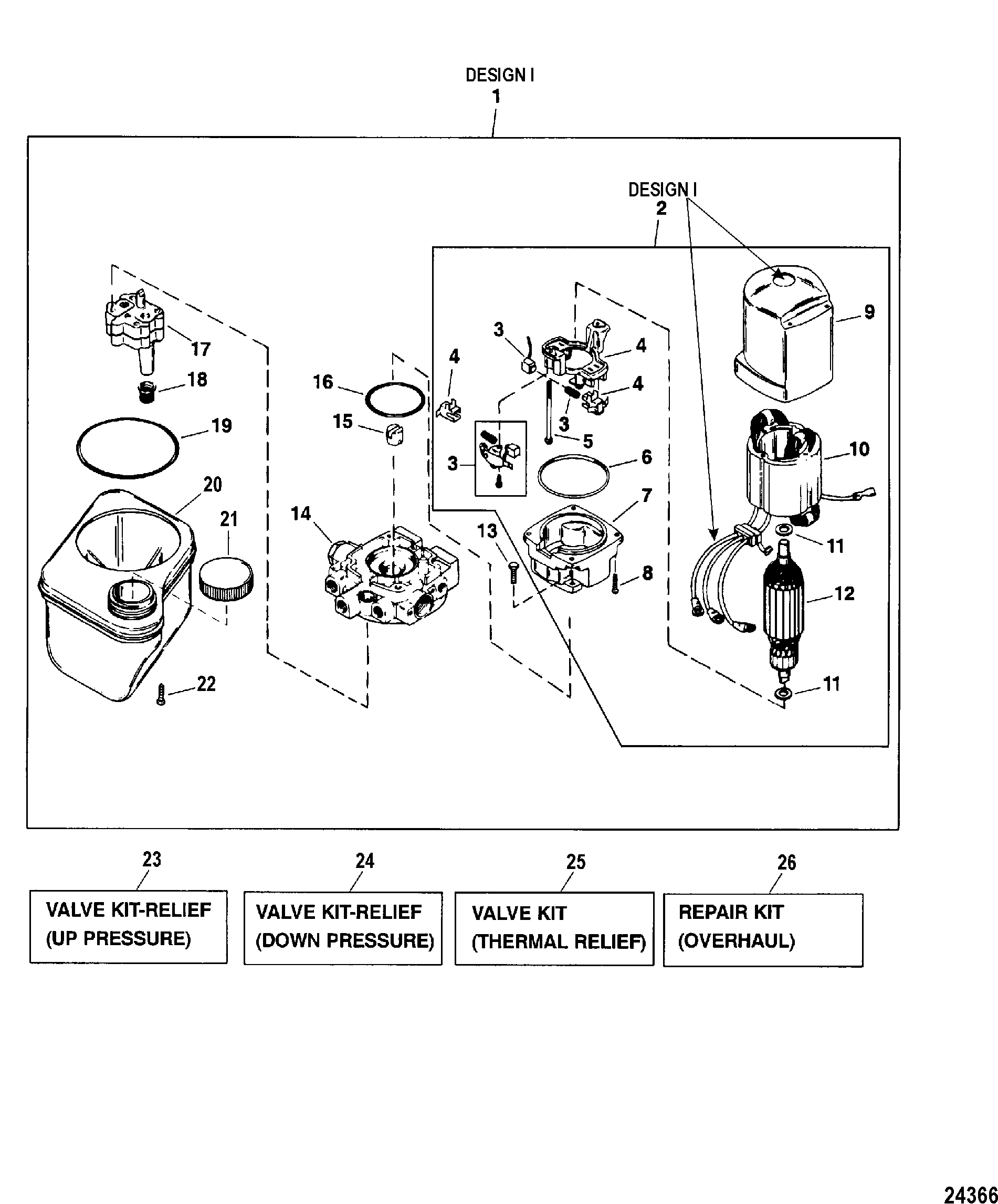

| 1 |
865380A13 |
|
|
|
|
PUMP/MOTOR ASSEMBLY |
1 |
14336A8 |
NOTE: Bottom Mounted Reservoir - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line |
| 2 |
891736T |
|
|
|
|
MOTOR ASSEMBLY, Complete |
1 |
17649T |
NOTE: Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line |
| 3 |
891736T |
|
|
|
|
BRUSH KIT |
1 |
17631A1 |
|
| 4 |
891736T |
|
|
|
|
HOLDER KIT, Brush |
1 |
17633 |
|
| 5 |
891736T |
|
|
|
|
SCREW |
2 |
10-17621 |
|
| 6 |
891736T |
|
|
|
|
O-RING |
1 |
25-17625 |
|
| 7 |
891736T |
|
|
|
|
END CAP ASSEMBLY, With Bearing |
1 |
17632T |
|
| 8 |
891736T |
|
|
|
|
SCREW |
4 |
10-17626 |
|
| 9 |
891736T |
|
|
|
|
COVER ASSEMBLY, With Bearing |
1 |
17622 |
|
| 10 |
891736T |
|
|
|
|
FIELD AND FRAME ASSEMBLY |
1 |
17624 |
|
| 11 |
891736T |
|
|
|
|
WASHER, Thrust |
2 |
12-17653 |
|
| 12 |
891736T |
|
|
|
|
ARMATURE |
1 |
17623 |
|
| 13 |
10-823444 |
|
|
|
|
SCREW |
2 |
|
|
| 14 |
808728T |
|
|
|
|
ADAPTER ASSEMBLY |
1 |
|
|
| 15 |
803852 |
|
|
|
|
COUPLING |
1 |
|
|
| 16 |
25-89498 |
|
|
|
|
O-RING, Motor End |
1 |
|
|
| 17 |
18529 |
|
|
|
|
PUMP ASSEMBLY, Includes Screws |
1 |
|
Does not include filters |
| 18 |
35-89496 |
|
|
|
|
FILTER |
1 |
|
|
| 19 |
25-17645 |
|
|
|
|
O-RING, Reservoir End |
1 |
|
|
| 20 |
18525A1 |
|
|
|
|
RESERVOIR, With O-Ring - Ref No 19 |
1 |
|
This Part is No Longer Available |
| 21 |
36-865448A01 |
|
|
|
|
CAP, Oil Reservoir |
1 |
36-18526 |
|
| 22 |
10-18527 |
|
|
|
|
SCREW, With O-Ring And Spacer |
1 |
|
|
| 23 |
812498A1 |
|
|
|
|
VALVE KIT, Relief, Up Pressure |
1 |
|
|
| 24 |
812499A1 |
|
|
|
|
VALVE KIT, Relief, Down Pressure |
1 |
|
|
| 25 |
95353A1 |
|
|
|
|
VALVE KIT, Relief, Thermal Relief |
1 |
|
|
| 26 |
18545A1 |
|
|
|
|
REPAIR KIT, Overhaul |
1 |
|
|
