| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

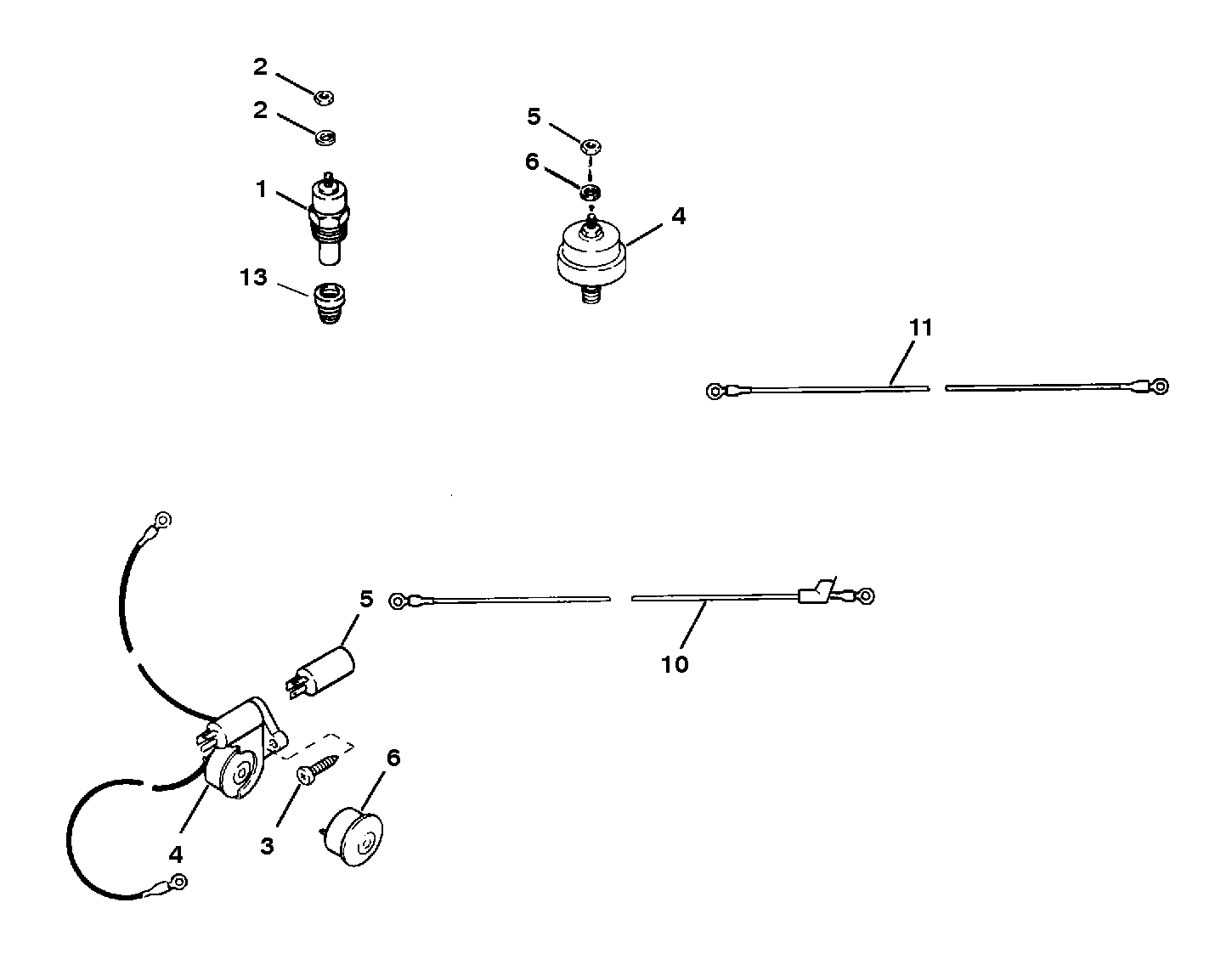

| 1 |
48952 |
|
|
|
|
SWITCH ASSEMBLY-Water Temperature |
1 |
|
|
| 2 |
13-26996 |
|
|
|
|
LOCKWASHER (#10)-Tempersture Switch |
1 |
|
|
| 3 |
11-45076 |
|
|
|
|
NUT (#10-32)-Temperature Switch |
1 |
|
|
| 4 |
87-805605A1 |
|
|
|
|
SWITCH ASSEMBLY-Pressure |
1 |
|
|
| 5 |
11-68219 |
|
|
|
|
NUT (#10-32)-Pressure Switch Terminal |
1 |
|
|
| 6 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
|
| 7 |
816492A14 |
|
|
|
|
HOUSING KIT-Buzzer |
1 |
86047A11 |
(WITH TWO RING CONNECTORS) Please note - this is the new style buzzer, not horn & timer |
| 8 |
816492A14 |
|
|
|
|
TIMER-Temperature Buzzer |
1 |
86045 |
Please note - this is the new style buzzer, not horn & timer |
| 9 |
68878A6 |
|
|
|
|
HORN ASSEMBLY |
1 |
|
No longer made, limited availability |
| 10 |
10-69013 |
|
|
|
|
SCREW (#10-16 x .875) |
2 |
|
|
| 11 |
84-86044A6 |
|
|
|
|
CABLE ASSEMBLY (20.00 Ft.) (Tan/Blue) (2 Rings) |
1 |
|
This Part is No Longer Available |
| 7 |
816492A14 |
|
|
|
|
HOUSING KIT-Buzzer |
1 |
86047A16 |
(WITH 1 RING - 1 SPADE CONNECTOR) Please note - this is the new style buzzer, not horn & timer |
| 8 |
816492A14 |
|
|
|
|
TIMER-Temperature Buzzer |
1 |
86045 |
Please note - this is the new style buzzer, not horn & timer |
| 9 |
68878A6 |
|
|
|
|
HORN ASSEMBLY |
1 |
|
No longer made, limited availability |
| 11 |
84-86044A11 |
|
|
|
|
CABLE ASSY (20.00 Ft.) (Tan/Blue) (1 Ring - 1 Spade) |
1 |
|
This Part is No Longer Available |
| 12 |
84-86044A4 |
|
|
|
|
CABLE ASSEMBLY (36.00 In.) (Tan/Blue) |
1 |
|
This Part is No Longer Available |
| 12 |
84-88032A6 |
|
|
|
|
CABLE ASSEMBLY (Tan/Blue) (Harness to Sender) |
1 |
|
This Part is No Longer Available |
| 13 |
22-92949 |
|
|
|
|
BUSHING-Reducer |
1 |
|
This Part is No Longer Available |
