450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Flywheel Housing (Bravo Plug-In Models)

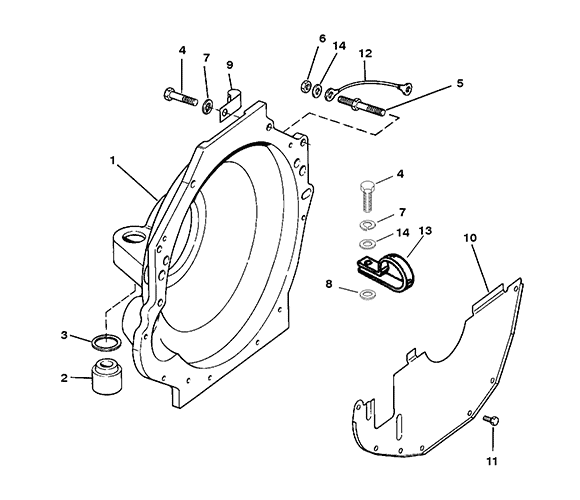

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 865657A04 | 620-91200 | HOUSING ASSEMBLY-Flywheel | 1 | 12675A7 | ||||
| 2 | 865330A02 | MOUNT-Rubber-Flywheel Housing | 2 | 88791 | |||||
| 3 | 23-99322 | 700-21050 | SPACER-Rubber Mount-Flywheel Housing | 2 | |||||
| 4 | 10-37612 | SCREW (.375-16 x 1.250)-Flywheel Housing Attaching | 3 | ||||||
| 4 | 10-32132 | SCREW (.375-16 x 1.750)-Flywheel Housing Attaching | 1 | ||||||
| 5 | 16-64066 | STUD (2.750 In.)-Flywheel Housing Attaching | 2 | ||||||
| 6 | 11-32219 | NUT (.375-16)-Flywheel Housing Attaching Stud | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER (.375)-Flywheel Housing Screw | 8 | ||||||
| 8 | 12-20572 | WASHER-Special (.375)-Housing Screw | 1 | ||||||
| 9 | 54-78945 | J CLAMP-Flywheel Housing Stud | 2 | ||||||
| 10 | 807260A2 | COVER KIT-With Gasket | 1 | 818719A3 | |||||
| 11 | 10-32773 | SCREW (.250-20 x .875)-Cover to Flywheel Housing | 7 | ||||||
| 12 | 84-62826A6 | CABLE ASSEMBLY (Black) | 2 | ||||||
| 13 | 54-62494 | CLIP-Water Hose | 1 | ||||||
| 14 | 12-20553 | WASHER | 5 |
