450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Oil Pan And Oil Pump

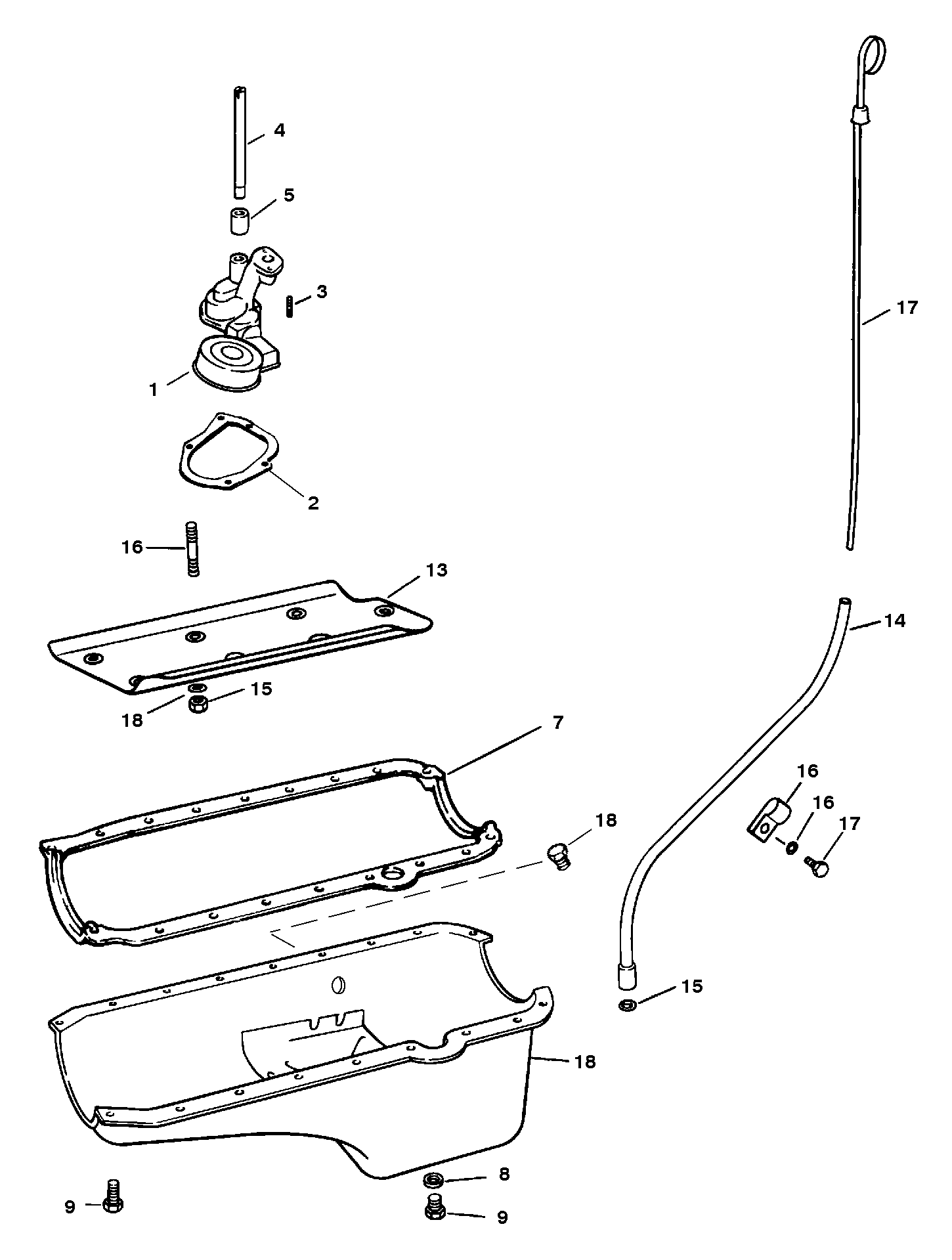

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 827589T1 | PUMP ASSEMBLY-Oil | 1 | 827589A1 | |||||
| 2 | FI5000254 | GASKET-Oil Pump Cover | 1 | This Part is No Longer Available 1 | |||||
| 3 | 16-845599 | STUD | 1 | 16-49108 | |||||
| 4 | 14761 | SHAFT | 1 | ||||||
| 5 | 23-36183 | RETAINER | 1 | ||||||
| 6 | 27-845628 | GASKET | 1 | 27-811566 | 1 | ||||
| 7 | 845668T | PAN ASSEMBLY-Oil | 1 | 811549 | |||||
| 8 | 22-808708 | PLUG-Oil Drain | 1 | ||||||
| 9 | 27-8M0077608 | GASKET-Oil Drain Plug | 1 | 27-49955 | |||||
| 10 | 10-841389 | SCREW (.312-18 x .625) | 20 | 10-808707 | |||||
| 11 | 818631A6 | TUBE ASSEMBLY-Dipstick | 1 | ||||||
| 12 | 25-62704 | O RING | 1 | 1 | |||||
| 13 | 861942T9 | DIPSTICK-Oil Level | 1 | 805567T | |||||
| 14 | 10-66293 | SCREW (.250-20 x .500) | 1 | This Part is No Longer Available | |||||
| 15 | 16-811683 | STUD | 5 | ||||||
| 16 | 843945T | BAFFLE | 1 | 811682 | |||||
| 17 | 12-20553 | WASHER | 5 | ||||||
| 18 | 11-37500 | NUT | 5 | ||||||
| 19 | 13-26992 | LOCKWASHER (.250) | 1 | ||||||
| 20 | 54-822279 | CLIP | 1 | ||||||
| 21 | 22-36373 | PLUG-Oil Pan | 1 | ||||||
| - | 27-818572A98 | Gasket Set | - | 27-818572A94 |
