450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Mount Plates

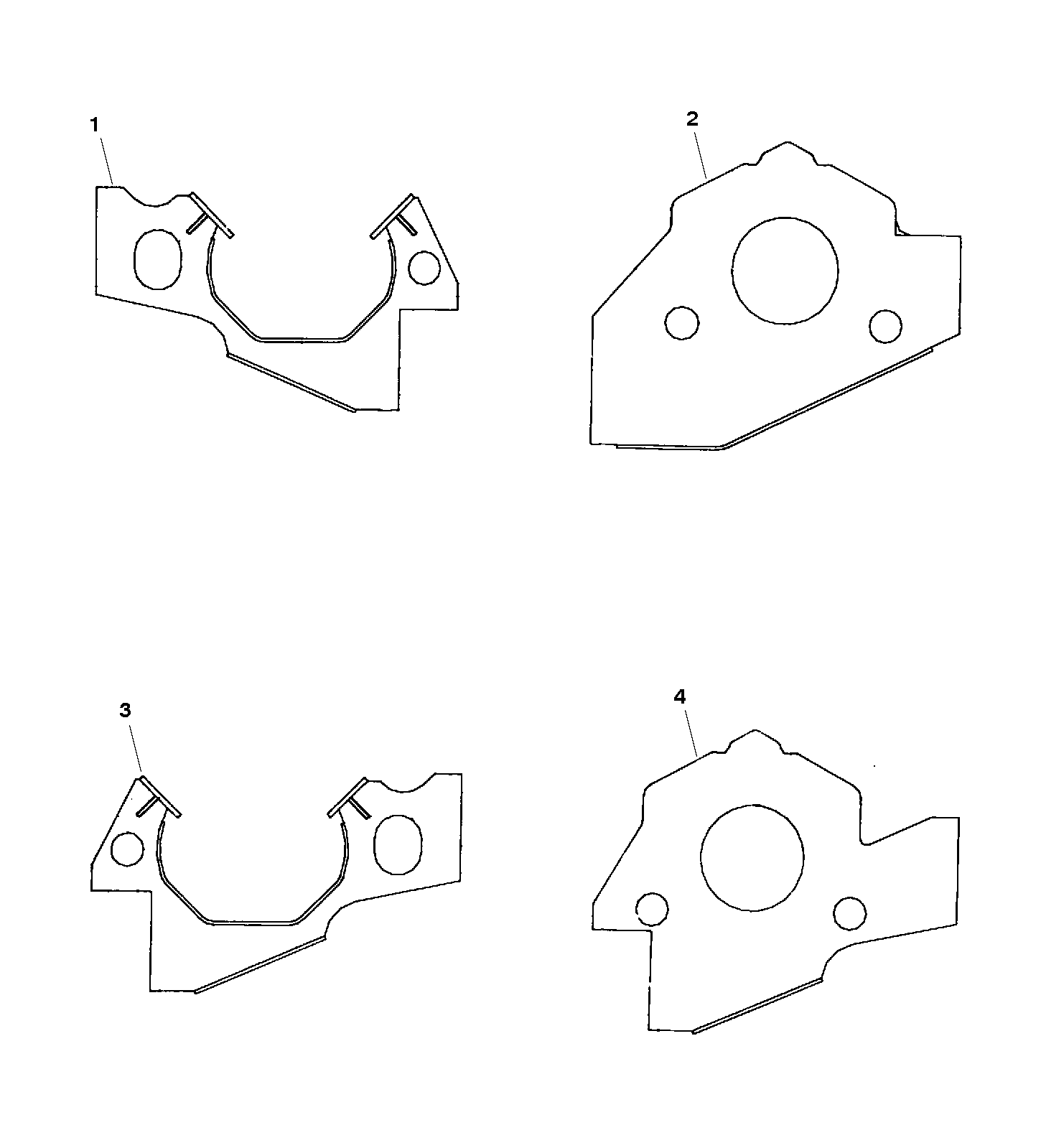

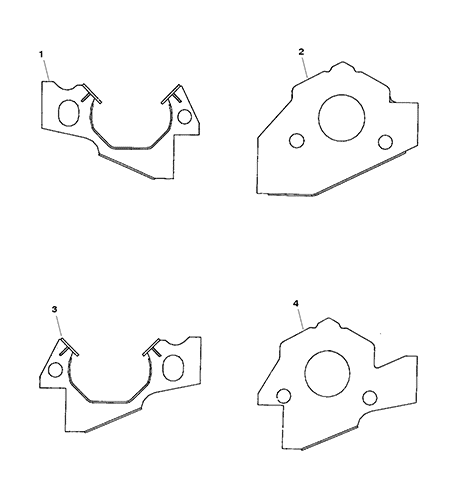

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 849310T | MOUNT-Engine (Front Starboard Staggered) | AR | 816308 | 5 | ||||
| 2 | 847807T | MOUNT-Engine (Rear Side by Side) | AR | 847807 | This Part is No Longer Available 5 | ||||
| 3 | 849335T | MOUNT-Engine (Front Port Staggered) | AR | 816307 | 5 | ||||
| 4 | 847808T | MOUNT-Engine (Rear Staggered) | AR | 847808 | 5 | ||||
| NS | 10-86518 | SCREW (.375-16 x 1.00) | 6 | 2 | |||||
| NS | 12-20553 | WASHER | 6 | 2 |
