450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Crankshaft, Pistons And Conn Rods

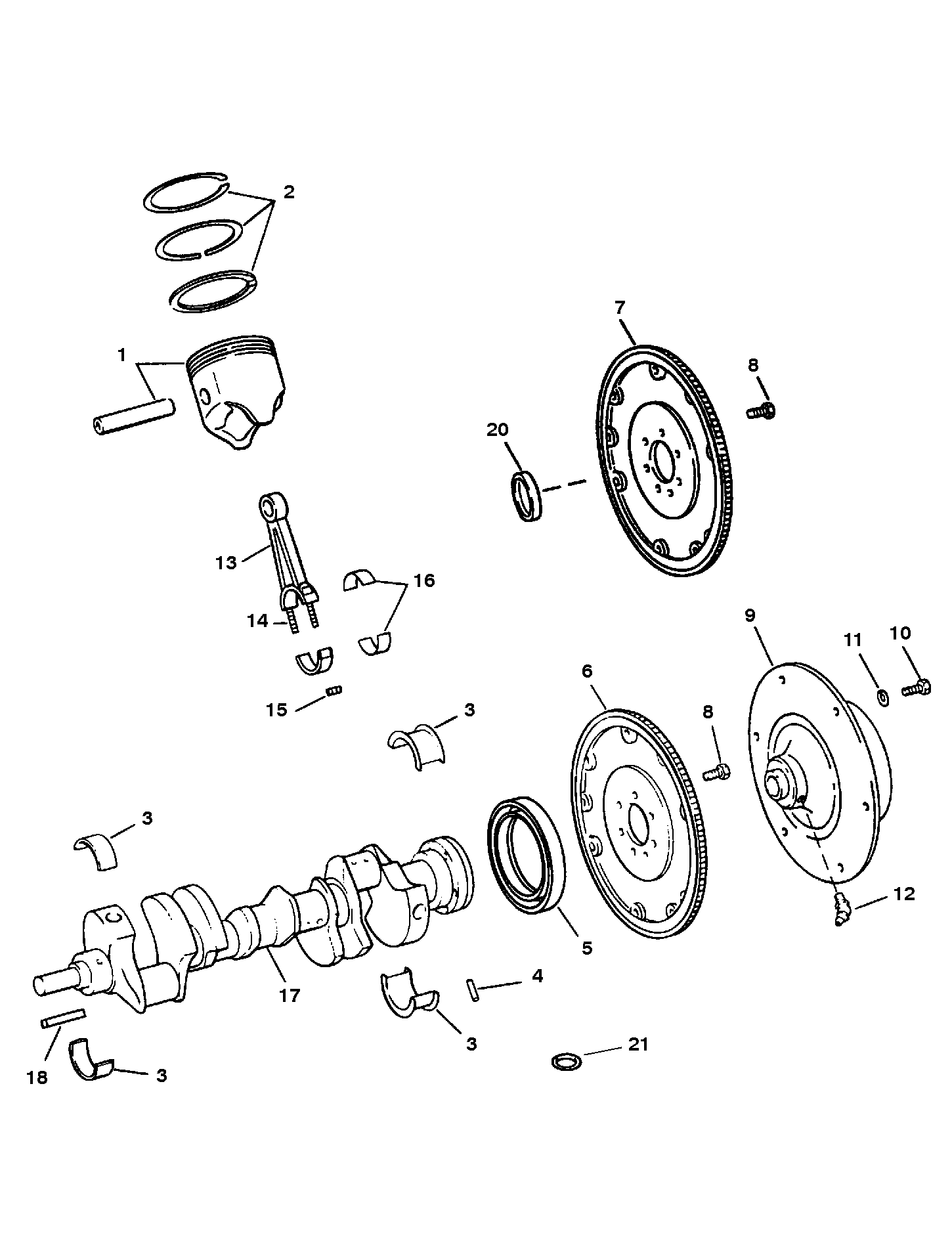

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 737-850477T         PISTON KIT 8 737-827653 This Part is No Longer Available (STANDARD)
1 737-827654         PISTON KIT (.030 O.S.) 8   This Part is No Longer Available
2 39-827651T         RING SET-Piston 8 39-827651 (STANDARD)
2 39-850447         RING SET-Piston (.030 O.S.) 8

3 23-818473001         BEARING SET 1 23-818473 (STANDARD)
3 23-818474         BEARING SET (.001 U.S.) AR
5
3 23-818475         BEARING SET (.002 U.S.) AR
5
3 818476001         BEARING SET (.010 U.S.) AR 23-818476 5
3 23-818477         BEARING SET (.020 U.S.) AR
5
4 17-843378         PIN-Dowel (.250) 1 17-35312
5 26-811554         SEAL-Oil 1
1
6 230-843374T1         FLYWHEEL 1 230-811561
7 230-8115631         FLYWHEEL (GEN V Driveline) 1 230-811563
8 10-845757         SCREW (.437-20 x 1.00) 6 10-49845
9 861523A9         COUPLING ASSEMBLY-Engine 1 18311A17
10 10-14883         SCREW (.375-16 x 1.125) 6

11 12-20572         WASHER 6

12 22-49099         FITTING-Grease 2

13 614-8M0084554         CONNECTING ROD ASSEMBLY 8 614-9641
14 10-19234         SCREW-Conn Rod Cap 16

15 11-58056         NUT-Conn Rod Cap Screw 16
No longer made, limited availability
16 23-85726001         BEARING SET 8 23-85726 (STANDARD)
16 23-85727         BEARING SET (.001 U.S.) AR
5
16 23-85728         BEARING SET (.002 U.S.) AR   This Part is No Longer Available 5
16 23-85691         BEARING SET (.010 U.S.) AR
5
16 23-85729         BEARING SET (.020 U.S.) AR
5
17 429-811552         CRANKSHAFT 1

18 28-845607         KEY-Crankshaft 2 28-811558
19 23-823108         BUSHING-Pilot-Crankshaft 1
(DRIVELINE MODELS ONLY)
20 25-69756         O RING (#5 Bearing Cap Oil Hole) 1 25-811528 1
- 27-818572A98         Gasket Set - 27-818572A94
