450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Thermostat Housing

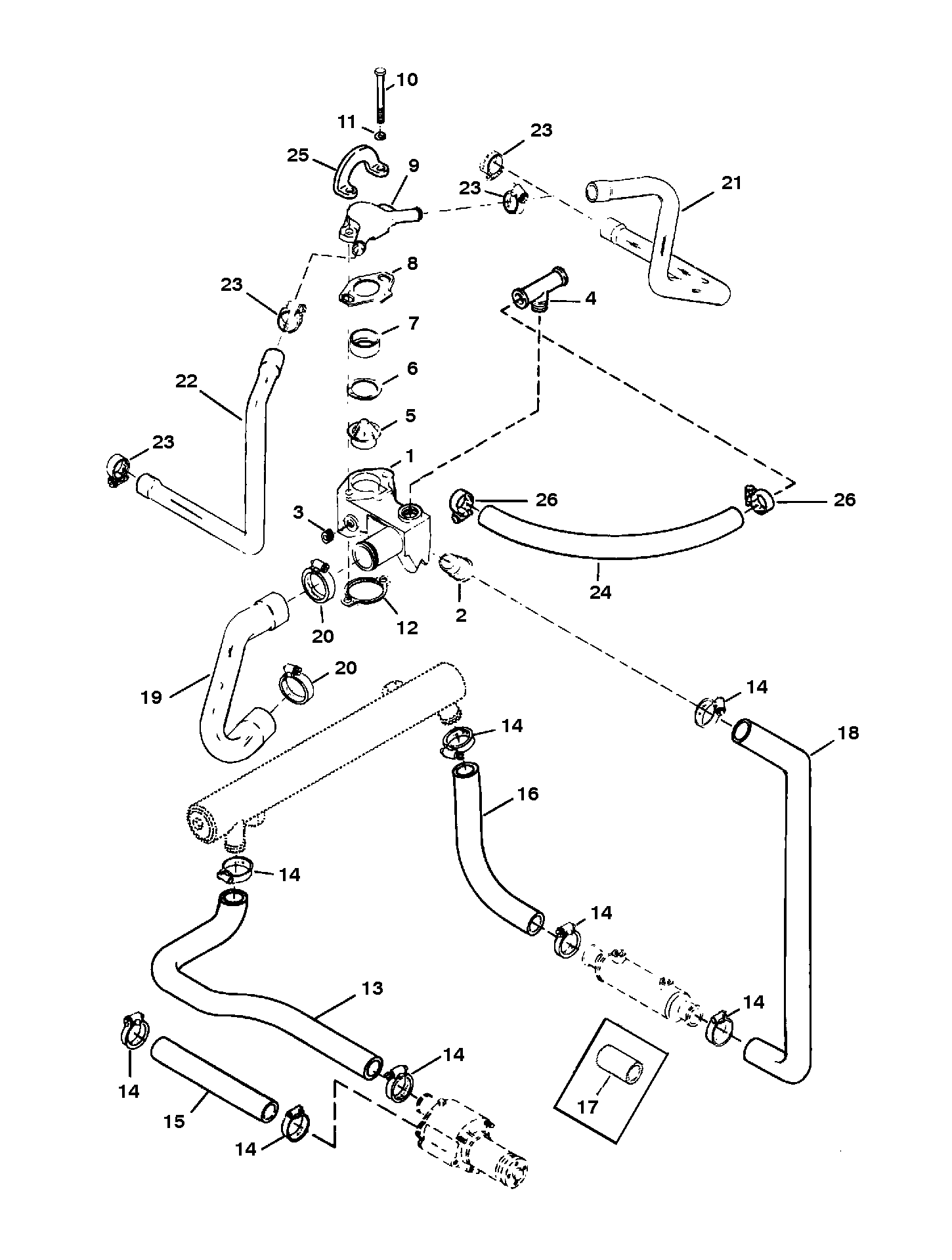

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 87290A4 | HOUSING ASSEMBLY-Thermostat | 1 | ||||||
| 2 | 23-47511 | SLEEVE | 1 | ||||||
| 3 | 22-32803 | PLUG (.375)-Pipe | 2 | ||||||
| 4 | 22-98477A2 | VALVE ASSEMBLY | 1 | ||||||
| 5 | 807252T1 | THERMOSTAT (140 DEGREES) | 1 | 8072521 | |||||
| 6 | 27-47510 | GASKET-Thermostat | 1 | 1 | |||||
| 7 | 23-47508T | SLEEVE-Thermostat | 1 | 23-47508 | |||||
| 8 | 27-418122 | GASKET-Thermostat Cover | 1 | 1 | |||||
| 9 | 47441A1 | COVER-Thermostat | 1 | ||||||
| 10 | 10-14164 | SCREW (.375-16 x 4.375) | 2 | ||||||
| 11 | 12-20553 | WASHER | 2 | ||||||
| 12 | 27-530451 | GASKET-Thermostat Housing | 1 | 1 | |||||
| 13 | 32-848178 | HOSE- Pump to Cooler | 1 | ||||||
| 13 | 32-821736 | HOSE-Water Pump to Oil Cooler | 1 | ||||||
| 14 | 54-180766 | CLAMP | 8 | ||||||
| 15 | 32-1743565 | HOSE-Sea Pump to Drive Unit | 1 | ||||||
| 16 | 32-848956 | HOSE-Oil Cooler to Oil Cooler | 1 | 32-12818 | |||||
| 17 | 22-13177 | TUBE-Water Hose | 1 | (NON POWER STEERING) | |||||
| 18 | 32-896998 | HOSE-Oil Cooler to Thermostat Housing | 1 | 32-64346 | |||||
| 19 | 32-897181 | HOSE-Thermostat Housing to Water Pump | 1 | ||||||
| 20 | 54-180768 | CLAMP | 2 | ||||||
| 21 | 32-897491 | HOSE-Thermostat Cover | 1 | (PORT) | |||||
| 22 | 32-897301 | HOSE-Thermostat Cover | 1 | (STARBOARD) | |||||
| 23 | 54-180764 | CLAMP | 8 | ||||||
| 24 | 32-8M0062614 | HOSE (48.00 In. Bulk) (Cut 17.00 In.) | 2 | 32-3322070 | |||||
| 24 | 32-847764A2 | HOSE ASSEMBLY (17.00 In.) | 2 | This Part is No Longer Available | |||||
| 25 | 12552 | LIFTING EYE | 1 | ||||||
| 26 | 54-84775218 | CLAMP-Hose | 4 | ||||||
| - | 27-818572A98 | Gasket Set | - | 27-818572A94 |
