450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Distributor And Ignition Components

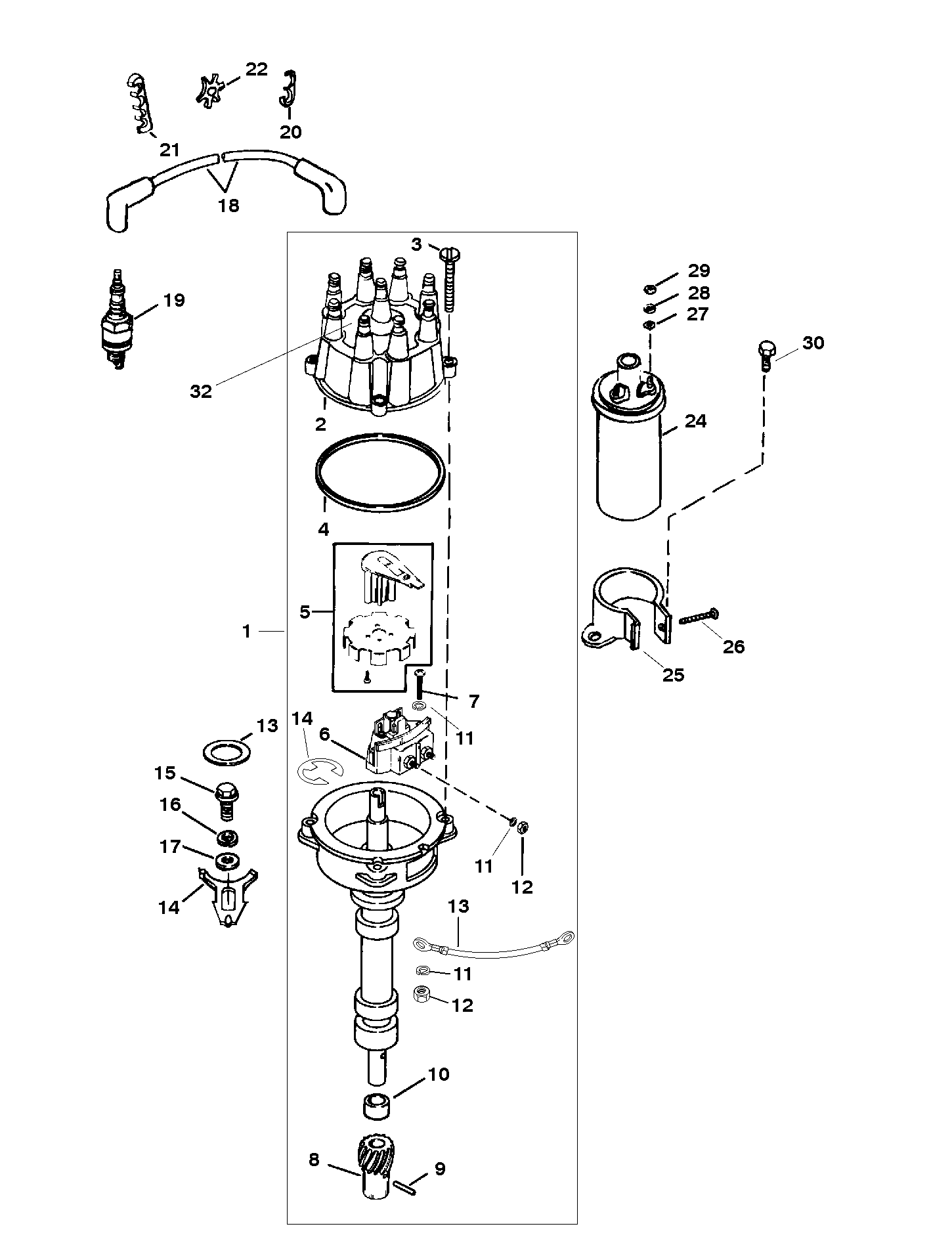

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 805185A36 | DISTRIBUTOR ASSEMBLY | 1 | 90747A27 | |||||
| 2 | 805759T1 | CAP ASSEMBLY | 1 | 805759A2 | |||||
| 3 | 27-805760 | GASKET-Distributor Cap | 1 | 1 | |||||
| 4 | 10-90926 | SCREW (#10-32 x .812) | 4 | ||||||
| 5 | 13524T1 | WHEEL ASSEMBLY-Rotor Sensor | 1 | 13524A5 | 6 | ||||
| 6 | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-91019A3 | |||||
| 7 | 10-66686 | SCREW (#10-32 x 1.00) | 1 | ||||||
| 7 | 10-72202 | SCREW (#10-32 x 1.250) | 1 | ||||||
| 8 | 43-818807 | GEAR-Drive | 1 | ||||||
| 9 | 17-47617 | PIN | 1 | ||||||
| 10 | 23-90915 | BUSHING | 2 | ||||||
| 11 | 13-26996 | LOCKWASHER (#10) | 5 | ||||||
| 12 | 11-68219 | NUT (#10-32) | 3 | ||||||
| 13 | 84-86322A17 | CABLE ASSEMBLY (Black) | 1 | This Part is No Longer Available | |||||
| 14 | 53-90916 | RING-Retaining | 1 | ||||||
| 15 | 27-344863 | GASKET | 1 | 1 | |||||
| 16 | 52185 | CLAMP | 1 | ||||||
| 17 | 10-34353 | SCREW (.375-16 x 1.00) | 1 | ||||||
| 18 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 19 | 12-20553 | WASHER | 1 | ||||||
| 20 | 84-816608Q61 | CABLE KIT-Ignition-Spark Plugs (RED) | 1 | 84-816608A61 | |||||
| 20 | 84-847701Q7 | CABLE KIT-Ignition-Spark Plugs & Coil (BLUE) | 1 | 84-847701A7 | |||||
| 21 | 33-898264001 | SPARK PLUG | 8 | 33-59571 | |||||
| 22 | 54676 | RETAINER (2 WIRE) | 2 | ||||||
| 23 | 32783 | RETAINER (3 WIRE) | 2 | ||||||
| 24 | 32784 | RETAINER (4 WIRE) | 4 | ||||||
| 25 | 300-8M0079202 | COIL KIT-Ignition | 1 | 392-805570A2 | |||||
| 26 | 65970T1 | BRACKET-Coil Mount (On Electrical Bracket) | 1 | 65970T | 6 | ||||
| 27 | 10-41408 | SCREW (#10-32 x 1.500) | 1 | ||||||
| 28 | 12-30164 | WASHER | 2 | ||||||
| 29 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 30 | 11-68219 | NUT (#10-32) | 2 | ||||||
| 31 | 10-98261 | SCREW (.375-16 x .750) | 2 | ||||||
| 32 | 37-92155 | DECAL-Distributor Cap-Firing Order | 1 | ||||||
| - | 27-818572A98 | Gasket Set | - | 27-818572A94 |
