450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Fuel Pump And Fuel Filter

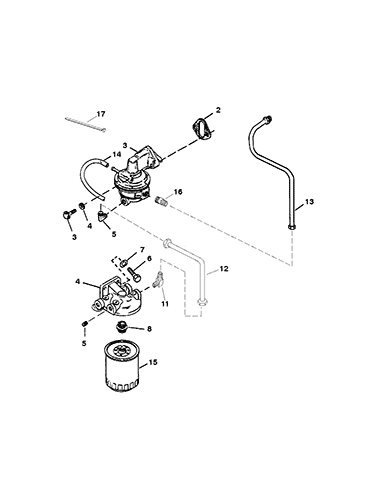

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY-Fuel | 1 | 818383T | |||||
| 2 | 27-34213 | GASKET-Fuel Pump | 1 | 1 | |||||
| 3 | 10-34354 | SCREW (.375-16 x 1.500) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (.375) | 2 | ||||||
| 5 | 22-93385 | FITTING (90 DEGREES) | 1 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY-Fuel Filter | 1 | ||||||
| 7 | 22-32561 | PLUG-Pipe | 3 | ||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 10-28782 | SCREW (.312-18 x .875) | 2 | ||||||
| 10 | 13-26993 | LOCKWASHER (.312) | 2 | ||||||
| 11 | 22-93385 | FITTING (90 DEGREES) | 1 | ||||||
| 12 | 32-848602 | LINE-Fuel-Filter to Pump | 1 | ||||||
| 13 | 32-822843 | LINE-Fuel-Fuel Pump to Carburetor | 1 | This Part is No Longer Available | |||||
| 14 | 32-8M8023638 | TUBING (36.00 In. Bulk)-Fuel Pump to Carburetor | 1 | 32-84862864 | (Cut as Req'd) | ||||
| 15 | 35-802893Q01 | FILTER-Fuel | 1 | 35-807172 | |||||
| 16 | 22-33821 | CONNECTOR (Straight) | 1 | ||||||
| 17 | 56762 | CABLE TIE (4.00 In.) | 5 | ||||||
| - | 27-818572A98 | Contents of Gasket Set | - | 27-818572A94 |
