450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Cylinder Block And Camshaft

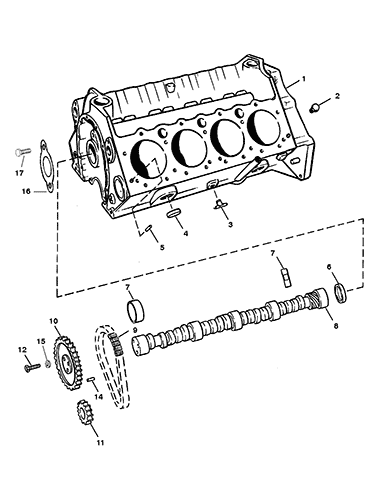

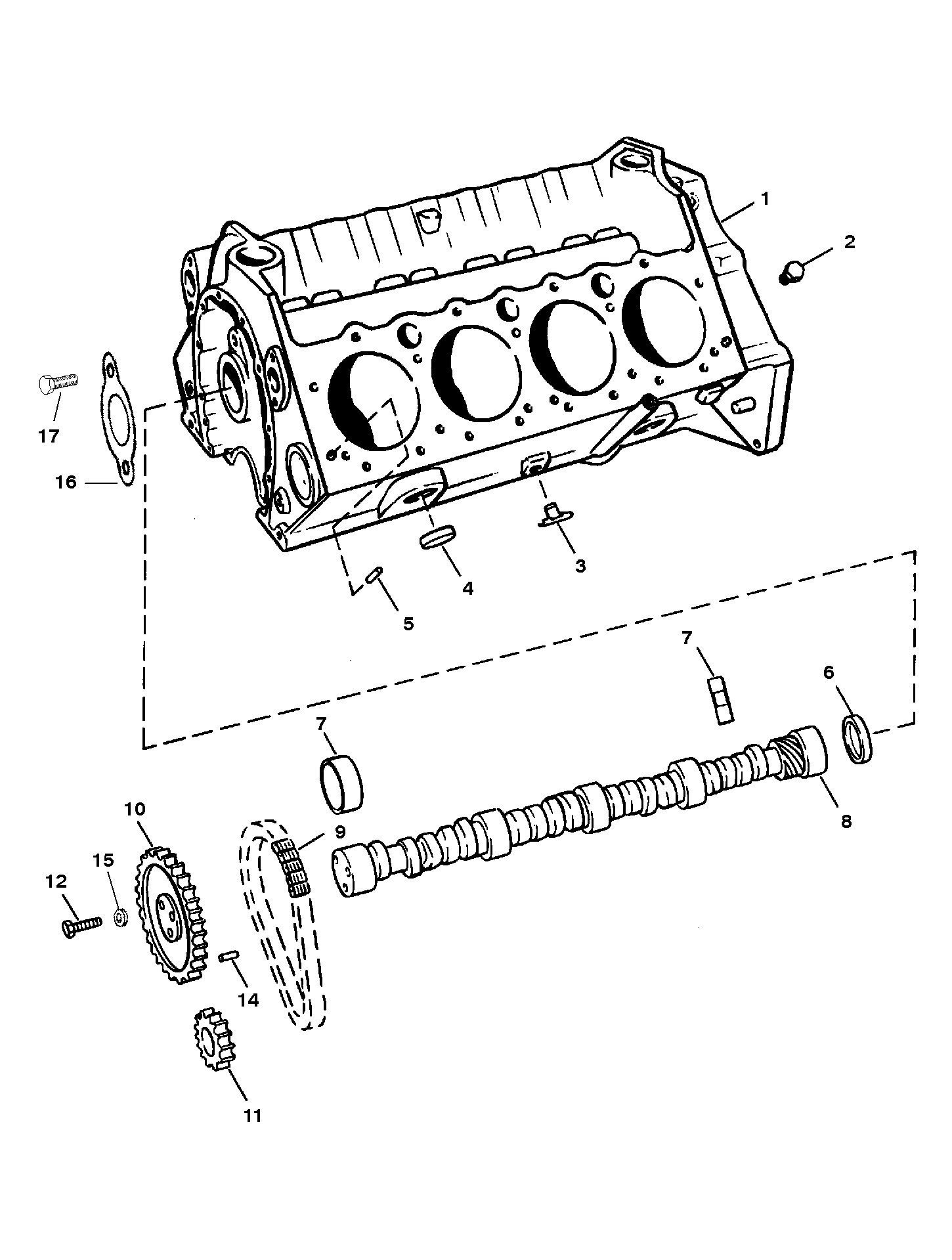

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| 4 LONG BLOCK MARINE ENGINE INCLUDES INTERNAL PARTS AND CYLINDER HEADS 5 Note 1: CYLINDER BLOCK ASSEMBLY INCLUDES ONLY STANDARD PISTONS, PISTON RINGS, CRANKSHAFT BEARING AND CAMSHAFT BEARINGS. 6 Note 2: BRAVO MODELS WITH DRIVELINE ALSO REQUIRE FLYWHEEL PART NUMBER [230-811563] AND PILOT BUSHING PART NUMBER [23-49126]. 7 Note 3: ORDER REF. NO.'S 16 & 17 WITH BLOCK ASSEMBLY. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 848272A7 | LONG BLOCK MARINE ENGINE | 1 | This Part is No Longer Available (SEE NOTE #2) | |||||
| 1 | 842-801999 | BLOCK ASSEMBLY-Cylinder | 1 | This Part is No Longer Available (SEE NOTE #1, #3) | |||||
| 2 | 22-32561 | PLUG-Pipe (.250) | 4 | 22-48340 | |||||
| 2 | 22-48358T | PLUG-Pipe (.375) | 2 | 22-48358 | |||||
| 3 | 22-16951Q1 | COCK ASSEMBLY-Drain | 4 | 22-16951A1 | |||||
| 4 | 22-69300 | PLUG-Expansion (1.750) | 8 | ||||||
| 5 | 17-52190 | PIN-Dowel | 4 | ||||||
| 6 | 19-94140 | PLUG-Expansion | 1 | ||||||
| 7 | 23-85684 | BEARING UNIT (SET) | 1 | ||||||
| 8 | 848158T1 | TAPPET SET (Set of two) | 8 | 848158A1 | This Part is No Longer Available | ||||
| 9 | 2409-848906A1 | CAMSHAFT | 1 | 2409-848491 | 6 | ||||
| 10 | 845796T | CHAIN-Timing | 1 | 811580 | |||||
| 11 | 8115781 | SPROCKET-Camshaft | 1 | 8115782 | 6 | ||||
| 12 | 43-845794T | SPROCKET-Crankshaft | 1 | 43-811579 | |||||
| 13 | 10-34505 | SCREW (.312-18 x .750) | 3 | ||||||
| 14 | 17-843378 | PIN-Dowel (.250) | 1 | 17-35312 | |||||
| 15 | 12-848136 | WASHER | 3 | ||||||
| 16 | 23-491241 | PLATE-Gear Thrust | 1 | This Part is No Longer Available | |||||
| 17 | 10-848155 | SCREW (.250-20 x .500) | 2 | This Part is No Longer Available | |||||
| NS | 92-809826 | SEALER-Red RTV (Where Applicable) | 1 | 92-916011 | 6 | ||||
| NS | 34227Q02 | PERFECT SEAL (Where Applicable) | 1 | 92-342271 | |||||
| NS | 27-818572A98 | GASKET SET-Engine Overhaul | 1 | 27-818572A94 | |||||
