450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Carburetor And Linkage

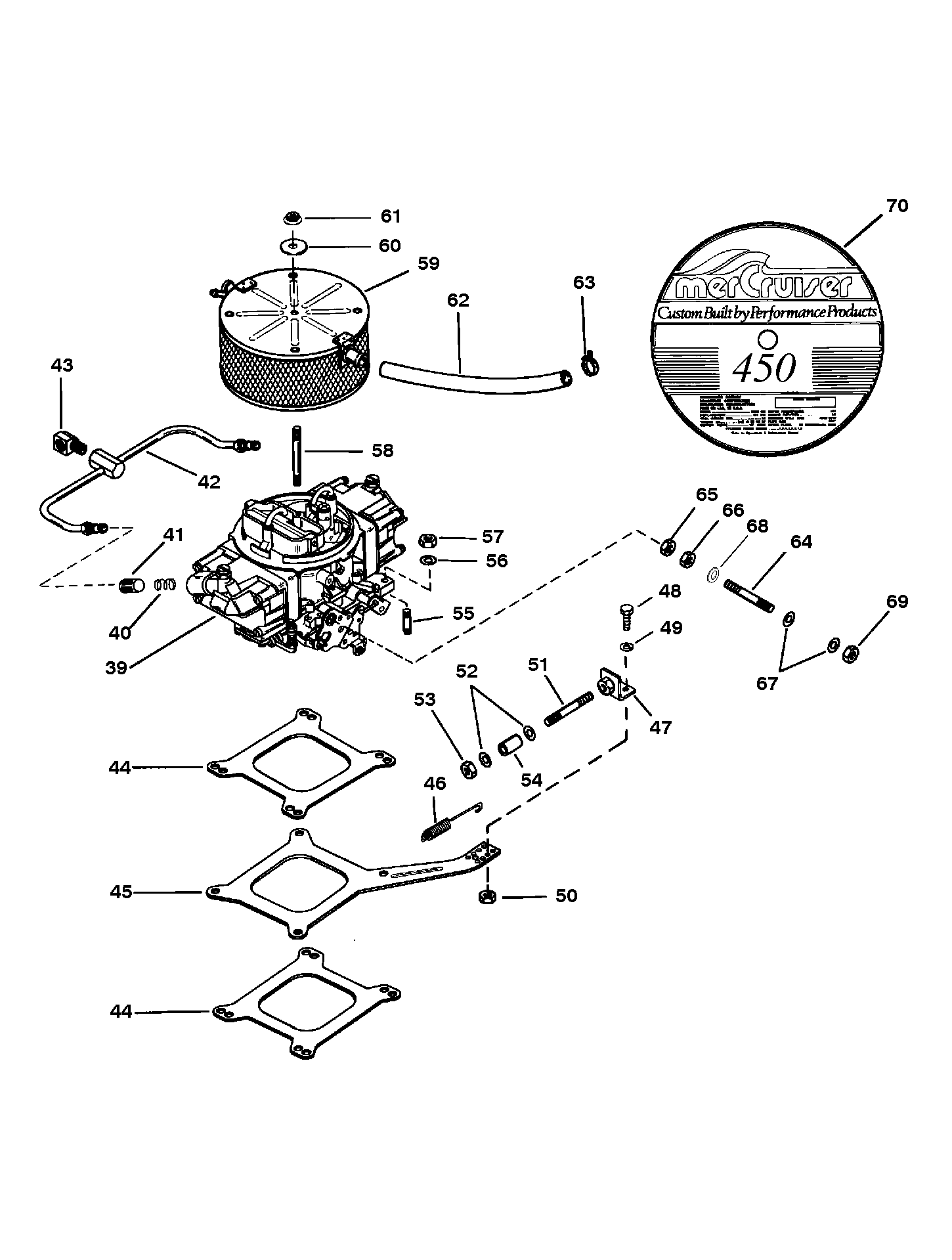

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 13549T31         CARBURETOR (BLUE) 1 13549A14 This Part is No Longer Available
2 24-48143         SPRING-Filter 2

3 35-93568         FILTER 2

4 32-94068A1         TUBE-Fuel Inlet 1 32-94068 6
5 22-93385         ELBOW-Fuel Inlet Tube 1

NS 13220         REBUILD KIT-Carburetor Overhaul 1
2
NS 816827         PUMP KIT-Accelerator 1   This Part is No Longer Available 2
NS 1399-650875         JET-Main (.082) 1   This Part is No Longer Available 2
NS 1399-650893         JET-Main (.105) 1
2
NS 1399-650889         JET-Main (.104) 1
2
NS 1399-650881         JET-Main (.093) 1
2
NS 848243         POWER VALVE 1
2
6 27-41610         GASKET-Spacer 2
1
7 940701         BRACKET-Throttle 1

8 24-897454         SPRING-Throttle Return 1 24-32817
9 15017         BRACKET-Throttle 1

10 10-78291         SCREW (.187-24 x .500) 2

11 13-26996         LOCKWASHER (#10) 2

12 11-79989         NUT (#10-24) 2

13 16-98851         STUD 1
No longer made, limited availability
14 12-69056         WASHER 2 12-21631
15 23-31866         SPACER-Cable Stud 1

16 11-826709109         NUT (.250-28) 1 11-35045
17 16-46857         STUD 4

18 12-848136         WASHER 4

19 11-82670911         NUT (.312-24) 4 11-35814
20 16-848176         STUD-Flame Arrestor 1

21 8481711         ARRESTOR-Flame 1 848171 This Part is No Longer Available
22 12-86400         WASHER 1

23 11-35888   676-9-72001 700-21180   NUT (.250-28) 1

24 32-821284A9         HOSE ASSEMBLY (7.00 In.)-Vent 2   This Part is No Longer Available
25 54-84763012         CLAMP-Vent Hose 4   This Part is No Longer Available
26 16-96112         STUD-Throttle Cable to Carburetor 1

27 11-8267089         NUT (.250-28) 1 11-20361
28 12-28426         WASHER (.250-28) 1

29 12-29245     700-21490   WASHER 3

30 23-818894         BUSHING-Throttle Cable Stud 1

31 11-8267089         NUT (.250-28) 1 11-20361
32 37-848271         DECAL-Flame Arrestor 1   This Part is No Longer Available
- 27-818572A98         Gasket Set - 27-818572A94
