1350 QC4V - Serial 0M965309 and Up - Air Intake Cover

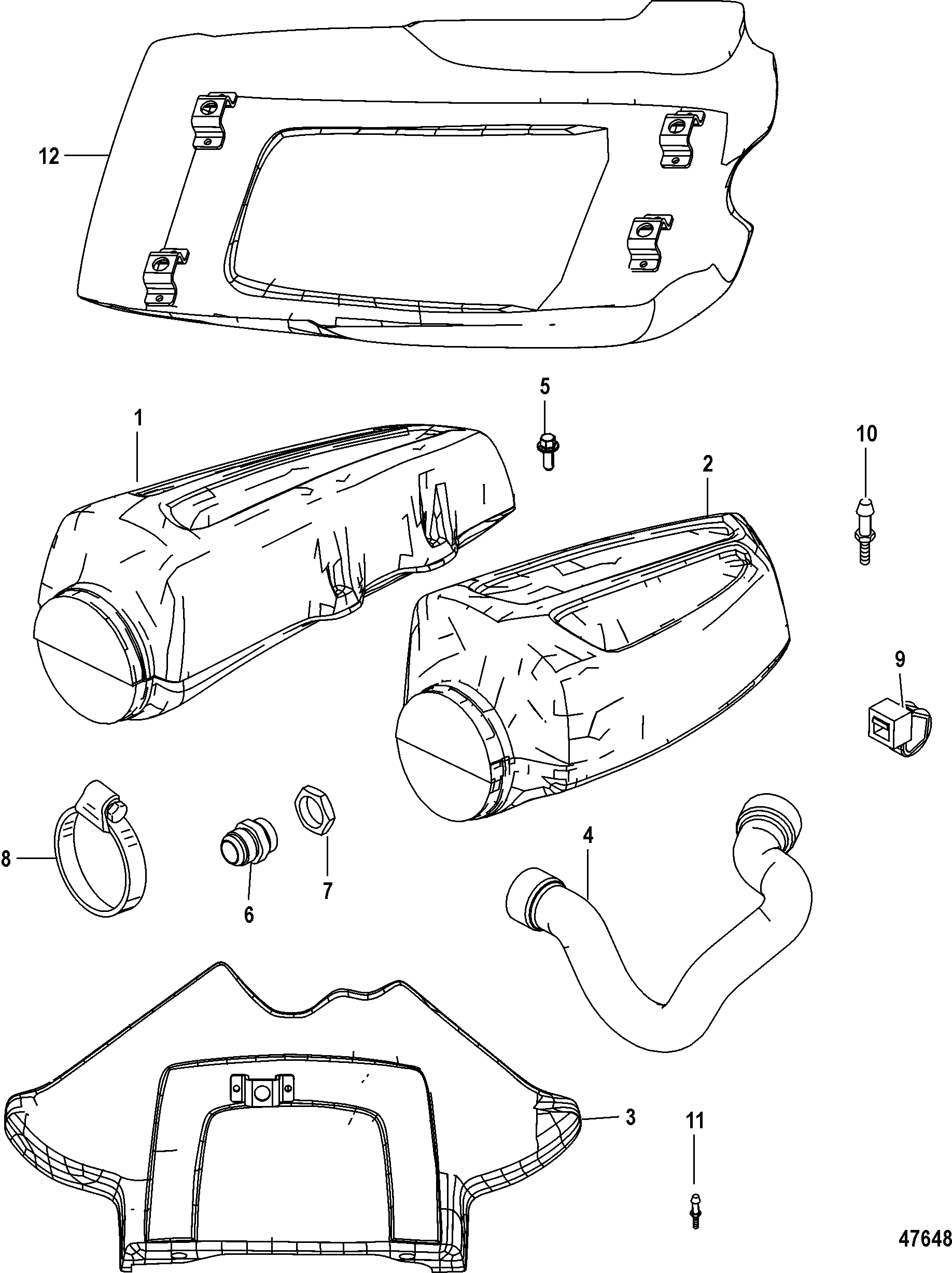

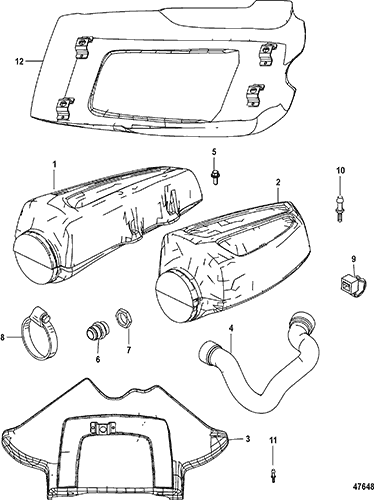

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 8M8026070 | DRESS KIT, Carbon Fiber | 1 | ||||||
| 1 | 8M0047506 | INTAKE ASSEMBLY | 1 | Starboard | |||||
| 2 | 8M0047713 | INTAKE ASSEMBLY | 1 | Port | |||||
| 3 | 8M0048020 | COVER, Front | 1 | ||||||
| 4 | 32-8M0048271 | HOSE | 1 | ||||||
| 5 | 10-88552512 | SCREW, (M6 x 12 MM) Stainless Steel | 6 | ||||||
| 6 | 22-8M0052472 | FITTING | 1 | ||||||
| 7 | 11-8M0052473 | NUT | 1 | ||||||
| 8 | 54-815504280 | CLAMP, Worm Gear | 2 | ||||||
| 9 | 54-850181 | TIE STRAP, (11.750 Inches) | 2 | ||||||
| 10 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| NS | 25-90329 | GROMMET | 3 | ||||||
| 11 | 8M0048023 | COVER, Top, Electrical Plate | 1 | ||||||
| NS | 37-8M0059268 | DECAL SET, Top Cover (1100/1350) | 1 |
