1350 QC4V - Serial 0M965309 and Up - Oil Pan and Pump (0M966911 and Below)

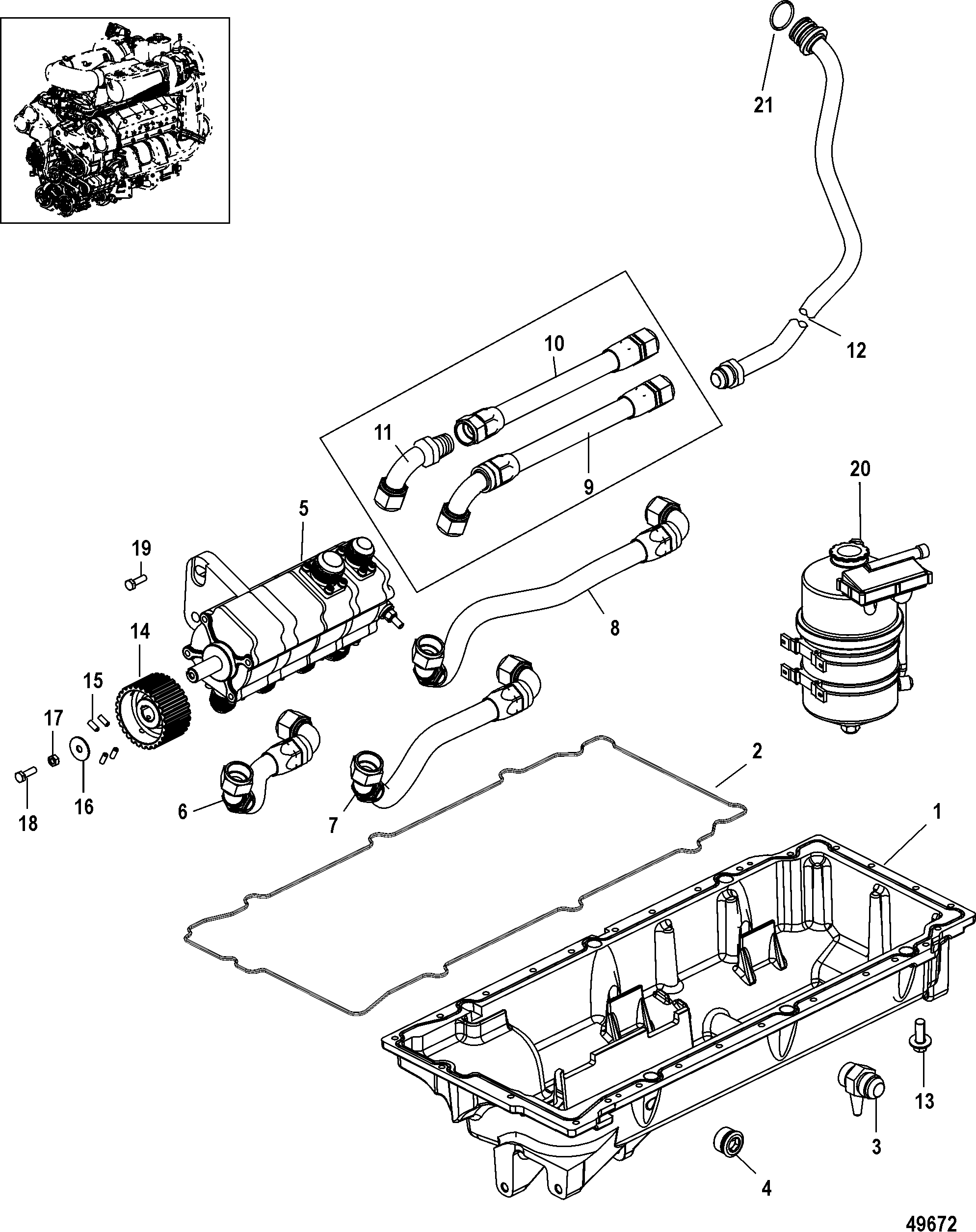

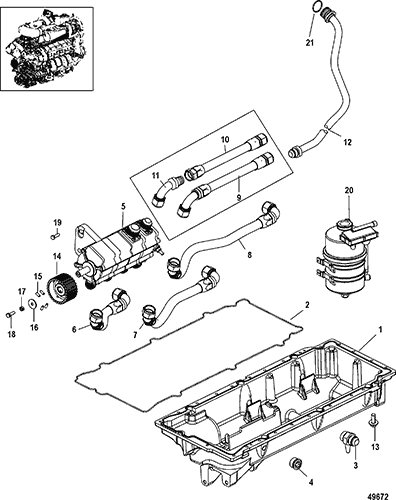

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0082012



OIL PAN KIT 1 8M0058452
2 8M0047042



SEAL, Oil Pan 1

3 8M0050231



FITTING ASSEMBLY, With Screen And O-Ring 3

4 19-8M0049794



PLUG, Steel 1

5 8M0084428



OIL PUMP ASSEMBLY 1 8M0058453
6 32-8M0033819



HOSE, Oil, Forward 1

7 32-8M0033820



HOSE, Oil, Center Scavenge 1

8 32-8M0033822



HOSE, Oil, Aft Scavenge 1

9 32-8M8027376



HOSE, Oil 1 32-8M0058011 DESIGN I
10 32-8M0063157



HOSE, Oil 1
DESIGN II, Component of 8M8027376
11 32-8M0062712



TUBE, (90 Degree), Oil 1
DESIGN II, Component of 8M8027376
12 32-8M0057956



LINE ASSEMBLY, Oil, Pump to Filter 1

13 10-4010620



SCREW, (M6 x 20) Stainless Steel 27

14 8M0060770



PULLEY, (28 Teeth), Oil Pump 1

15 10-36158



SET SCREW, Socket Head (#10-32 x .500) 4

16 12-35280



WASHER, (.255 x .620 x .030) Stainless Steel 1

17 11-64015



NUT, (.250-20) 1

18 10-28636



SCREW, (.250-20 x .750) 1

19 10-4010835



SCREW, (M10 x 35) Hex Flange - Stainless Steel 1

20 8M0007324



OIL TANK 1

- 8M8027376



OIL LINE KIT 1
(Replaces one piece oil line)
