Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

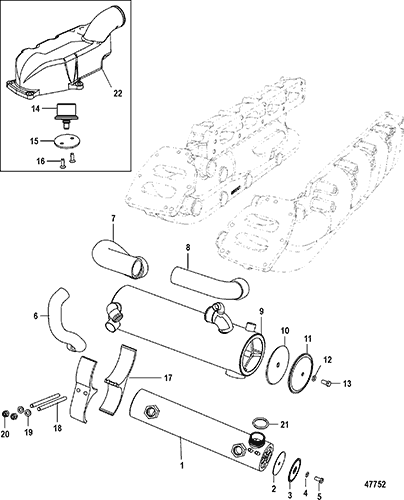

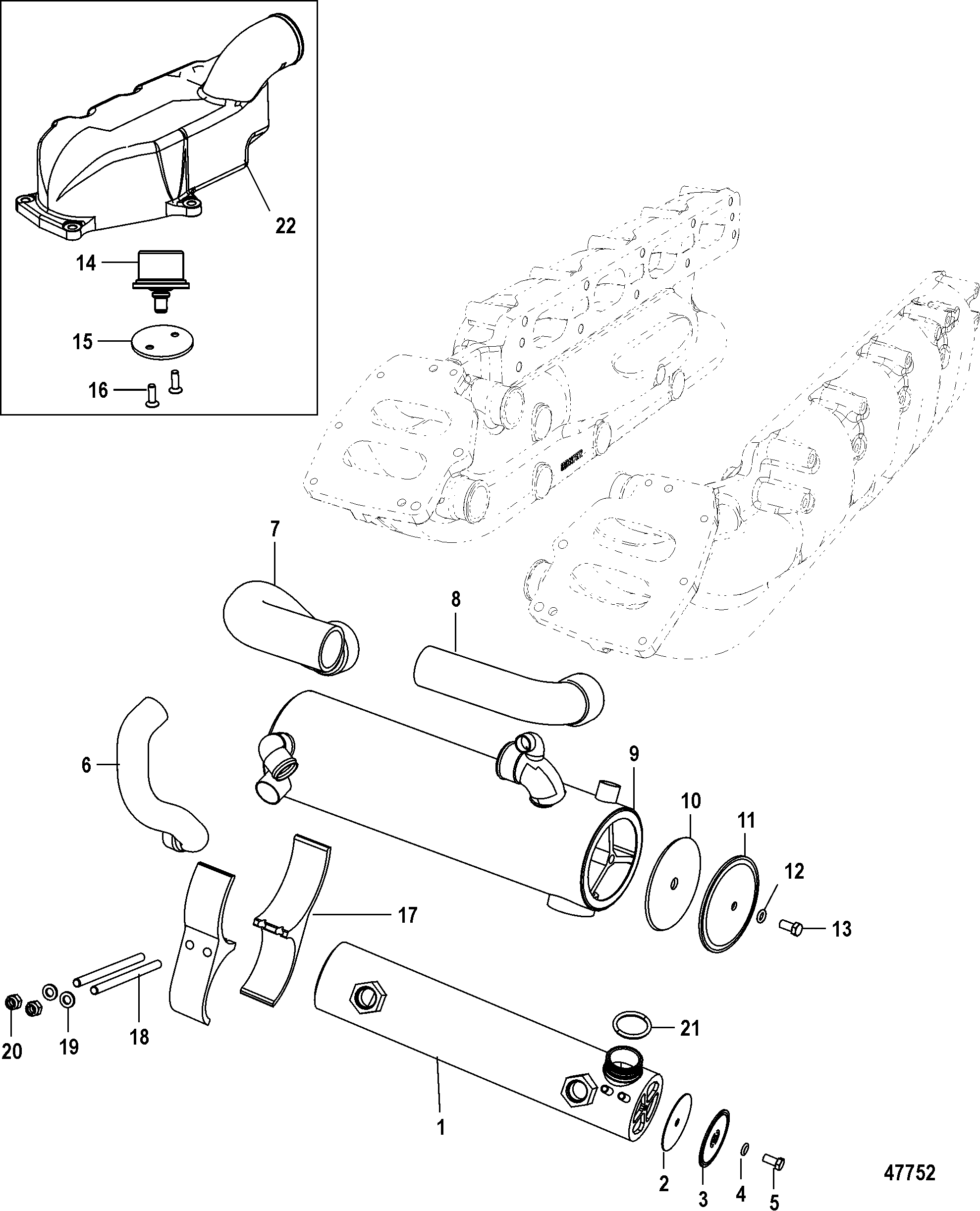

1 |
8M0058661 |
|
|
|
|
OIL COOLER, Engine |
1 |
|
|
2 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, GASKET |
2 |
|
This Part is not sold separately |
3 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, COVER |
2 |
|
This Part is not sold separately |
4 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, O-RING |
2 |
|
This Part is not sold separately |
5 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
2 |
|
|
6 |
32-8M0045044 |
|
|
|
|
HOSE, Cooler to Port Manifold |
1 |
|
|
7 |
32-8M0032279 |
|
|
|
|
HOSE, Cooler to Engine |
1 |
|
|
8 |
32-8M0032278 |
|
|
|
|
HOSE, Thermostat Housing to Cooler |
1 |
|
|
9 |
8M0058662 |
|
|
|
|
HEAT EXCHANGER |
1 |
|
|
10 |
27-866152 |
|
|
|
|
SEAL |
2 |
|
|
11 |
864708 |
|
|
|
|
COVER |
2 |
|
|
12 |
8M0039163 |
|
|
|
|
O-RING, (3/8 x 1/8) |
2 |
|
|
13 |
10-94247 |
|
|
|
|
SCREW, (.375-16 x .750) Stainless Steel |
2 |
|
|
13 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
2 |
|
|
14 |
8M0039107 |
|
|
|
|
THERMOSTAT |
1 |
|
|
15 |
8M0047664 |
|
|
|
|
DISK, Thermostat Stop |
1 |
|
|
16 |
10-8M0022382 |
|
|
|
|
SCREW , (M6 x 20) |
2 |
|
|
17 |
8M0042584 |
|
|
|
|
BRACKET, Cooler Mount |
4 |
|
|
NS |
863392 |
|
|
|
|
PAD |
8 |
|
|
18 |
16-815443002 |
|
|
|
|
STUD, (M10 x 165) |
4 |
|
|
19 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
4 |
|
|
20 |
11-4013610 |
|
|
|
|
NUT, (M10) Stainless Steel |
4 |
|
|
21 |
25-26855 |
|
676-9-76541 |
|
|
O-RING, (1.609 x .139) |
2 |
|
|
22 |
8M0082762 |
|
|
|
|
THERMOSTAT HOUSING |
1 |
8M0022858 |
|
