1350 QC4V - Serial 0M965309 and Up - Cylinder Block

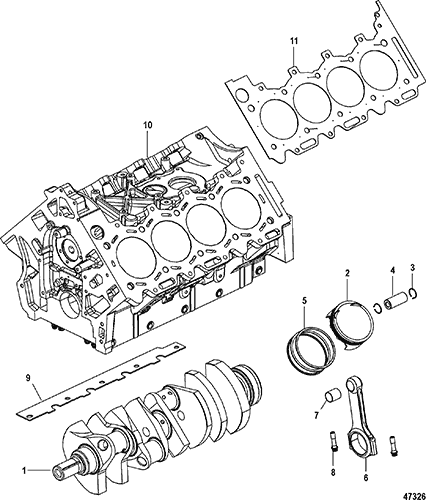

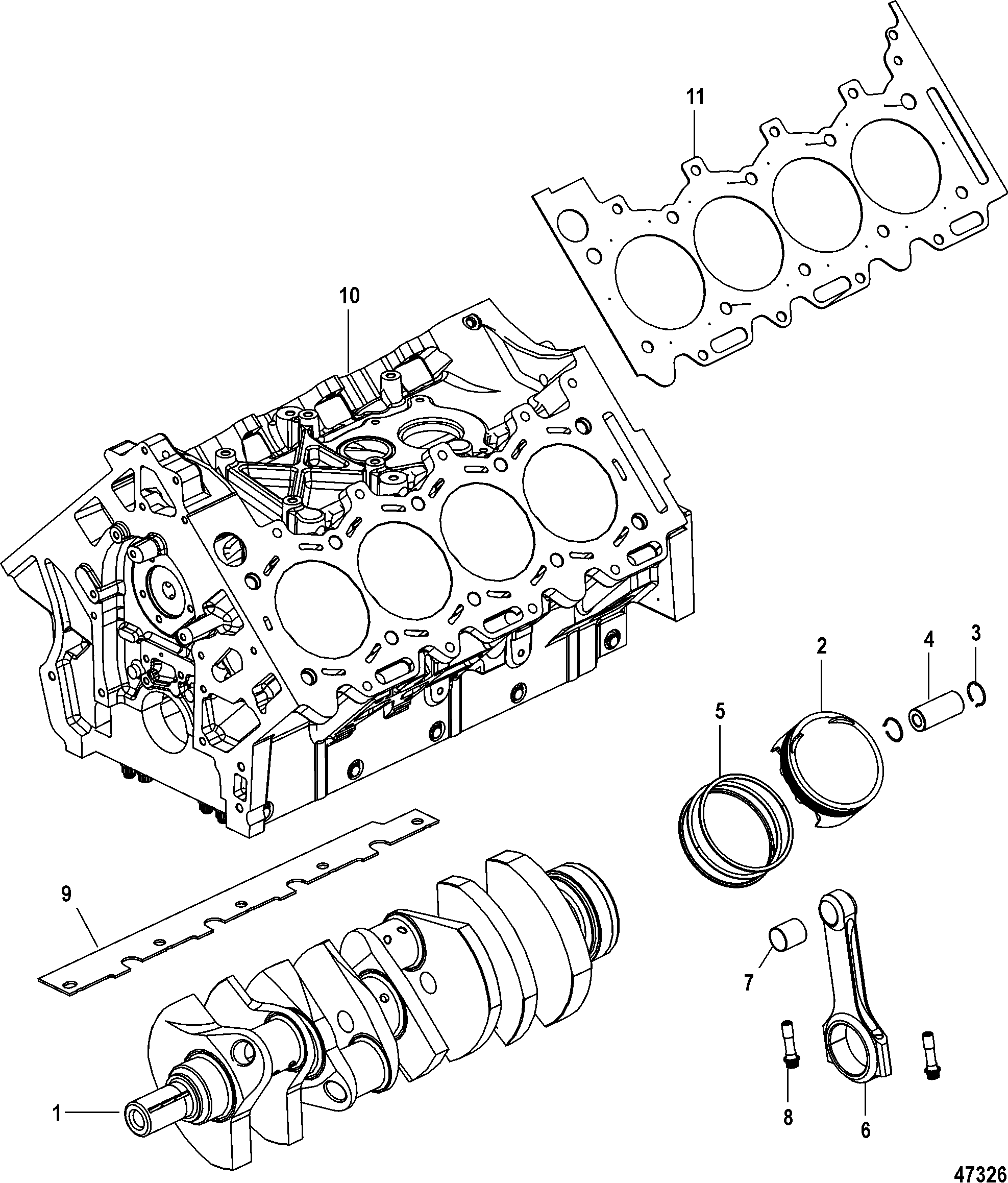

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 400-8M0058716 | CRANKSHAFT | 1 | ||||||
| 2 | 700-8M0058439 | PISTON ASSEMBLY | 8 | ||||||
| 3 | NSS | NOT SOLD SEPARATE, CLIP | 16 | This Part is not sold separately | |||||
| 4 | NSS | NOT SOLD SEPARATE, PIN | 8 | This Part is not sold separately | |||||
| 5 | 39-8M0062936 | RING SET, Piston | 8 | ||||||
| 6 | 600-8M0058440 | CONNECTING ROD ASSEMBLY | 8 | ||||||
| 7 | NSS | NOT SOLD SEPARATE, BUSHING | 8 | This Part is not sold separately | |||||
| 8 | 10-8M0000838 | SCREW, Special | 16 | ||||||
| 9 | 8M0034796 | SCRAPER, Oil | 1 | ||||||
| 10 | NSS | NOT SOLD SEPARATE, Cylinder Block | 1 | This Part is not sold separately | |||||
| 11 | 27-8M0054656 | GASKET, Cylinder Head | 2 |
