1350 QC4V - Serial 0M965309 and Up - Intercooler Assembly

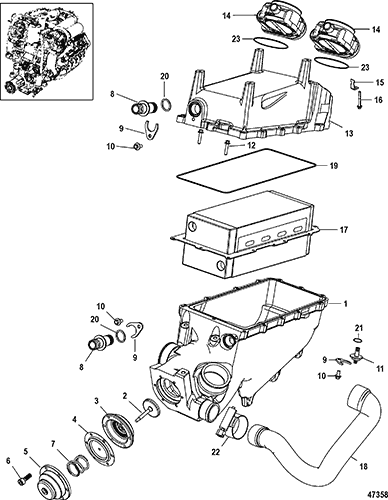

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0059918 | HOUSING, Charge Air Cooler (Lower) | 1 | ||||||
| 2 | 8M0084117 | VALVE, Bypass | 1 | 8M0044281 | |||||
| 3 | 8M0044209 | GUIDE | 1 | ||||||
| 4 | 8M0045176 | BYPASS | 1 | ||||||
| 5 | 8M0045074 | DIAPHRAGM | 1 | ||||||
| 6 | 10-4008825 | SCREW, (M6 x 25) | 5 | ||||||
| 7 | 24-8M0044116 | SPRING | 1 | ||||||
| 8 | 8M0010659 | COUPLER | 2 | ||||||
| 9 | 8M0010661 | RETAINER | 3 | ||||||
| 10 | 10-4010716 | SCREW, (M8 x 16) | 3 | ||||||
| 11 | 22-8M0030306 | FITTING, Intercooler Drain | 1 | ||||||
| 12 | 10-88552530 | SCREW, (M6 x 20 MM) Stainless Steel | 13 | ||||||
| 13 | 8M0059916 | HOUSING, Charge Air Cooler (Upper) | 1 | ||||||
| 14 | 877828T02 | CONTROL, Throttle - Electronic | 2 | ||||||
| 15 | 884353 | BRACKET | 1/2 | ||||||
| 16 | 10-88552550 | SCREW, (M6 x 50 MM) Stainless Steel | 4/8 | ||||||
| 17 | 8M0059917 | COOLER, Charge Air | 1 | ||||||
| 18 | 32-8M0048271 | HOSE, Compressor Bypass | 1 | 1350 | |||||
| 19 | 25-8M0048117 | O-RING, Charge Air Cooler | 2 | ||||||
| 20 | 25-35480 | O-RING, (1.237 x .103) | 2 | ||||||
| 21 | 25-35480 | O-RING, (1.237 x .103) | 1 | ||||||
| 22 | 54-180768 | CLAMP, Worm Gear | 1 |
