1350 QC4V - Serial 0M965309 and Up - Transmission, Driveline

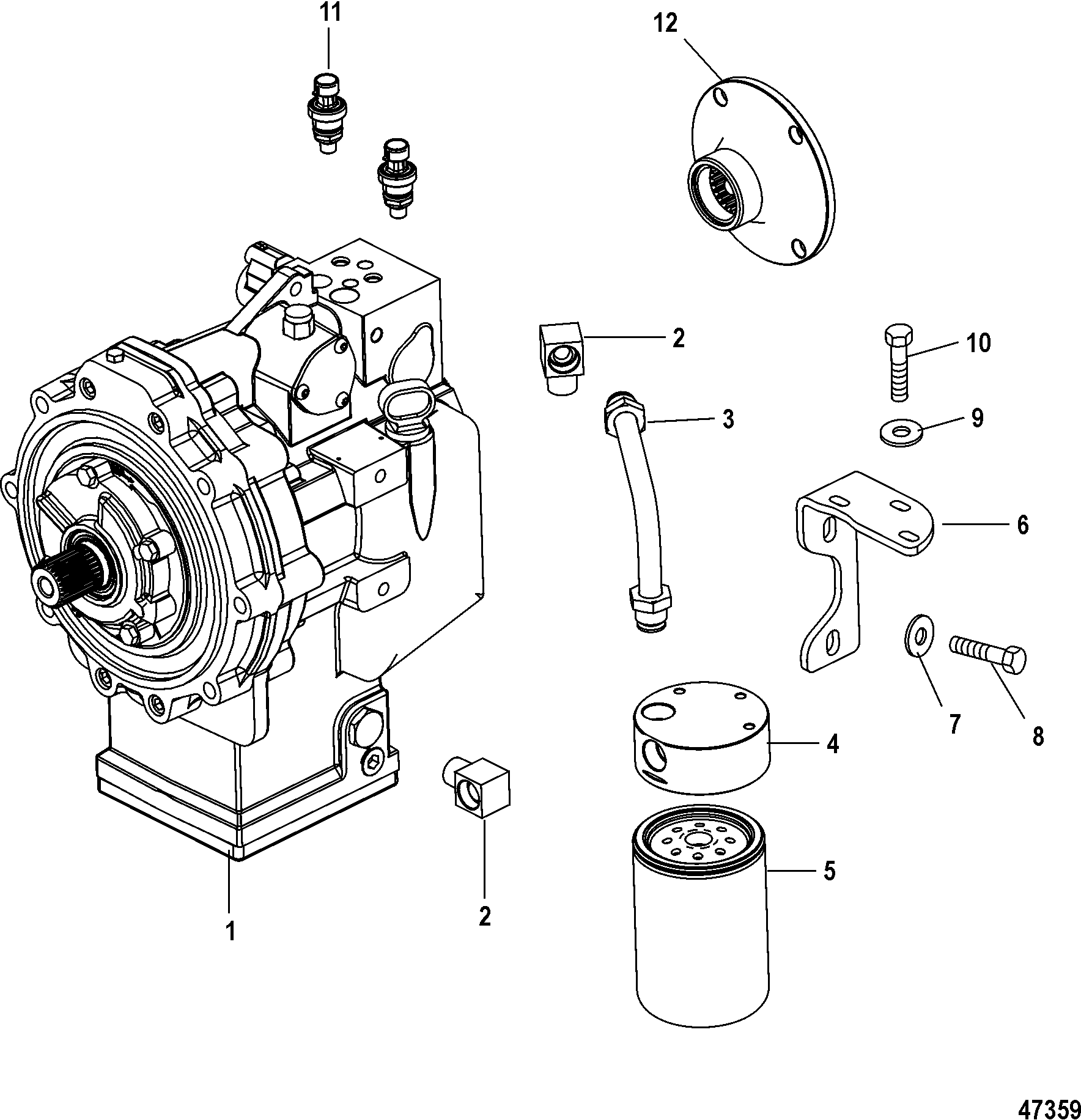

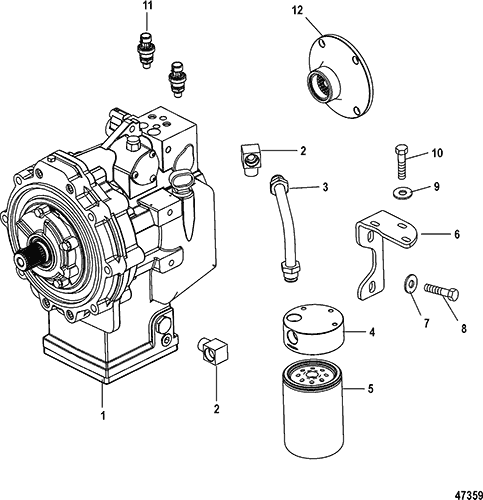

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M8027395 | TRANSMISSION | 1 | ||||||
| 2 | 22-63825 | ELBOW | 2 | ||||||
| 3 | 32-8M0047656 | TUBE, Oil, Oil Filter | 1 | ||||||
| 4 | 8M0047653 | ADAPTER | 1 | ||||||
| 5 | 35-881126K01 | FILTER, Oil | 1 | ||||||
| 6 | 8M0047654 | BRACKET, Mounting | 1 | ||||||
| 7 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 8 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 2 | ||||||
| 9 | 12-F506186 | WASHER, (.340 x .734 x .105) Stainless Steel | 3 | ||||||
| 10 | 10-37562 | 700-21756 | SCREW, (.312-18 x 1.00) Stainless Steel | 3 | |||||
| 11 | 8M0007568 | TRANSDUCER, 500 PSI | 2 | ||||||
| 12 | 8M0047040 | FLANGE KIT | 1 |
