1350 QC4V - Serial 0M965309 and Up - Turbocharger, Wastegate Adapter

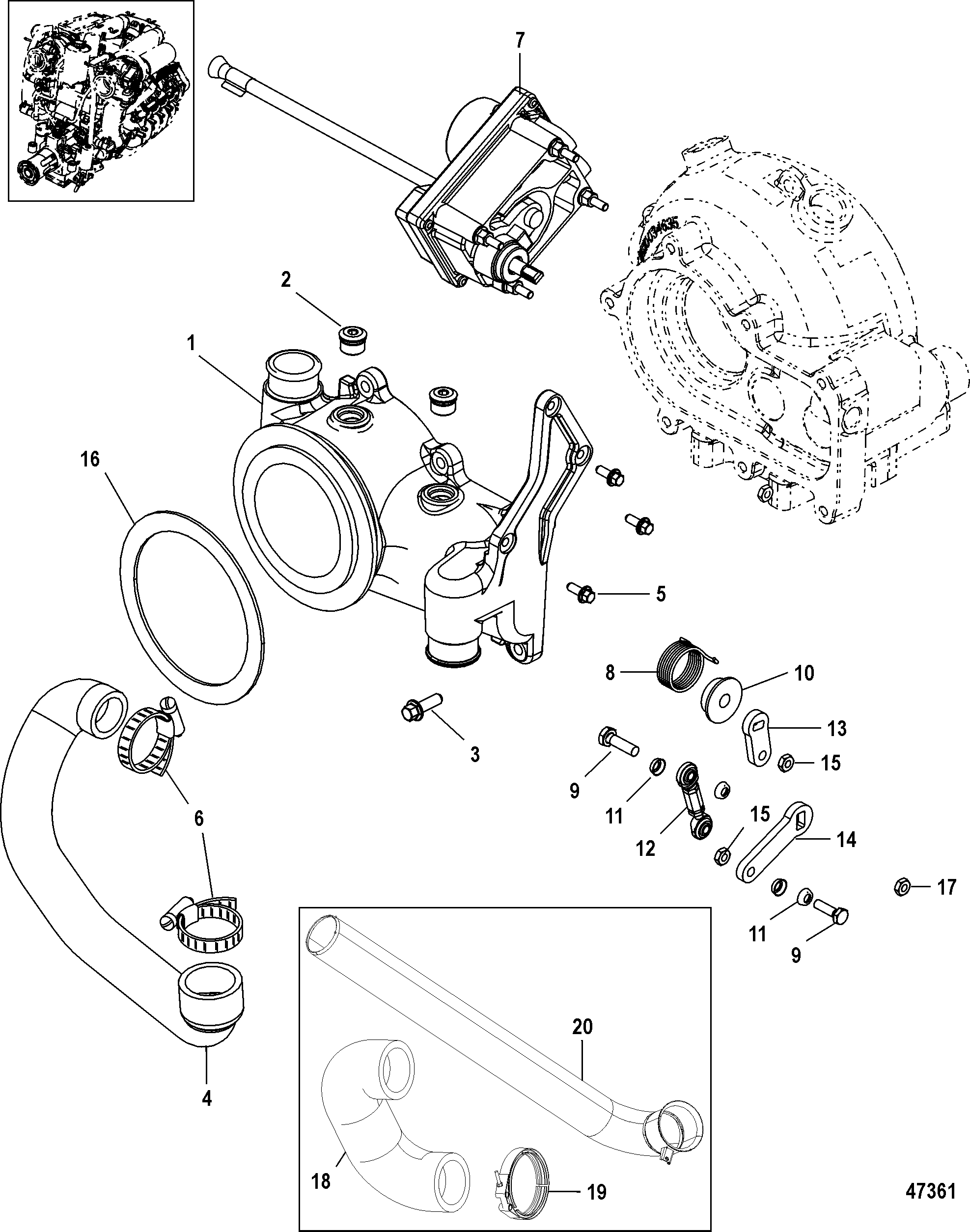

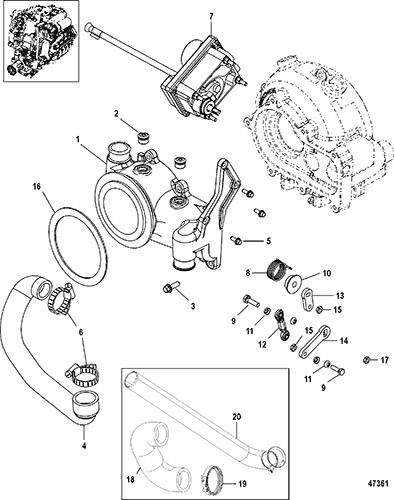

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M8025992 | WASTEGATE ADAPTER | 1 | ||||||
| 2 | 19-891953 | PLUG, (18 mm) | 4 | ||||||
| 3 | 10-4010725 | SCREW, (M8 x 25) | 7 | ||||||
| 4 | 32-8M0045048 | HOSE, Turbo to Tailpipe Adapter | 1 | ||||||
| 5 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 3 | ||||||
| 6 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 7 | 8M0058486 | ACTUATOR, Wastegate | 1 | Starboard | |||||
| 7 | 8M0058487 | ACTUATOR, Wastegate | 1 | Port | |||||
| 8 | 24-8M0045653 | SPRING, Torsion Actuator | 1 | ||||||
| 9 | 10-59702 | SCREW, (.250-28 x .875) Stainless Steel | 2 | ||||||
| 10 | 23-8M0046644 | SPACER, Turbo Spring | 1 | ||||||
| 11 | 8M0057343 | SEAL | 4 | ||||||
| 12 | 8M0059266 | ROD END KIT, Wastegate | 1 | ||||||
| 13 | 8M0043921 | LEVER, Actuator | 1 | ||||||
| 14 | 8M0042209 | LEVER, Wastegate | 1 | ||||||
| 15 | 11-826709109 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 16 | 27-8M0059974 | GASKET, Tailpipe | 1 | ||||||
| 17 | 11-4013810 | NUT, (M10 Hex) | 1 | ||||||
| 18 | 32-8M0060023 | HOSE, Tailpipe | 1 | ||||||
| 19 | 54-8M0060020 | CLAMP, Tail Pipe | 1 | ||||||
| 20 | 8M0059759 | EXHAUST TUBE, Lower Driveline | 1 |
