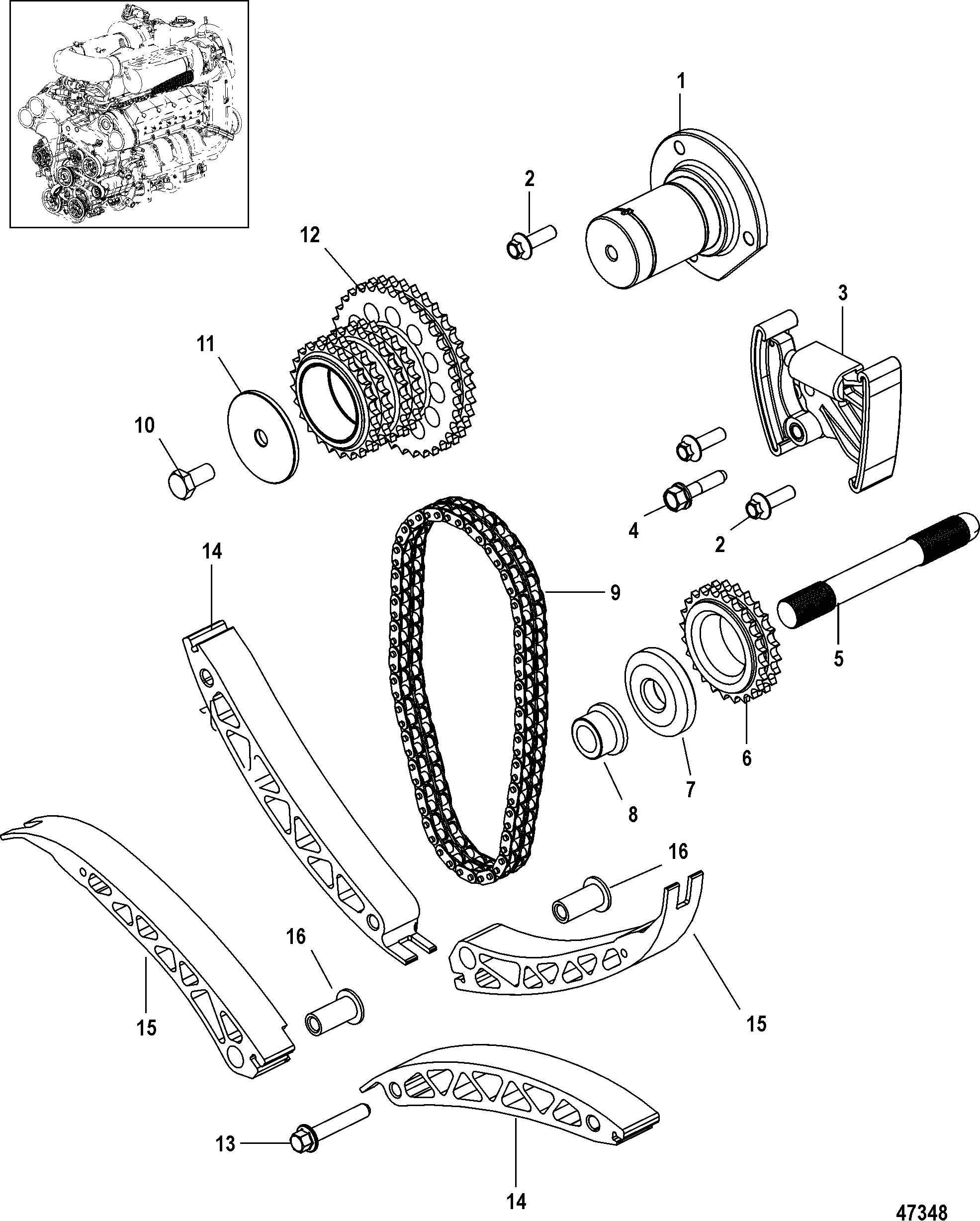

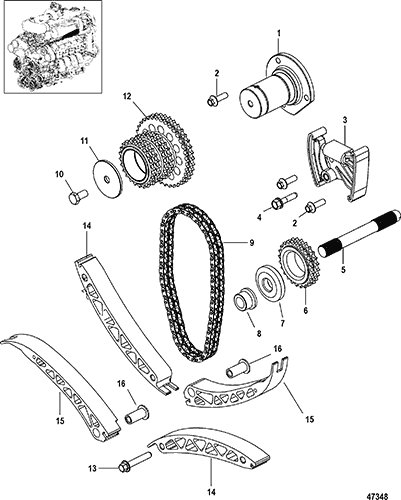

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
Untitled Document
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |
| 1 |
8M0021184 |
|
|
|
|
SPINDLE, Idler Bracket |
1 |
|
|
| 2 |
10-853219 |
|
|
|
|
SCREW, (M8 x 25) |
6 |
|
|
| 3 |
8M0030765 |
|
|
|
|
TENSIONER BODY |
1 |
|
|
| 4 |
10-82127335 |
|
|
|
|
SCREW, (M8 x 35 MM) |
1 |
|
|
| 5 |
16-842627 |
|
|
|
|
STUD, (.750-16 x 6.265) |
1 |
|
|
| 6 |
8M0011743 |
|
|
|
|
SPROCKET, Camshaft |
1 |
|
|
| 7 |
12-842628 |
|
|
|
|
WASHER, Special |
1 |
|
|
| 8 |
11-842626 |
|
|
|
|
NUT, (.750-16) |
1 |
|
|
| 9 |
8M0011749 |
|
|
|
|
TIMING CHAIN |
1 |
|
|
| 10 |
10-40001188 |
|
|
|
|
SCREW, (M10 x 20) |
1 |
|
|
| 11 |
12-8M0027946 |
|
|
|
|
WASHER |
1 |
|
|
| 12 |
8M0011756 |
|
|
|
|
SPROCKET, Idler Shaft |
1 |
|
|
| 13 |
10-892456045 |
|
|
|
|
SCREW |
6 |
|
|
| 14 |
8M0046722 |
|
|
|
|
GUIDE, Fixed |
2 |
|
|
| 15 |
8M0046719 |
|
|
|
|
BLADE, Pivot |
2 |
|
|
| 16 |
23-8M0030364 |
|
|
|
|
BUSHING, Flange |
2 |
|
|
