1350 QC4V - Serial 0M965309 and Up - Power Steering Cooler Assembly

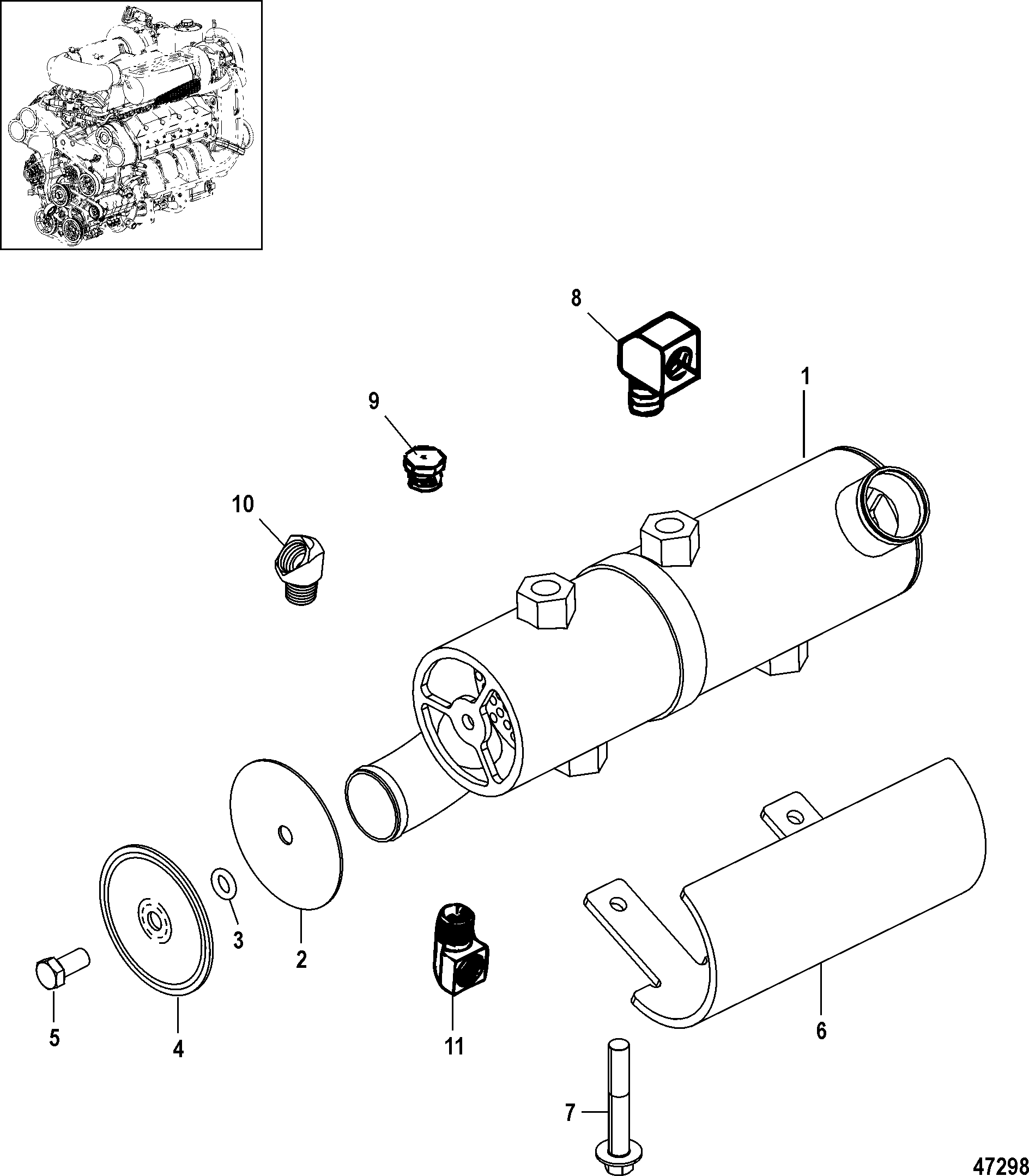

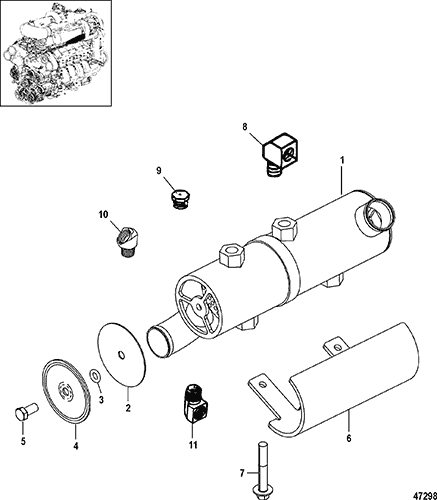

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0060059



COOLER, Power Steering 1
2 NSS



NOT SOLD SEPARATE, GASKET 2
This Part is not sold separately
3 NSS



NOT SOLD SEPARATE, O-RING 2   This Part is not sold separately
4 NSS



NOT SOLD SEPARATE, END CAP 2
This Part is not sold separately
5 10-98261



SCREW, (.375-16 x .750) 2
6 8M0025385



BRACKET, Power Steering Cooler 1
7 10-4010720



SCREW, (M8 x 20) 2
8 22-48246



ELBOW 1
9 22-32804



PLUG, (.500-14) 2
10 22-48872



FITTING, 45 Degree Elbow 1
11 22-63825



ELBOW 1
