Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

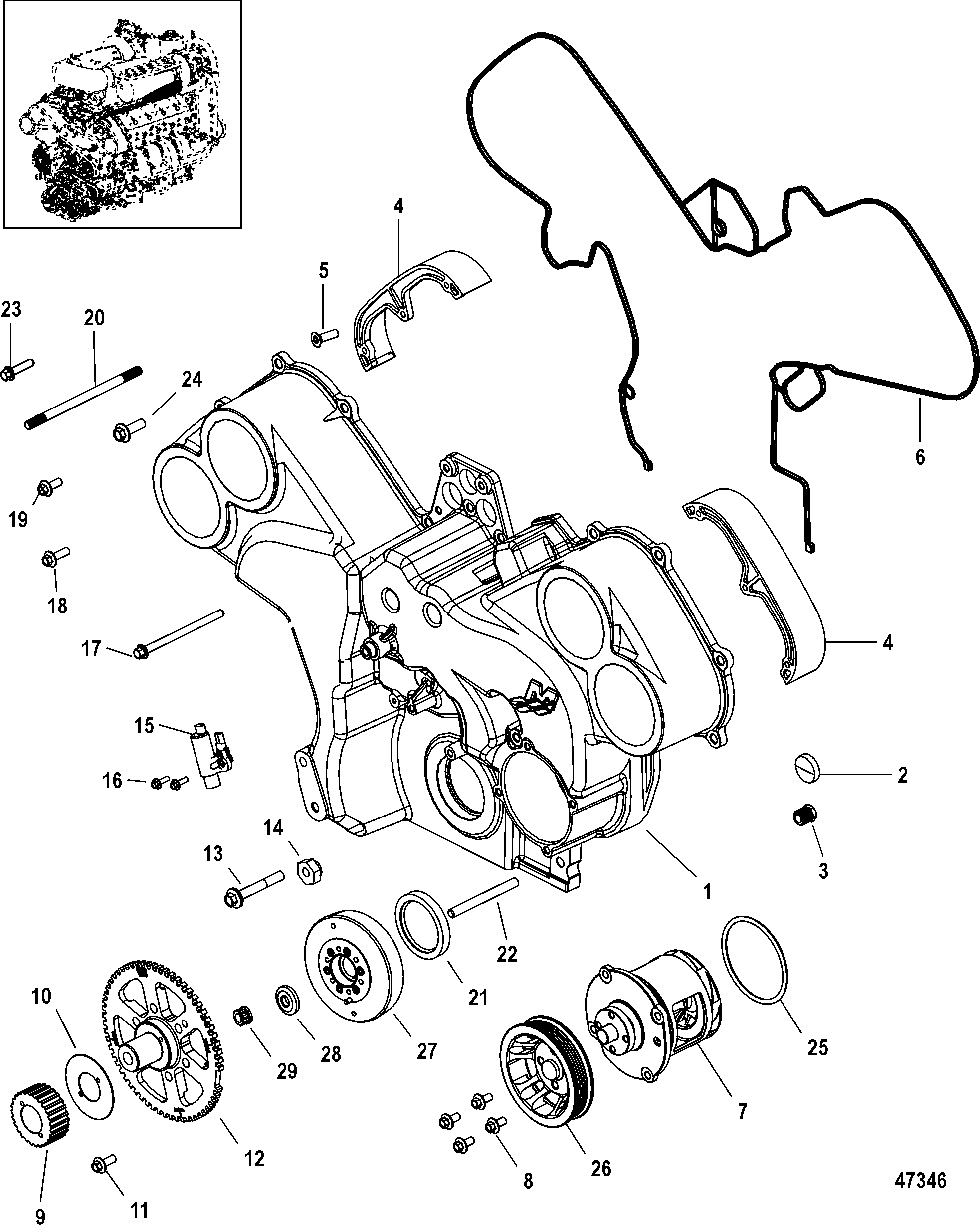

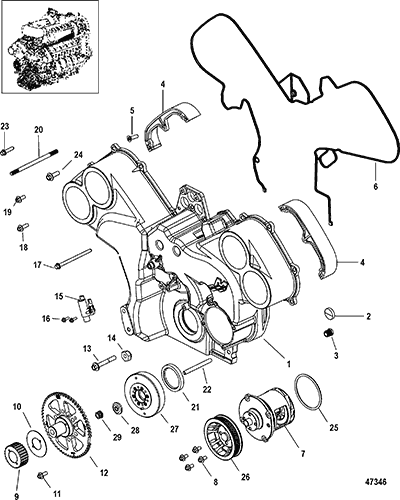

1 |
8M0071017 |
|
|
|
|
FRONT COVER ASSEMBLY |
1 |
8M0059630 |
|
2 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, PLUG |
1 |
|
This Part is not sold separately |
3 |
22-32803 |
|
|
|
|
PLUG, Pipe (.375-18) Brass |
1 |
|
|
4 |
8M0043932 |
|
|
|
|
SHOE |
1 |
|
|
5 |
10-8M0022382 |
|
|
|
|
SCREW , (M6 x 20) |
6 |
|
|
6 |
8M0000004 |
|
|
|
|
SEAL, Front Cover |
1 |
|
|
7 |
8M0061061 |
|
|
|
|
CIRCULATING PUMP |
1 |
|
|
8 |
10-4010720 |
|
|
|
|
SCREW, (M8 x 20) |
4 |
|
|
9 |
8M0035152 |
|
|
|
|
PULLEY, 26 Teeth, Oil Pump |
1 |
|
|
10 |
8M0045972 |
|
|
|
|
SEPARATOR |
1 |
|
|
11 |
10-88441435 |
|
|
|
|
SCREW (M10 x 35) |
6 |
|
|
12 |
8M0044778 |
|
|
|
|
WHEEL, Crank |
1 |
|
|
13 |
10-4010870 |
|
|
|
|
SCREW, (M10 x 70) Hex Flange - Stainless Steel |
1 |
|
|
14 |
8M0046016 |
|
|
|
|
ADJUSTER, Eccentric |
1 |
|
|
15 |
8283582 |
|
|
|
|
SENSOR |
1 |
|
|
16 |
10-4010516 |
|
|
|
|
SCREW, (M5 x 16) Stainless Steel |
2 |
|
|
17 |
10-885526120 |
|
|
|
|
SCREW, (M8 x 120) |
3 |
|
|
18 |
10-4010725 |
|
|
|
|
SCREW, (M8 x 25) |
11 |
|
|
19 |
10-4010720 |
|
|
|
|
SCREW, (M8 x 20) |
6 |
|
|
20 |
8M0022165 |
|
|
|
|
STUD, (M10 x 1.5 x 175) |
1 |
|
|
21 |
26-8219471 |
|
|
|
|
SEAL |
1 |
|
|
22 |
16-903501 |
|
|
|
|
STUD, (M10 x 100) |
1 |
|
|
23 |
10-88552635 |
|
|
|
|
SCREW, (M8 x 35 MM) |
AR |
|
|
24 |
10-4010830 |
|
|
|
|
SCREW, (M10 x 15) Hex Flange - Stainless Steel |
AR |
|
|
25 |
25-31534 |
|
|
|
|
O-RING |
1 |
|
|
26 |
8M0020893 |
|
|
|
|
PULLEY, Circulating Pump |
1 |
|
|
27 |
8M0065162 |
|
|
|
|
DAMPER, Fluid |
1 |
|
|
