SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing And Gear Assembly (III SSM)

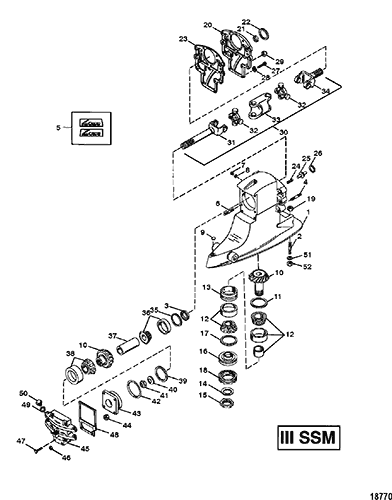

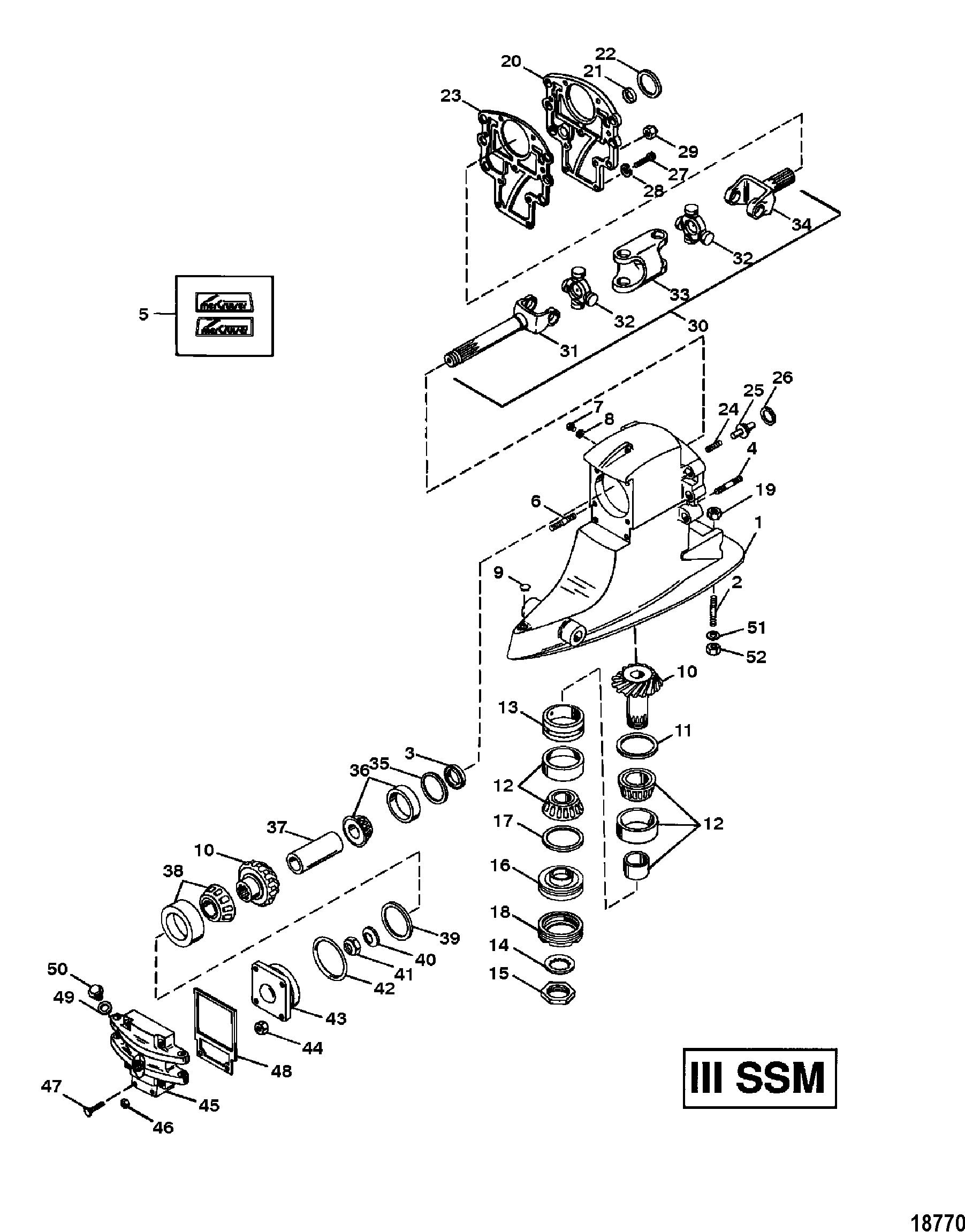

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1567-8942A1         HOUSING ASSEMBLY, Driveshaft 1   This Part is No Longer Available
2 16-57985         STUD (2.810) 6

3 26-38105         SEAL, Oil 1
1
4 16-57932         STUD, (.375-16/.375-24 x 1.750) 7

5 37-14489A90         DECAL SET 1 37-14489A87 1
6 16-57984         STUD, (.437-14/.437-20 x 2.380) 2

6 16-57983         STUD (.437-20 x 2.875) 2

7 10-79953Q04         SCREW, (.375-16 x .250) 1 10-79953
8 12-191833         WASHER, Fiber 1 12-19183
9 19-47579     700-21890   PLUG 1

10 43-813941A2         GEAR ASSEMBLY 1 43-47309A1 This Part is No Longer Available (PINION AND DRIVE) (1.00:1 RATIO)
10 43-813942A2         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (1.18:1 RATIO)
10 43-813944A2         GEAR SET 1 43-87825A1 This Part is No Longer Available (PINION AND DRIVE) (1.25:1 RATIO)
10 43-813940A2         GEAR SET 1 43-64973A2 This Part is No Longer Available (PINION AND DRIVE) (1.33:1 RATIO)
10 43-813945A2         GEAR SET 1 43-92849A1 This Part is No Longer Available (PINION AND DRIVE) (1.40:1 RATIO)
10 43-848152A1         GEAR SET 1 43-813943A2 This Part is No Longer Available (PINION AND DRIVE) (1.50:1 RATIO)
11 15-34800A1         SHIM SET AR

12 31-34804T4         BEARING ASSEMBLY, Tapered Roller 1 31-34804A4
13 23-47285         SPACER 1

14 12-47451         WASHER 1   This Part is No Longer Available
15 11-47449         NUT (Special) 1   This Part is No Longer Available 1
16 47303         ADAPTOR 1   This Part is No Longer Available
17 12-47289         WASHER 1   This Part is No Longer Available
18 47304         RETAINER 1

19 11-47302         NUT, (.562-18) Stainless Steel 1

19 11-34933   676-9-72004     NUT, (.437-20) Stainless Steel 1

20 58619A1         COVER ASSEMBLY (Front) 1   This Part is No Longer Available
21 26-48443         SEAL, Oil 1

22 25-26722     700-82240   O-RING 1

23 27-48407         GASKET 1

24 24-48442         SPRING 1

25 20-48219         CHECK VALVE 1

26 25-48452         QUAD RING 1

27 10-47658         SCREW, (.437-14 x 1.50) Stainless Steel (.437-14 x 1.500) 2

28 13-47659         LOCKWASHER, (.437) 2

29 11-826709113         NUT, (.375-24) 7 11-34863
30 44253A1         UNIVERSAL JOINT ASSEMBLY 1

31 44271         YOKE (Driven End) 1   This Part is No Longer Available
32 48153         CROSS AND BEARING ASSEMBLY 2
1
33 63575T         SOCKET 1 63575 This Part is No Longer Available
34 44253         YOKE (Driving End) 1   This Part is No Longer Available
35 15-36178A02         SHIM SET AR 15-36178A1
36 31-39908T1         BEARING ASSEBMLY, Tapered Roller 1 31-39908A1
37 8M0050924         SPACER 1 23-47305
38 31-34804T3         BEARING ASSEMBLY, Tapered Roller 1 31-34804A3
39 15-34822A1         SHIM SET AR

40 12-53212         WASHER 1
1
41 11-82671327         NUT (1.00-14) 1 11-90068T 1
42 25-47291         O-RING 1
1
43 47314         RETAINER 1   This Part is No Longer Available
44 11-35053         NUT, (.437-20) 4
1
45 951061         BRACKET, Cover Rear 1
This Part is No Longer Available
46 11-35053         NUT, (.437-20) 4
1
47 10-842787         SCREW, (.375-16 x 2.00) 2 10-47432
48 27-53058         GASKET 1
1
49 25-35126         O-RING, (.859 x .139) 1

50 22-320181         PLUG 1 22-32018
51 12-180451         WASHER 6 12-18045
52 11-47302         NUT, (.562-18) Stainless Steel 6

- 1567-8942A8         REBUILD KIT 1 1567-7608A40 This Part is No Longer Available
