SSM II-III-IV-V 1982-1995 - All Serials - Hydraulic Pump And Bracket (III-IV-V) (Prestolite)

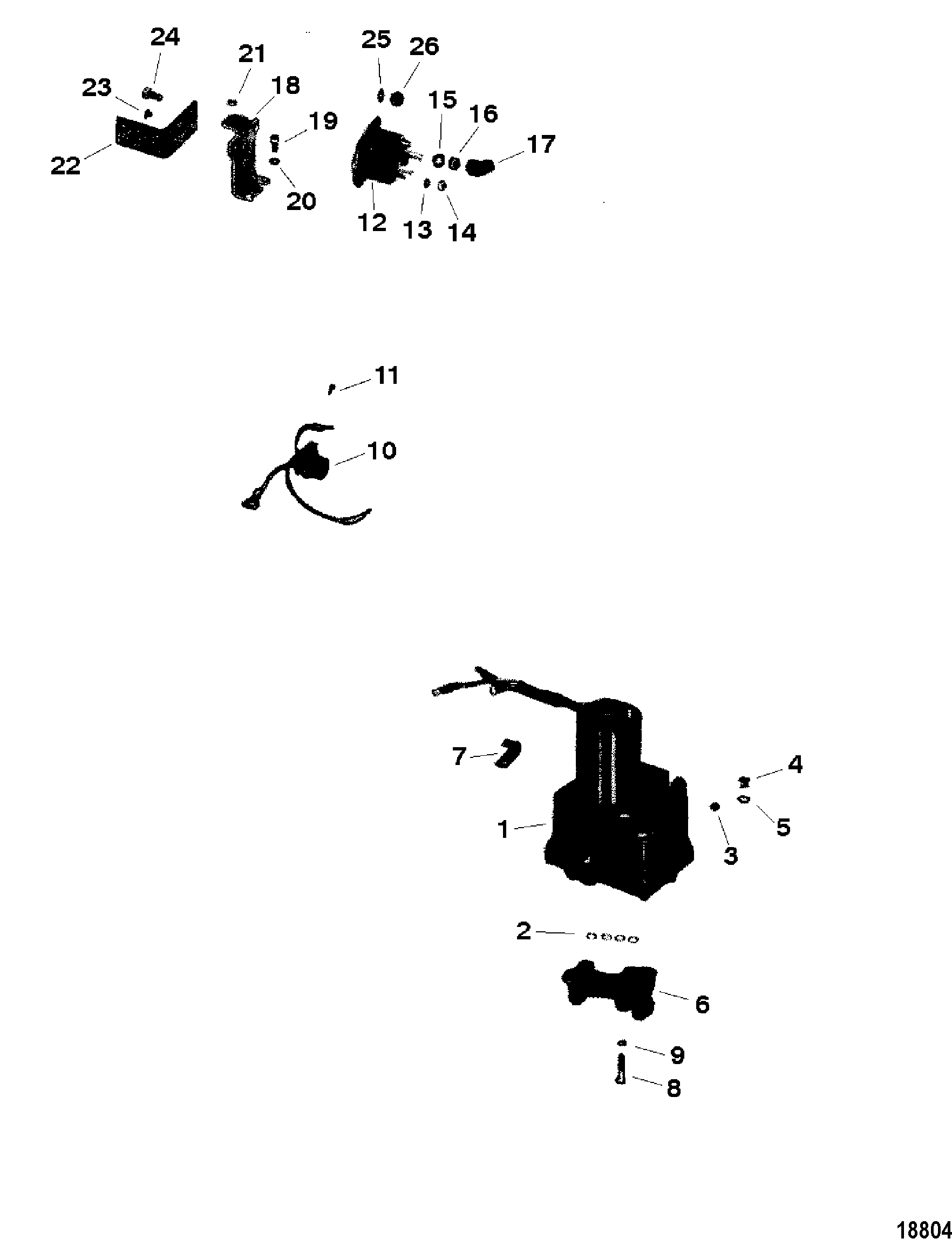

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Note 1: MERCRUISER SUPER SPEEDMASTER STERN DRIVES WERE ORIGINALLY SOLD WITH A PRESTOLITE TRIM PUMP. THIS PUMP IS NO LONGER AVAILABLE AND IS SUPERSEDED TO PART NUMBER 92975A28 WHICH IS AN OILDYNE PUMP THAT DOES NOT HAVE ENOUGH OUT/UP PRESSURE TO ALLOW TRIMMING THE DRIVE WHILE UNDERWAY. Note 2: THE CORRECT REPLACEMENT PUMP FOR THE MERCRUISER SUPER SPEED MASTER STERN DRIVES IS THE OILDYNE PUMP PART NUMBER 846859A 4 (REF TO HYDRAULIC PUMP AND BRACKETS (II-IV-V)(OILDYNE) - HYDRAULIC PUMP ASSEMBLY (III-IV-V)(OILDYNE). THIS IS ALSO A COMPLETE PUMP WITH SOLENOIDS AND MOUNTING BRACKET. REMOUNTING OF THE OILDYNE PUMP IN THE BOAT WILL BE REQUIRED BECAUSE OF THE MOUNTING BRACKET DIFFERENCES |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 92975A32 | 676-9-18210 | PUMP ASSEMBLY, Hydraulic, Hydraulic | 1 | 92975A6 | (See Note)(See Hydraulic Pump for Breakdown) | |||
| 2 | 25-48171 | 676-9-76550 | O-RING, (.364. x .070) | 4 | |||||
| 3 | 10-62269 | SCREW, (#10-32 x .437), Vent | 1 | This Part is No Longer Available | |||||
| 4 | 10-79953Q04 | SCREW, (.375-16 x .250), Filler | 1 | 10-79953 | |||||
| 5 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | ||||
| 6 | 90762A2 | VALVE ASSEMBLY, Control | 1 | This Part is No Longer Available (INCLUDES QTY 4 OF REF. NO. 2) | |||||
| 7 | 54-54457 | J CLIP | 1 | ||||||
| 8 | 10-21091 | SCREW (.250-28 x 1.125) | 4 | This Part is No Longer Available No longer made, limited availability | |||||
| 9 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 10 | 84-74023A1 | HARNESS ASSEMBLY | 1 | This Part is No Longer Available (WITHOUT FUSE) | |||||
| 10 | 84-79147A3 | HARNESS ASSEMBLY | 1 | (WITH FUSE) | |||||
| 11 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 12 | 89-853654A1 | 676-9-15111 | 700-72370 | SOLENOID, Starter | 2 | 89-68258A4 | |||
| 13 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | ||||||
| 14 | 11-20110 | NUT, (#10-32) | 4 | ||||||
| 15 | 12-22753 | WASHER | 4 | ||||||
| 16 | 11-26484 | NUT, (.312-18) | 4 | ||||||
| 17 | 46265 | BOOT (Rubber) | 3 | ||||||
| 18 | 74407T | BRACKET, Mounting | 1 | This Part is No Longer Available | |||||
| 19 | 10-48060 | SCREW, (.250-14 x .625) | 2 | This Part is No Longer Available | |||||
| 20 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 21 | 11-20110 | NUT, (#10-32) | 1 | ||||||
| 22 | 74406 | BRACKET | 1 | This Part is No Longer Available | |||||
| 23 | 269011 | BUMPER | 1 | 26901 | |||||
| 24 | 10-32417 | SCREW, (.250-28 x .625) | 2 | ||||||
| 24 | 10-60300 | SCREW, (.250-28 x .750) | 2 | ||||||
| 25 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 26 | 11-8267089 | NUT, (.250-28) | 4 | 11-20361 | |||||
