SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing And Gear Assembly (IV SSM)

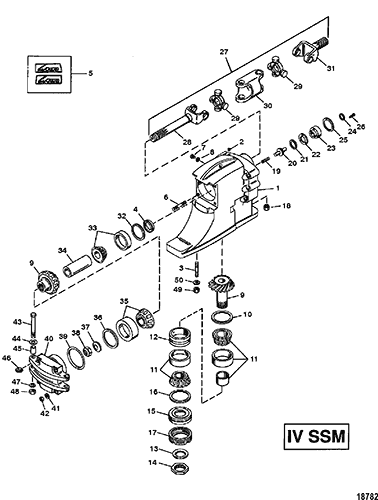

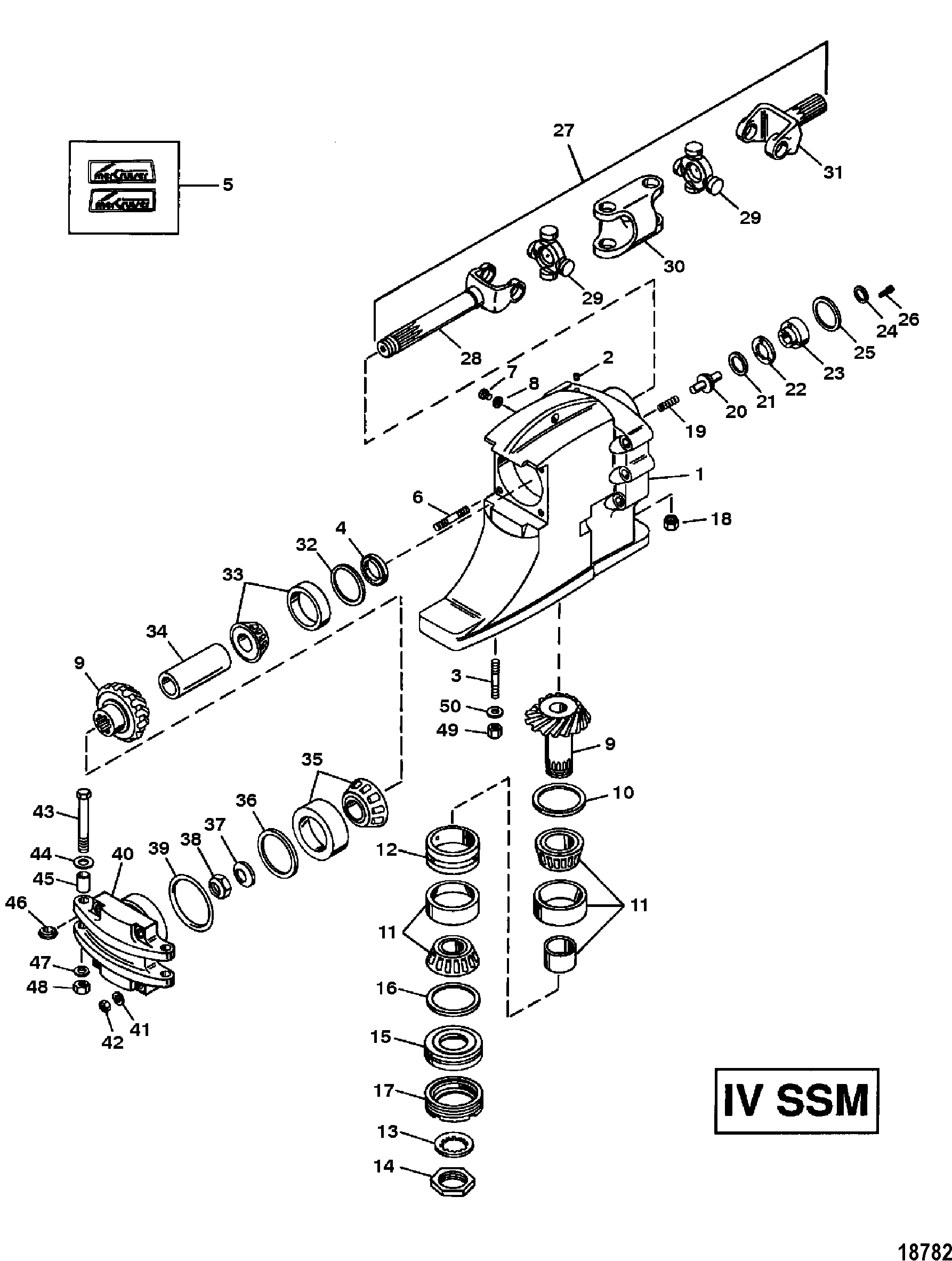

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3509-812421A2         HOUSING ASSEMBLY, Driveshaft 1   This Part is No Longer Available
2 22-56800         PLUG, Pipe (.0625-27) 1

3 16-57985         STUD (2.810) 6

4 26-38105         SEAL, Oil 1
1
5 37-14489A90         DECAL SET 1 37-14489A87 1
6 16-13208         STUD 4

7 22-8M0058389         SCREW, (.735-16), Vent (.375-16) (Magnetic) 1 10-14834
8 12-191833         WASHER, Fiber 1 12-19183
9 43-813803A3         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.00:1 RATIO)
9 43-813804A3         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.18:1 RATIO)
9 43-813806A3         GEAR SET (Pinion and Drive) 1 43-87825A2 This Part is No Longer Available (1.25:1 RATIO)
9 43-813802A3         GEAR SET (Pinion and Drive) 1 43-64973A3 This Part is No Longer Available (1.33:1 RATIO)
9 43-813807A3         GEAR SET (Pinion and Drive) 1 43-92849A2 This Part is No Longer Available (1.40:1 RATIO)
9 43-813805A3         GEAR SET (Pinion and Drive) 1 43-12407A1 This Part is No Longer Available (1.50:1 RATIO)
10 15-34800A1         SHIM SET AR

11 31-34804T4         BEARING ASSEMBLY, Tapered Roller 1 31-34804A4
12 23-47285         SPACER 1

13 12-47451         WASHER 1   This Part is No Longer Available
14 11-47449         NUT (Special) 1   This Part is No Longer Available 1
15 473031         ADAPTOR 1   This Part is No Longer Available
16 12-47289         WASHER 1   This Part is No Longer Available
17 47304         RETAINER 1

18 11-47302         NUT, (.562-18) Stainless Steel 1

19 24-48442         SPRING 1

20 20-48219         CHECK VALVE 1

21 25-48452         QUAD RING 1

22 27-669251         GASKET 1
1
23 12701A1         VALVE GUIDE ASSEMBLY 1   This Part is No Longer Available
24 26-66301         SEAL, Oil 1
1
25 25-33145
676-9-76547 700-82260   O-RING, (1.984 x .139) 1
1
26 10-56786         SCREW, (#8-32 x .750) 3

27 44253A1         UNIVERSAL JOINT ASSEMBLY 1

28 44271         YOKE (Driven End) 1   This Part is No Longer Available
29 48153         CROSS AND BEARING ASSEMBLY 2
1
30 63575T         SOCKET 1 63575 This Part is No Longer Available
31 44253         YOKE (Driving End) 1   This Part is No Longer Available
32 15-36178A02         SHIM SET AR 15-36178A1
33 31-39908T1         BEARING ASSEBMLY, Tapered Roller 1 31-39908A1
34 8M0050924         SPACER 1 23-47305
35 31-34804T3         BEARING ASSEMBLY, Tapered Roller 1 31-34804A3
36 15-34822A1         SHIM SET AR

37 12-53212         WASHER 1
1
38 11-82671327         NUT (1.00-14) 1 11-90068T 1
39 25-47291         O-RING 1
1
40 12702T         COVER (Rear) 1 12702 This Part is No Longer Available
41 12-540121         WASHER, (.530 x .880 x .104) 630 Stainless Steel 4

42 11-35000         NUT, (.500-20) 4 11-816670 1
43 10-677551         SCREW, (.500-20 x 4.500) 2

44 12-540121         WASHER, (.530 x .880 x .104) 630 Stainless Steel 2

45 23-85322         SPACER 2   This Part is No Longer Available
46 23-840229         SPACER 2 23-85321
47 12-24501         WASHER 2

48 11-35000         NUT, (.500-20) 2 11-816670
49 11-47302         NUT, (.562-18) Stainless Steel 6

50 12-180451         WASHER 6 12-18045
- 1567-8942A8         REBUILD KIT 1   This Part is No Longer Available
