SSM II-III-IV-V 1982-1995 - All Serials - Hydraulic Pump Assy (III-IV-V) (Prestolite)

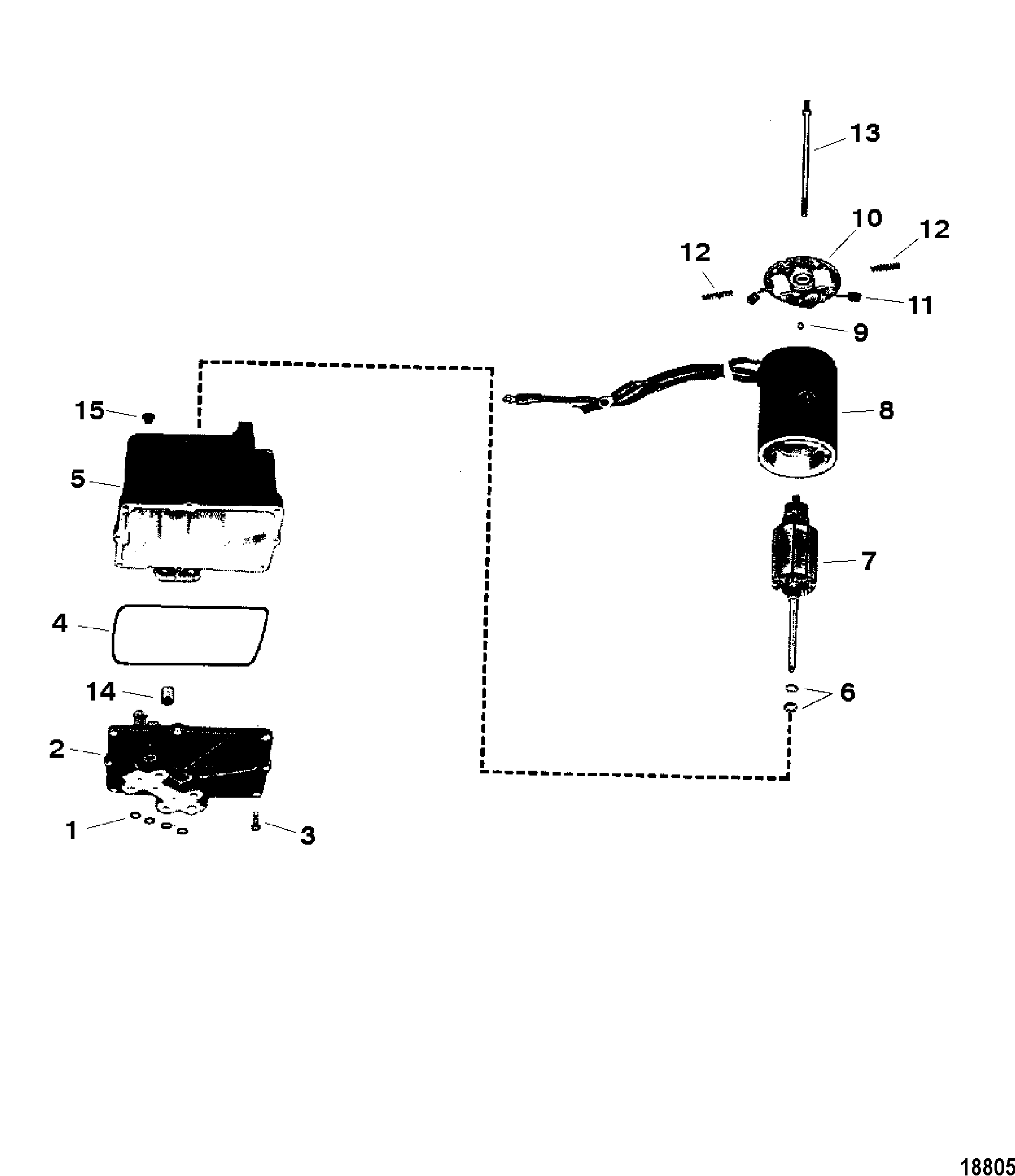

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Note 1: MERCRUISER SUPER SPEEDMASTER STERN DRIVES WERE ORIGINALLY SOLD WITH A PRESTOLITE TRIM PUMP. THIS PUMP IS NO LONGER AVAILABLE AND IS SUPERSEDED TO PART NUMBER 92975A28 WHICH IS AN OILDYNE PUMP THAT DOES NOT HAVE ENOUGH OUT/UP PRESSURE TO ALLOW TRIMMING THE DRIVE Note 2: THE CORRECT REPLACEMENT PUMP FOR THE MERCRUISER SUPER SPEED MASTER STERN DRIVES IS THE OILDYNE PUMP PART NUMBER 846859A 4 (REF TO HYDRAULIC PUMP AND BRACKETS (II-IV-V)(OILDYNE) - HYDRAULIC PUMP ASSEMBLY (III-IV-V)(OILDYNE). THIS IS ALSO A COMPLETE PUMP WITH SOLENOIDS AND MOUNTING |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 92975A32 | PUMP ASSEMBLY, Hydraulic, Hydraulic | 1 | 92975A6 | (SEE NOTE)(PRESTOLITE) | ||||
| 1 | 25-48171 | O-RING, (.364. x .070) | 4 | ||||||
| 2 | 92975A32 | VALVE BODY AND GEAR ASSEMBLY | 1 | 392-8317 | |||||
| 3 | 10-69570 | SCREW, (#10-16 x .750) | 8 | ||||||
| 4 | 392-7735 | SEAL | 1 | ||||||
| 5 | 392-7731 | RESEROVIR ASSEMBLY | 1 | ||||||
| 6 | 392-7732 | WASHER | AR | This Part is No Longer Available | |||||
| 7 | 392-7729 | ARMATURE | 1 | This Part is No Longer Available | |||||
| 8 | 392-8261 | FIELD AND FRAME ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 9 | 392-7730 | BALL, Thrust | 1 | This Part is No Longer Available | |||||
| 10 | 392-8262 | PLATE ASSEMBLY | 1 | ||||||
| 11 | 392-8989 | BRUSH SET | 1 | 392-2941 | |||||
| 12 | 392-2529 | SPRING SET | 1 | ||||||
| 13 | 392-7733 | BOLT SET | 1 | This Part is No Longer Available | |||||
| 14 | 392-7727 | COUPLER AND SHAFT | 1 | This Part is No Longer Available | |||||
| 15 | 392-7728 | FILL PLUG, Fill | 1 | This Part is No Longer Available | |||||
