SSM II-III-IV-V 1982-1995 - All Serials - Gimbal Ring And Steering Lever (III-IV-V) (1st Design)

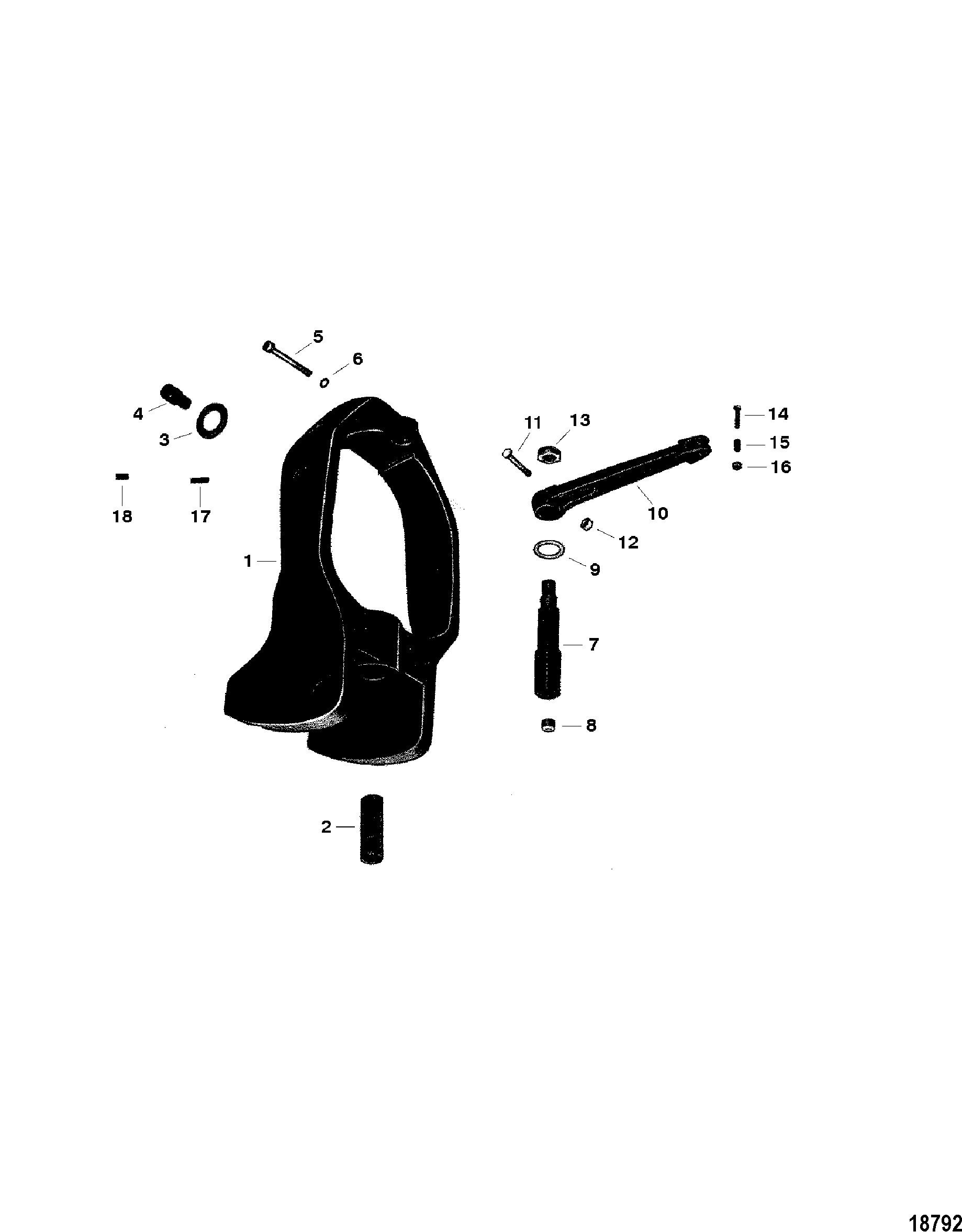

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 69111A1 | GIMBAL RING ASSEMBLY | 1 | This Part is No Longer Available (III & IV) (.875 DIA ANCHOR PINS) | |||||
| 1 | 69111T4 | GIMBAL RING ASSEMBLY | 1 | 69111A4 | This Part is No Longer Available (V) (1.00 DIA ANCHOR PINS) | ||||
| 2 | 23-814645 | BUSHING | 1 | ||||||
| 3 | 12-69109 | WASHER | 2 | no longer made, limited availability | |||||
| 4 | 69114T | PIN, Hinge | 2 | 69114 | |||||
| 5 | 10-47450 | SCREW, (.375-16 x 4.00) | 1 | ||||||
| 6 | 12-47538 | WASHER | 1 | ||||||
| 7 | 47645 | SHAFT | 1 | This Part is No Longer Available | |||||
| 8 | 22-47540 | PLUG, Pipe - Allen Head (.375-18) | 1 | ||||||
| 9 | 12-34858 | WASHER | 2 | ||||||
| 10 | 74163A1 | LEVER ASSEMBLY, Steering | 1 | This Part is No Longer Available | |||||
| 11 | 10-32515 | SCREW, (.437-20 x 2.50) | 1 | ||||||
| 12 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 1 | |||||
| 13 | 11-858869 | NUT, (.875-14) | 1 | 11-56041 | |||||
| 14 | 10-24644 | SCREW, (.250-28 x 1.38) | 1 | ||||||
| 15 | 23-47643 | BUSHING | 1 | ||||||
| 16 | 11-8267089 | NUT, (.250-28) | 1 | 11-20361 | |||||
| 17 | 10-69110 | SCREW, (.375-16 x .500), Set | 2 | ||||||
| 18 | 17-69113 | PIN, Locking | 4 |
