SSM II-III-IV-V 1982-1995 - All Serials - Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)

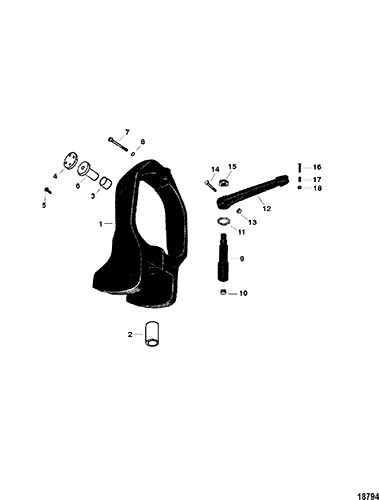

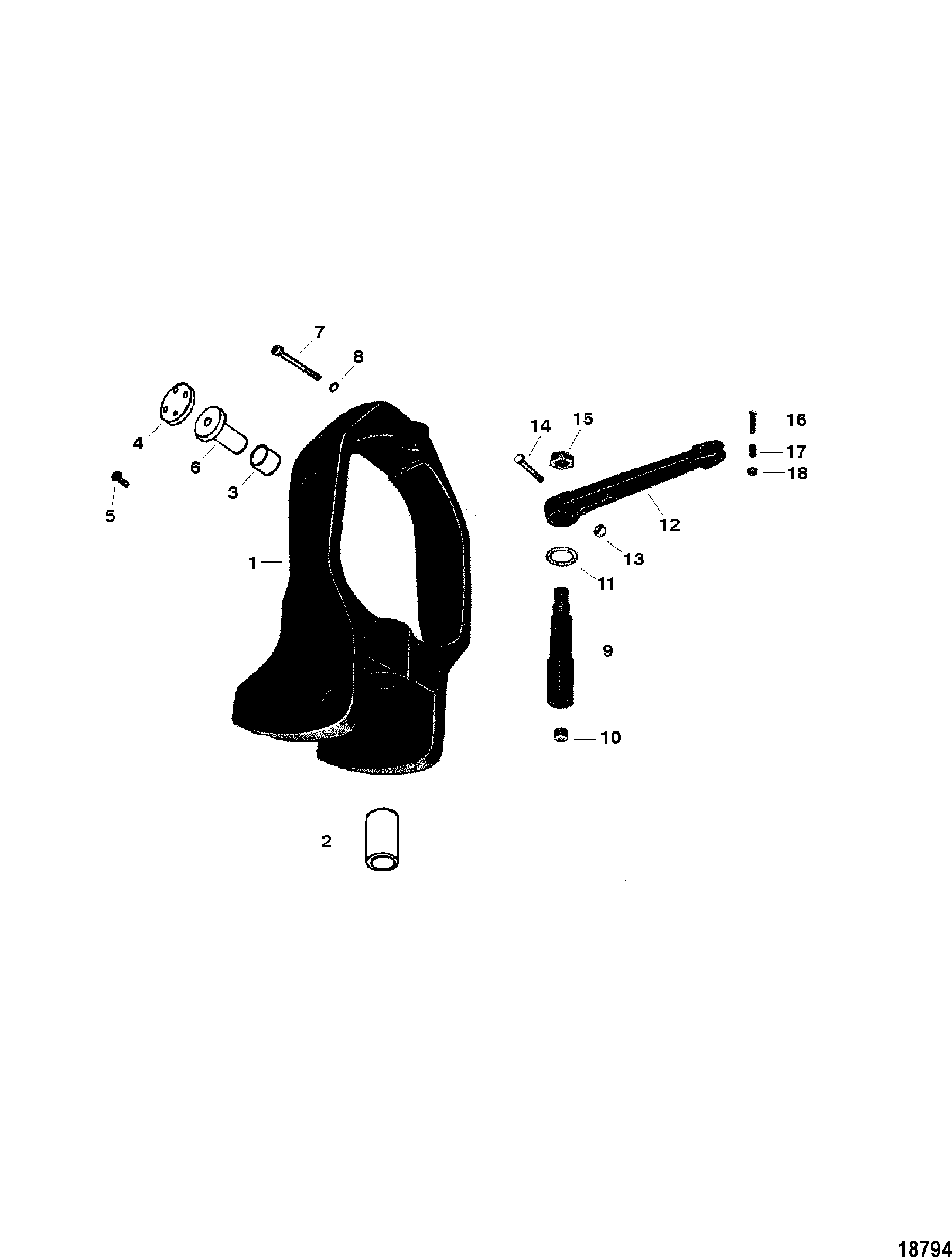

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 815233T3         GIMBAL RING ASSEMBLY 1 815233A3 (IIIA & V)
2 23-814645         BUSHING, Gimbal Ring Lower 1

3 23-814649         BEARING, Hinge Pin 2

4 814647         COVER, Hinge Pin 2

5 10-821579         SCREW, (#10-24 x .500) 8

6 814648         PIN, Hinge 2

7 10-47450         SCREW, (.375-16 x 4.00) 1

8 12-47538         WASHER 1

9 47645         SHAFT, Upper Swivel 1   This Part is No Longer Available
10 22-47540         PLUG, Pipe - Allen Head (.375-18) 1

11 12-34858         WASHER 2

12 74163A1         LEVER ASSEMBLY, Steering 1   This Part is No Longer Available
13 11-34933   676-9-72004     NUT (.437-20) 1 11-33962
14 10-32515         SCREW, (.437-20 x 2.50) 1

15 11-858869         NUT, (.875-14) 1 11-56041
16 10-24644         SCREW, (.250-28 x 1.38) 1

17 23-47643         BUSHING 1

18 11-8267089         NUT, (.250-28) 1 11-20361
