SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing And Gear Assy (Alpha One-Ss)

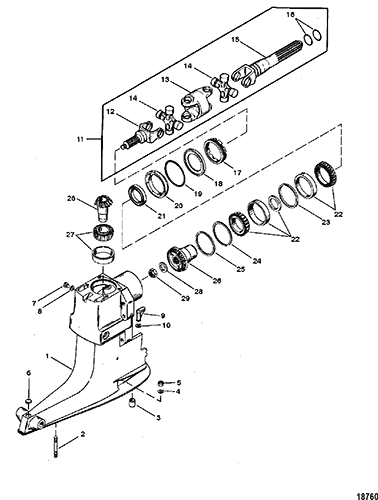

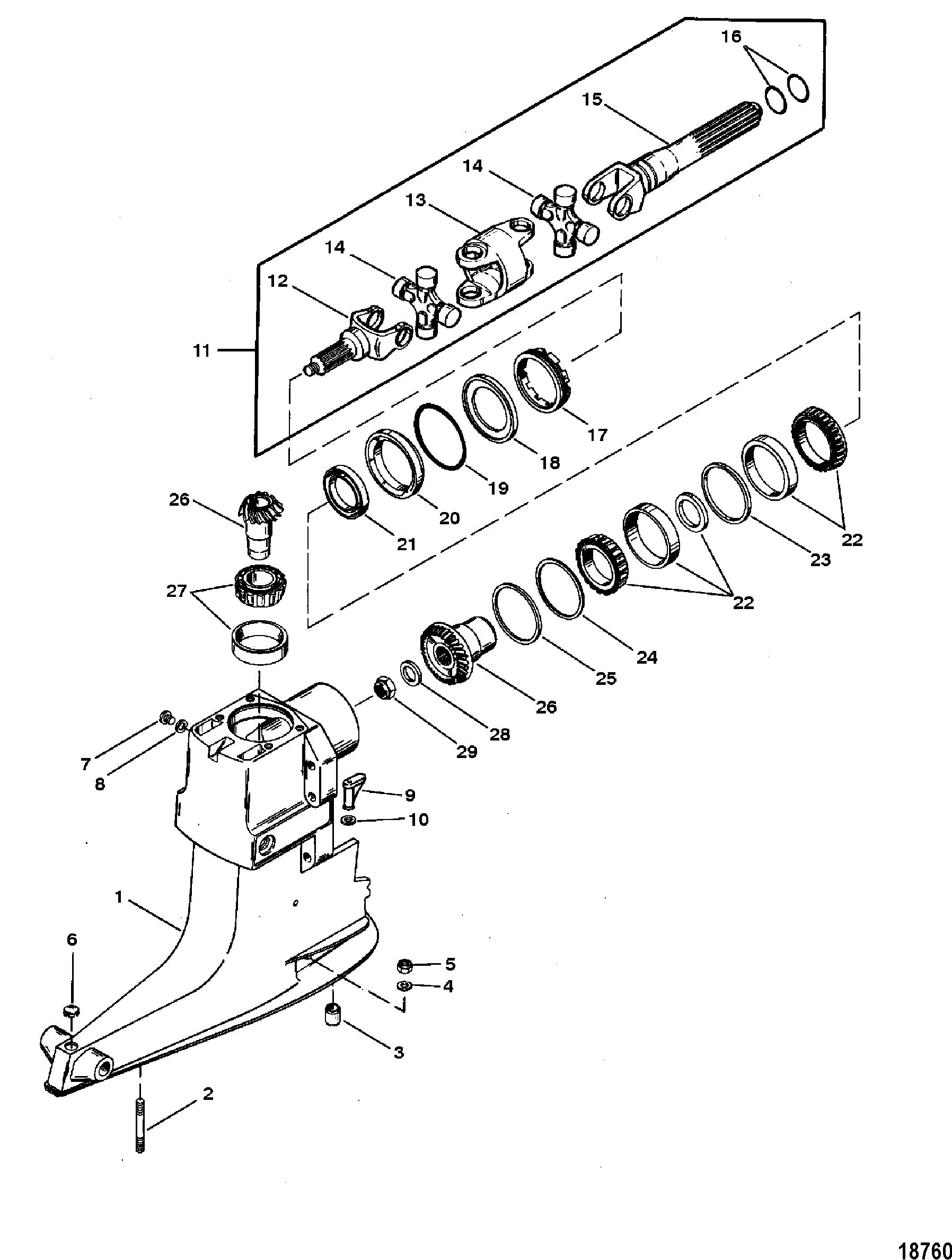

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3500-9552A5 | HOUSING ASSEMBLY, Driveshaft | 1 | This Part is No Longer Available | |||||
| 2 | 16-56295 | STUD, (.437 x 2.69) | 2 | ||||||
| 3 | 23-812846 | BUSHING | 1 | This Part is No Longer Available | |||||
| 4 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 5 | 11-859116 | NUT, (.4375-20) | 2 | 11-134391 | |||||
| 6 | 19-47579 | 700-21890 | PLUG | 1 | |||||
| 7 | 10-79953Q04 | SCREW, (.375-16 x .250) | 1 | 10-79953 | |||||
| 8 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | 1 | ||||
| 9 | 12625 | SHIFTER | 1 | ||||||
| 10 | 53-12626 | RING, Retaining | 1 | ||||||
| 11 | 814819A2 | UNIVERSAL JOINT | 1 | 59830A5 | |||||
| 12 | 46020T02 | YOKE, Gear End | 1 | 46020T | |||||
| 13 | 393831 | SOCKET, Center | 1 | 39383T | |||||
| 14 | 75832T1 | 700-28030 | CROSS AND BEARING | 2 | 75832A3 | ||||
| 15 | 59830A7 | YOKE ASSEMBLY (Coupling End) | 1 | 59830A1 | |||||
| 16 | 25-25439 | O-RING, (.862 x .103) | 2 | ||||||
| 17 | 8168112 | RETAINER | 1 | 66071 | |||||
| 18 | 35983 | RING | 1 | ||||||
| 19 | 25-70937 | 676-9-76551 | 700-82380 | O-RING | 1 | 1 | |||
| 20 | 66081A2 | CARRIER ASSEMBLY | 1 | ||||||
| 21 | 26-823894 | SEAL, Oil | 1 | 26-68493 | |||||
| 22 | 31-35988A9 | BEARING ASSEMBLY | 1 | (1.50:1 RATIO)(STEP SHOULDER GEAR) | |||||
| 22 | 31-35988A12 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-35988A2 | (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR) | ||||
| 22 | 31-35988A3 | BEARING ASSEMBLY, Tapered Roller | 1 | (1.32:1 RATIO) | |||||
| 23 | 23-66824 | SPACER | 1 | (1.50:1 RATIO)(STEP SHOULDER GEAR) | |||||
| 23 | 23-35985 | SPACER | 1 | (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR) | |||||
| 23 | 23-66824 | SPACER | 1 | (1.32:1 RATIO) | |||||
| 24 | 15-35980A1 | 700-23280 | SHIM SET | AR | |||||
| 25 | 15-71013 | 700-28380 | SHIM, Spacer | 1 | |||||
| 26 | 43-18411A4 | GEAR SET (Pinion and Drive) | 1 | 43-18410A4 | (1.50:1 RATIO) (20-22 GEAR RATIO) | ||||
| 26 | 43-66773A3 | GEAR SET (Pinion and Drive) | 1 | (1.32:1 RATIO) (16-20 GEAR RATIO) | |||||
| 27 | 31-32573A1 | BEARING ASSEMBLY, Roller | 1 | (1.50:1 RATIO) | |||||
| 27 | 31-66818A1 | BEARING ASSEMBLY, Tapered Roller | 1 | (1.32:1 RATIO) | |||||
| 28 | 12-45810 | 676-9-78107 | 700-28330 | WASHER | 1 | ||||
| 29 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | ||||
| - | 26-32511A1 | SEAL KIT | 1 |
