| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

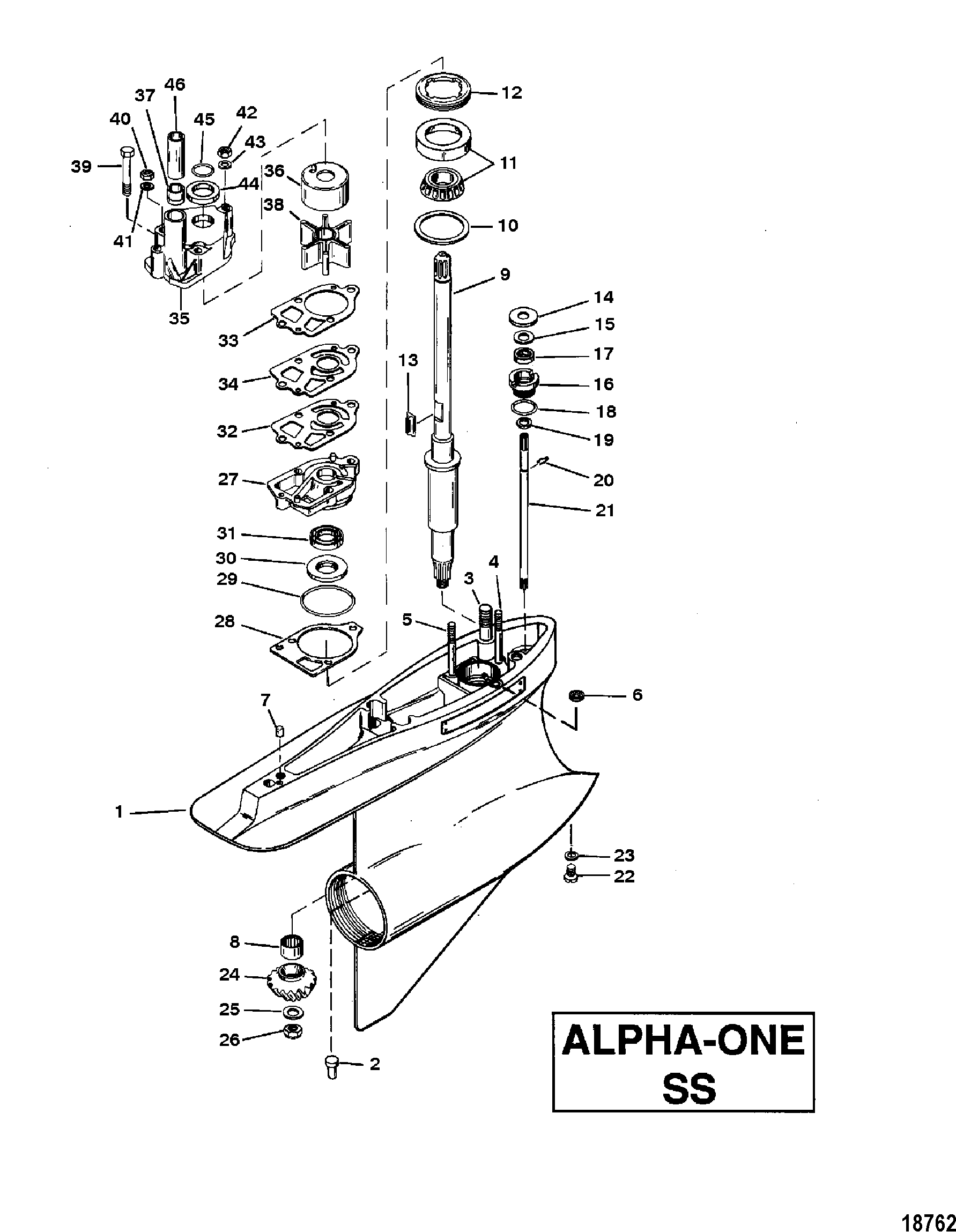

| 1 |
1647-9559T5 |
|
|
|
|
GEAR HOUSING ASSEMBLY (BASIC) |
1 |
1647-9559A5 |
This Part is No Longer Available |
| 2 |
17-379721 |
|
|
|
|
PIN |
1 |
|
|
| 3 |
16-56298 |
|
|
|
|
STUD (.437-14 x 1.970) |
2 |
|
|
| 4 |
16-56297 |
|
|
|
|
STUD, (.312 x 3.38) |
1 |
|
No longer made, limited availability |
| 5 |
16-30667 |
|
676-9-78143 |
|
|
STUD, (.250-20/.250-28 x 3.125) |
2 |
|
|
| 6 |
26-455771 |
|
|
|
525-26-455771 |
SEAL |
1 |
26-45577 |
1 |
| 7 |
17-43044 |
|
|
|
|
PIN, Dowel |
2 |
17-20033 |
|
| 8 |
31-42647A1 |
|
676-9-75121 |
700-21610 |
|
BEARING ASSEMBLY, Roller |
1 |
|
|
| 9 |
45-12618 |
|
|
|
|
DRIVESHAFT |
1 |
|
This Part is No Longer Available |
| 10 |
15-8M0063267 |
|
|
|
|
SHIM SET |
AR |
15-42637A1 |
|
| 11 |
31-36387A1 |
|
676-9-75107 |
700-21580 |
|
BEARING, Roller |
1 |
|
|
| 12 |
8245191 |
|
676-9-78126 |
|
|
NUT |
1 |
11-42633 |
|
| 13 |
8M0032834 |
|
|
|
|
KEY |
1 |
28-56654 |
|
| 14 |
12-29395 |
|
676-9-78137 |
700-21800 |
|
WASHER, (.390 x 1.00 x .06) |
1 |
|
|
| 15 |
12-31266 |
|
|
700-30010 |
|
WASHER (Rubber) |
1 |
|
1 |
| 16 |
23-30617A2 |
|
676-9-76133 |
700-21010 |
|
BUSHING ASSEMBLY |
1 |
|
1 |
| 17 |
26-892361 |
|
|
|
|
SEAL, Oil |
1 |
26-89236 |
|
| 18 |
25-25439 |
|
|
|
|
O-RING, (.862 x .103) |
1 |
|
1 |
| 19 |
12-27880 |
|
|
|
|
WASHER |
1 |
|
|
| 20 |
53-29641 |
|
|
700-21136 |
|
CLIP, Cotter |
1 |
18-20233 |
|
| 21 |
15099 |
|
|
|
|
SHAFT, Shift |
1 |
|
This Part is No Longer Available |
| 22 |
22-8M0058389 |
|
|
|
|
SCREW, (.735-16), Fill/Drain (Magnetic) |
1 |
10-14834 |
|
| 23 |
12-191833 |
|
|
|
|
WASHER, Fiber |
1 |
12-19183 |
1 |
| 24 |
43-878087A4 |
|
|
|
|
GEAR SET |
1 |
43-17064A3 |
(INCLUDES PINION & FORWARD GEARS) |
| 25 |
12-92721 |
|
676-9-78108 |
700-32800 |
|
WASHER |
1 |
|
|
| 26 |
11-35921 |
|
676-9-78103 |
700-11190 |
|
NUT, (.625-18) |
1 |
|
|
| 27 |
46-44292A3 |
|
|
|
|
BASE ASSEMBLY, Water Pump |
1 |
|
|
| 28 |
27-426311 |
|
|
|
|
GASKET |
1 |
|
1 |
| 29 |
25-896523 |
|
|
|
|
O-RING, (2.175 x .175) |
AR |
25-90011 |
1 |
| 29 |
25-38099 |
|
|
|
|
O-RING (.139 x 2.109 ID) |
AR |
|
1 |
| 30 |
26-89238 |
|
|
|
|
SEAL, Oil |
1 |
|
1 |
| 31 |
26-16977 |
|
|
|
|
SEAL, Oil |
1 |
|
1 |
| 32 |
27-18051 |
|
|
|
|
GASKET (Lower) |
1 |
|
|
| 33 |
27-858524 |
|
|
|
|
GASKET (Upper) |
1 |
27-856091 |
1 |
| 34 |
324351 |
|
|
|
|
FACE PLATE |
1 |
32435 |
|
| 35 |
46-96148T1 |
|
|
|
|
BODY ASSEMBLY, Water Pump |
1 |
46-96148A1 |
|
| 36 |
48752T |
|
|
|
|
INSERT |
1 |
48752 |
|
| 37 |
26-38970 |
|
|
|
|
SEAL (Rubber) |
1 |
|
|
| 38 |
47-89984T4 |
|
|
|
|
IMPELLER |
1 |
47-89984 |
|
| 39 |
10-96411 |
|
|
|
|
SCREW, (#14-8 x 2.25) |
1 |
|
|
| 40 |
11-8267119 |
|
|
|
|
NUT, (.250-28) |
2 |
11-13438 |
|
| 41 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 42 |
11-13436 |
|
|
|
|
NUT (.324-24) |
1 |
|
|
| 43 |
12-36001 |
|
|
|
|
WASHER |
1 |
|
|
| 44 |
25-30271 |
|
|
|
|
RING, Rubber (Rubber) |
1 |
|
|
| 45 |
25-30613 |
|
|
|
|
O-RING |
1 |
|
1 |
| 46 |
23-13235 |
|
|
|
|
SLEEVE |
1 |
|
|
| - |
26-33144A2 |
|
|
|
|
SEAL KIT |
1 |
|
|
