SSM II-III-IV-V 1982-1995 - All Serials - Transom Plate (III-IIIa-IV-V)

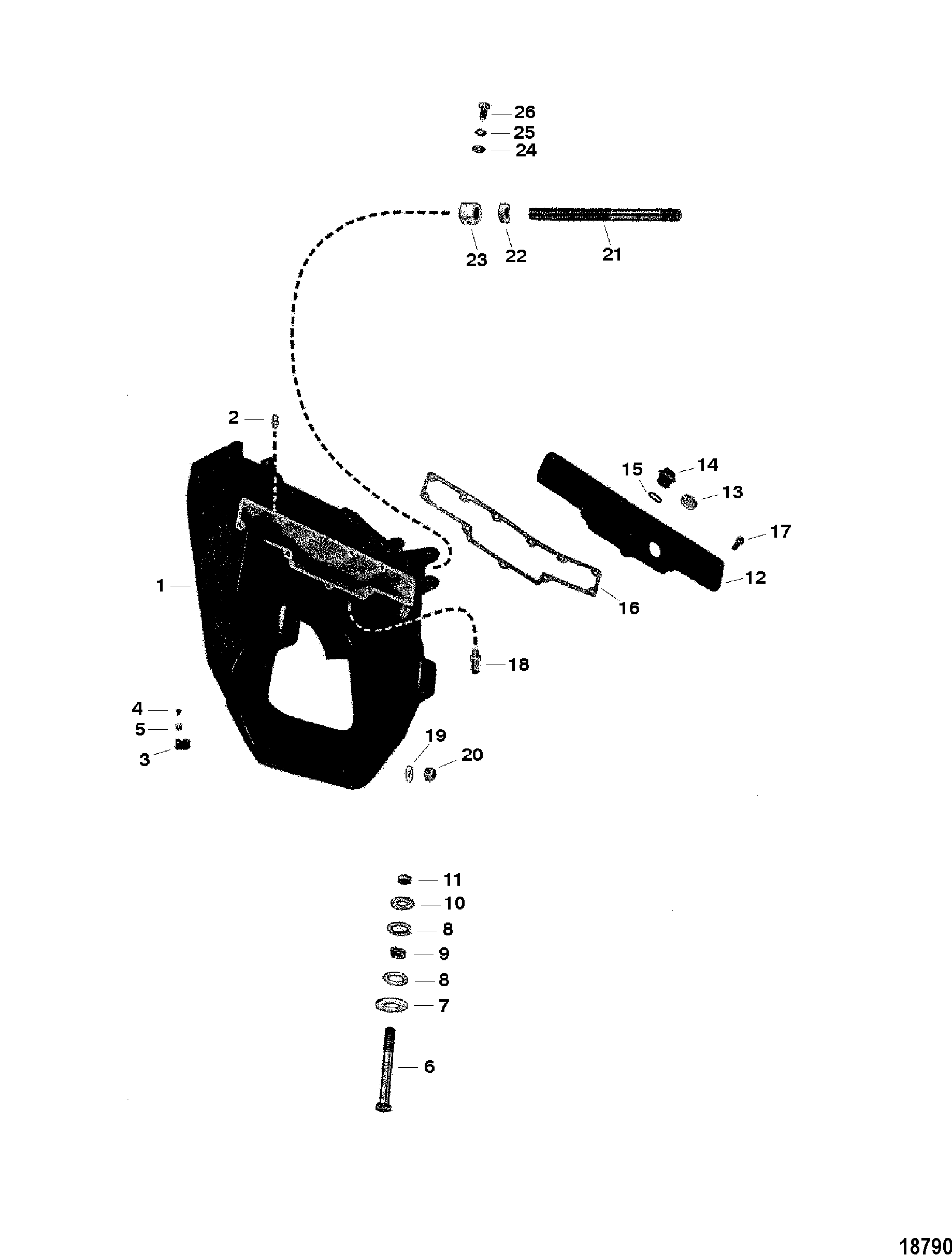

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 55498T | PLATE, Transom | 1 | 55498 | This Part is No Longer Available | ||||
| 2 | 22-47902 | FITTING | 1 | ||||||
| 3 | 54-26550 | CLAMP | 3 | ||||||
| 4 | 10-62568 | SCREW, (#10-16 x .375) | 3 | ||||||
| 5 | 69205 | C WASHER | 3 | ||||||
| 6 | 10-47467 | SCREW, (.625-18 x 5.500) | 2 | ||||||
| 7 | 12-47475 | WASHER, (1.120 x 2.250 x .19) | 2 | ||||||
| 8 | 12-47466 | WASHER, (1.125 x 1.750 x .16) (Fiber) | 4 | ||||||
| 9 | 13-34846 | LOCKWASHER, Thackeray Spring (.636) | 2 | ||||||
| 10 | 12-33171 | WASHER, (.6406 x 1.750 x .125) | 2 | ||||||
| 11 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 2 | ||||
| 12 | 47337A1 | COVER ASSEMBLY | 1 | ||||||
| 13 | 48992 | INDICATOR, Oil Level | 1 | ||||||
| 14 | 22-320181 | PLUG | 1 | 22-32018 | |||||
| 15 | 25-35126 | O-RING, (.859 x .139) | 1 | ||||||
| 16 | 27-475341 | GASKET | 1 | ||||||
| 17 | 10-90073 | SCREW, (.312-18 x 1.00) Stainless Steel | 11 | ||||||
| 18 | 22-47841 | FITTING, (.375-18 x .500 ), Oil Hose | 1 | ||||||
| 19 | 12-34876 | WASHER | 8 | ||||||
| 20 | 11-35000 | NUT, (.500-20) | 8 | 11-816670 | |||||
| 21 | 32-47439 | TUBE, Cable Guide | 1 | This Part is No Longer Available | |||||
| 22 | 11-37984 | NUT, (.875-14) (Special) | 1 | ||||||
| 23 | 35221 | RING, Swivel | 1 | ||||||
| 24 | 12-47533 | WASHER, Thermostat | 2 | ||||||
| 25 | 10-31832 | BOLT, (.500-20 x 1.00) | 2 | ||||||
| 26 | 13-31848 | LOCKWASHER, (.500) (.500) | 2 |
