SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (II SSM)

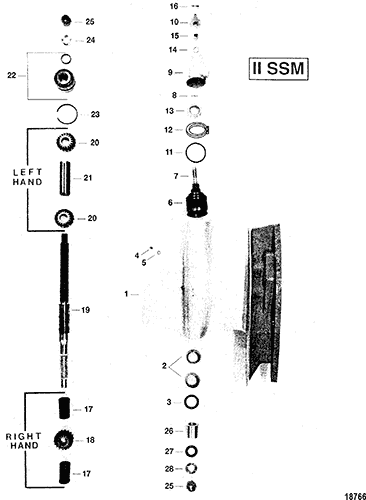

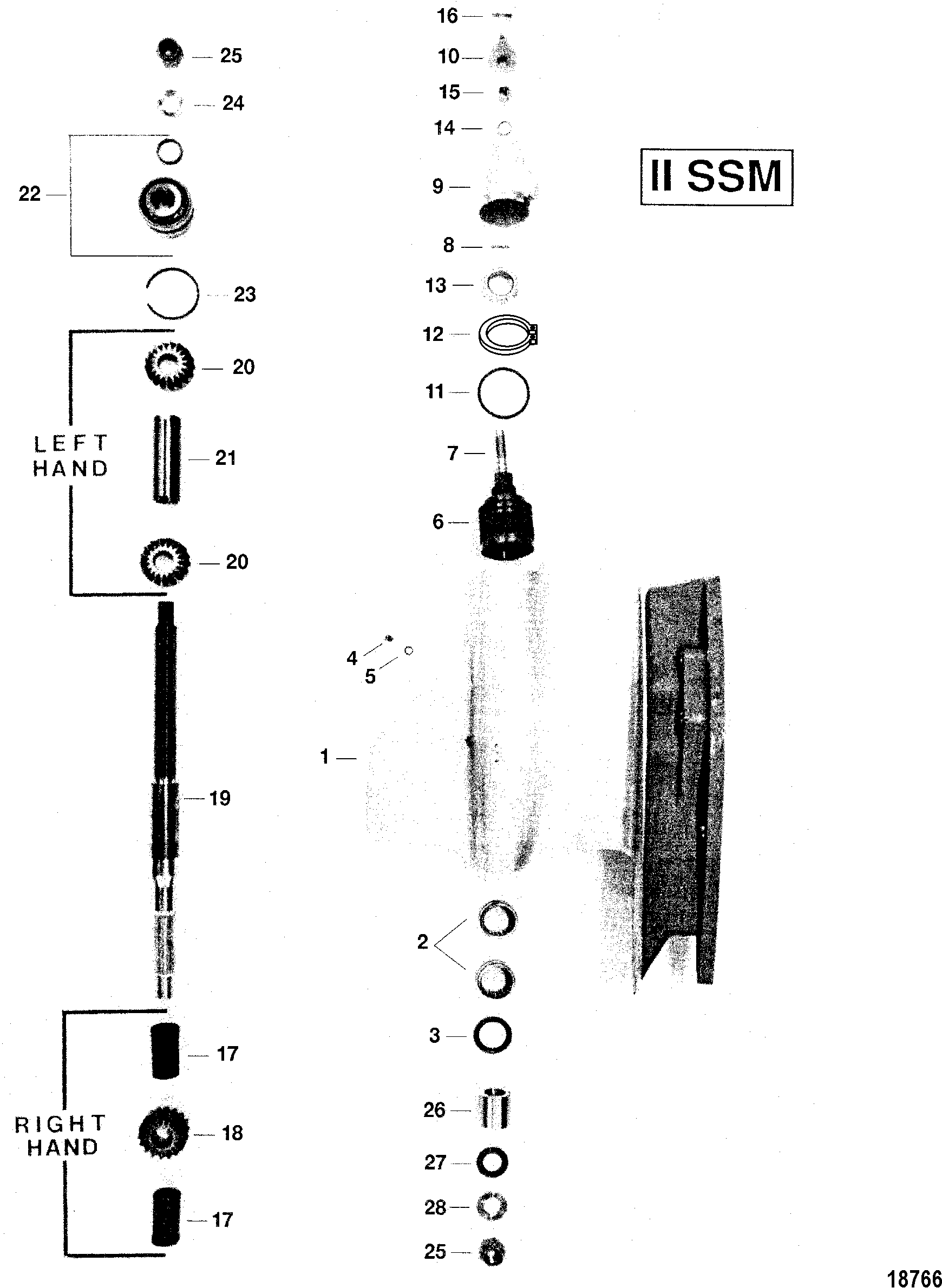

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1633-5455A5         GEAR HOUSING ASSEMBLY (BASIC) 1   This Part is No Longer Available
2 31-39832T         BEARING, Roller 2 31-39832
3 26-19473         SEAL, Oil 3
1
4 10-79953Q04         SCREW, (.375-16 x .250) 1 10-79953
5 12-191833         WASHER, Fiber 1 12-19183
6 68067         SUPPORT, Bearing 1   This Part is No Longer Available
7 16-97156         STUD 1   This Part is No Longer Available
8 17-58998         PIN, Roll 1

9 97155         NOSE CONE 1   This Part is No Longer Available
10 980361         CAP, Nose Cone 1   This Part is No Longer Available
11 25-68068         O-RING 2   This Part is No Longer Available 1
12 68069         LOCK RING 1   This Part is No Longer Available
13 11-68519         NUT 1   This Part is No Longer Available
14 23-49539         BUSHING 1   This Part is No Longer Available 1
15 11-47379         NUT, (.625-18) Stainless Steel 1
1
16 65700         PLUG, Nose Cone Screw 1
1
17 68065         SPACER (Short) 2   This Part is No Longer Available
18 43-68066A1         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (RH - 1.00:1 RATIO)
18 43-95041A1         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (RH - 1.125:1 RATIO)
19 44-96985         PROPELLER SHAFT 1   This Part is No Longer Available
20 43-68060A2         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (LH - 1.00:1 RATIO)
20 43-95040A2         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (LH - 1.125:1 RATIO)
21 68061         SPACER (Long) 1   This Part is No Longer Available
22 31-70838A2         BEARING ASSEMBLY 1   This Part is No Longer Available
23 53-68063108         RING, Snap AR   This Part is No Longer Available (.108 THICK)
23 53-68063109         RING, Snap AR
(.109 THICK)
23 53-68063110         RING, Snap AR
(.110 THICK) No longer made, limited availability
23 53-68063111         RING, Snap AR
(.111 THICK) No longer made, limited availability
23 53-68063112         RING, Snap AR
(.112 THICK)
23 53-68063113         RING, Snap AR   This Part is No Longer Available (.113 THICK)
23 53-68063114         RING, Snap AR
(.114 THICK)
23 53-68063115         RING, Snap AR
(.115 THICK) No longer made, limited availability
23 53-68063116         RING, Snap AR
(.116 THICK) No longer made, limited availability
23 53-68063117         RING, Snap AR
(.117 THICK)
23 53-68063118         RING, Snap AR
(.118 THICK) No longer made, limited availability
24 12-68064         WASHER 1
1
25 11-82671127         NUT (1.00-14) 2 11-39907 1
26 23-87753T         SPACER AR 23-87753 This Part is No Longer Available
27 12-39820         WASHER, Splined 1
1
28 12-39817         WASHER, Special - Stainless Steel 1
1
- 1633-5455T13         REBUILD KIT 1 1633-5455A13 This Part is No Longer Available
